Falcon_F_XX-V_Thumbpiece_Lever_Trim_Surface_Vertical_Only_Metal_Door_Template_108561

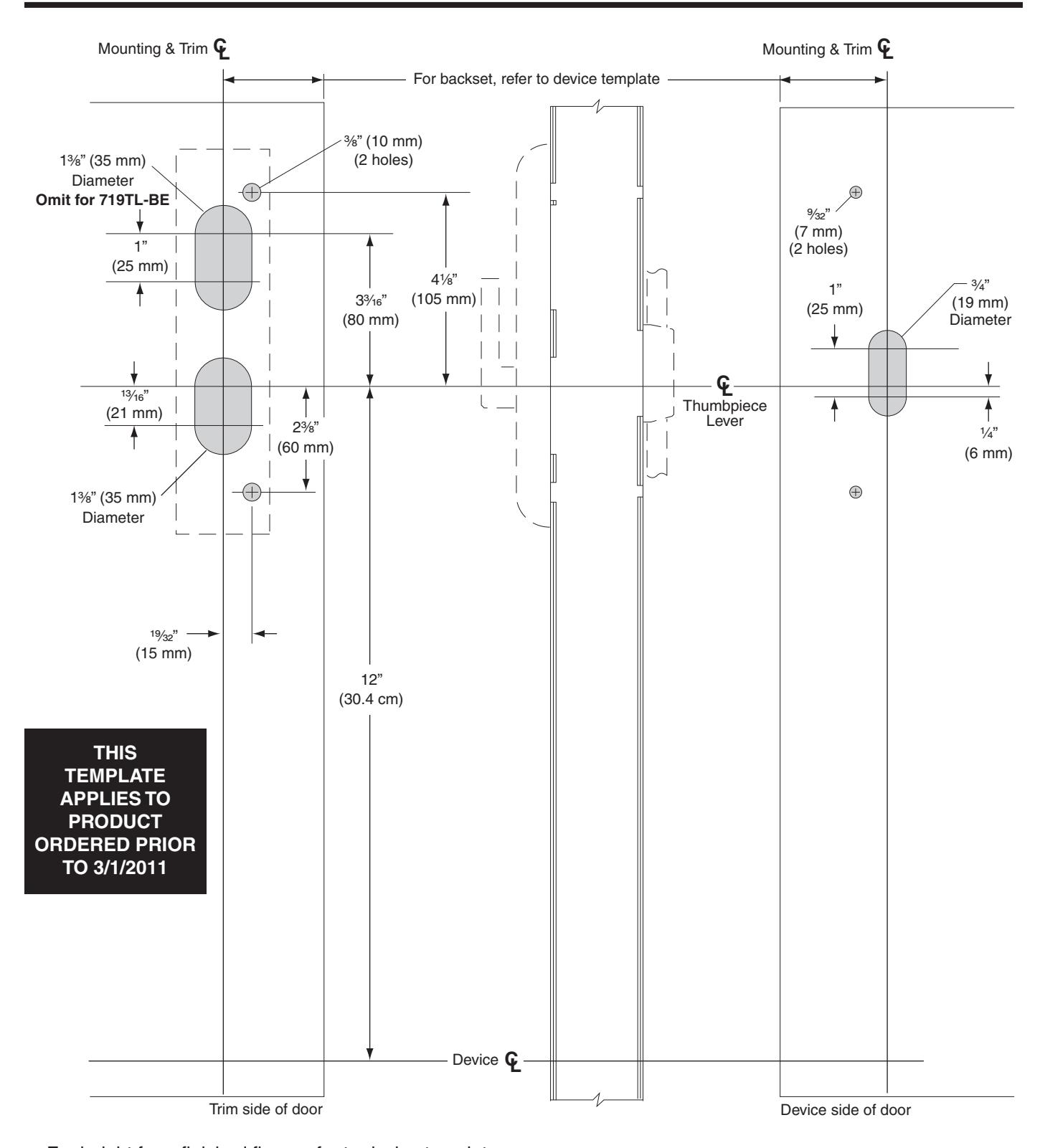

(F)XX-V Thumbpiece Lever Trim (for Surface Vertical Device only)

719TL, 719TL-BE Trim, Metal Door, LHR Shown, RHR Opposite

• For height from finished floor, refer to device template.

TEMPLATE T-2423-b
