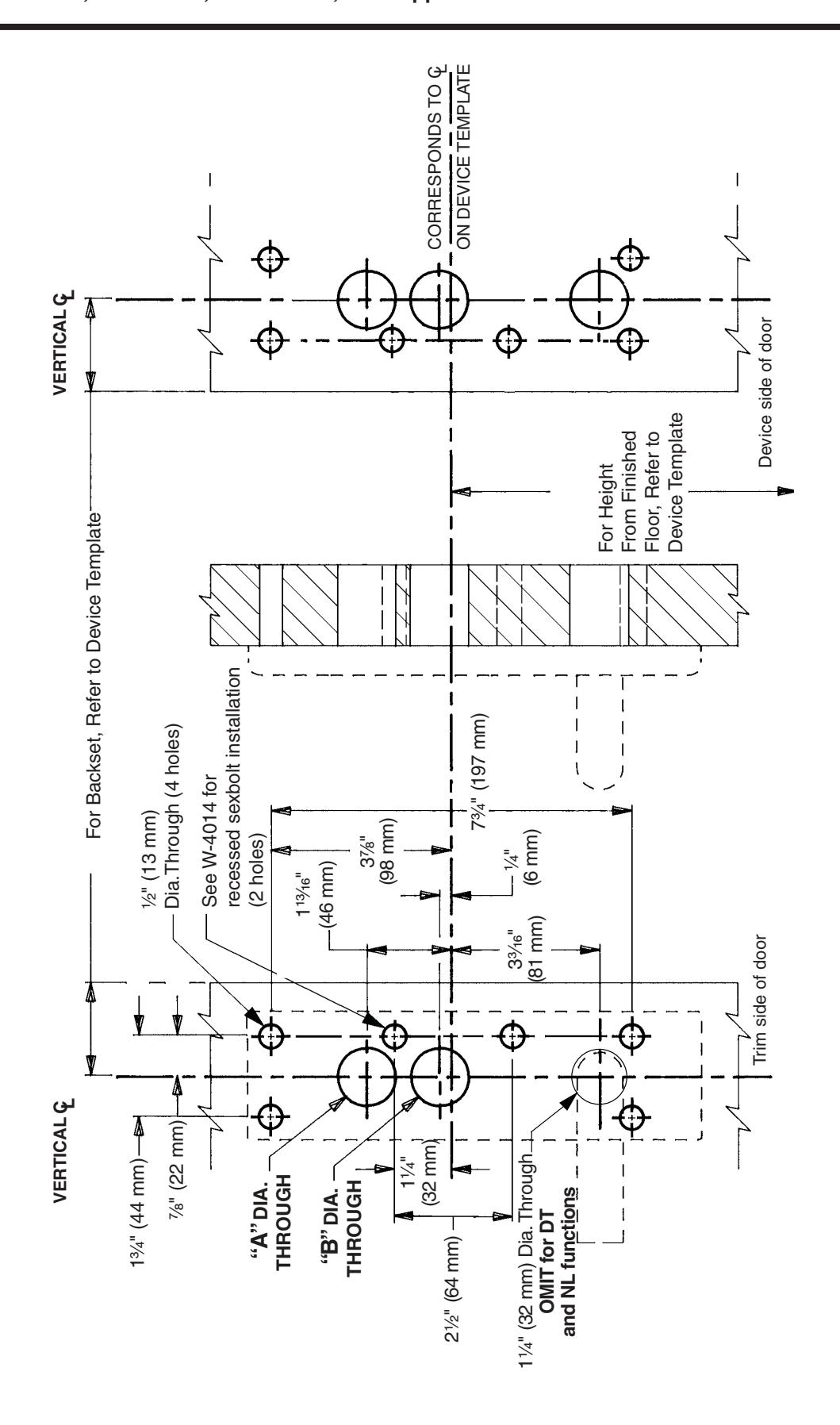

View PDF(F)XX-R Rim Lever Trim
812L and 816L, Wood Door, LHR Shown, RHR Opposite
| Device | A | B |
|---|---|---|
| (F)XX-XX-L | OMIT | 1³⁄₈" |
| (F)XX-XX-L-BE | OMIT | OMIT |
| (F)XX-XX-L (NL) | OMIT | 1³⁄₈" |
| (F)XX-XX-L2 | 1³⁄₈" | OMIT |
| (F)XX-XX-L (2O.C.) | 1³⁄₈" | 1³⁄₈" |
| (F)XX-XX-L-DT | OMIT | OMIT |
| (F)XX-XX-NL x L DT | 1³⁄₈" | OMIT |
TEMPLATE
W-2415-b
