Falcon_F_XX-C_Trim_Concealed _Vertical_Device_Only_Wood_Door_Template_101105

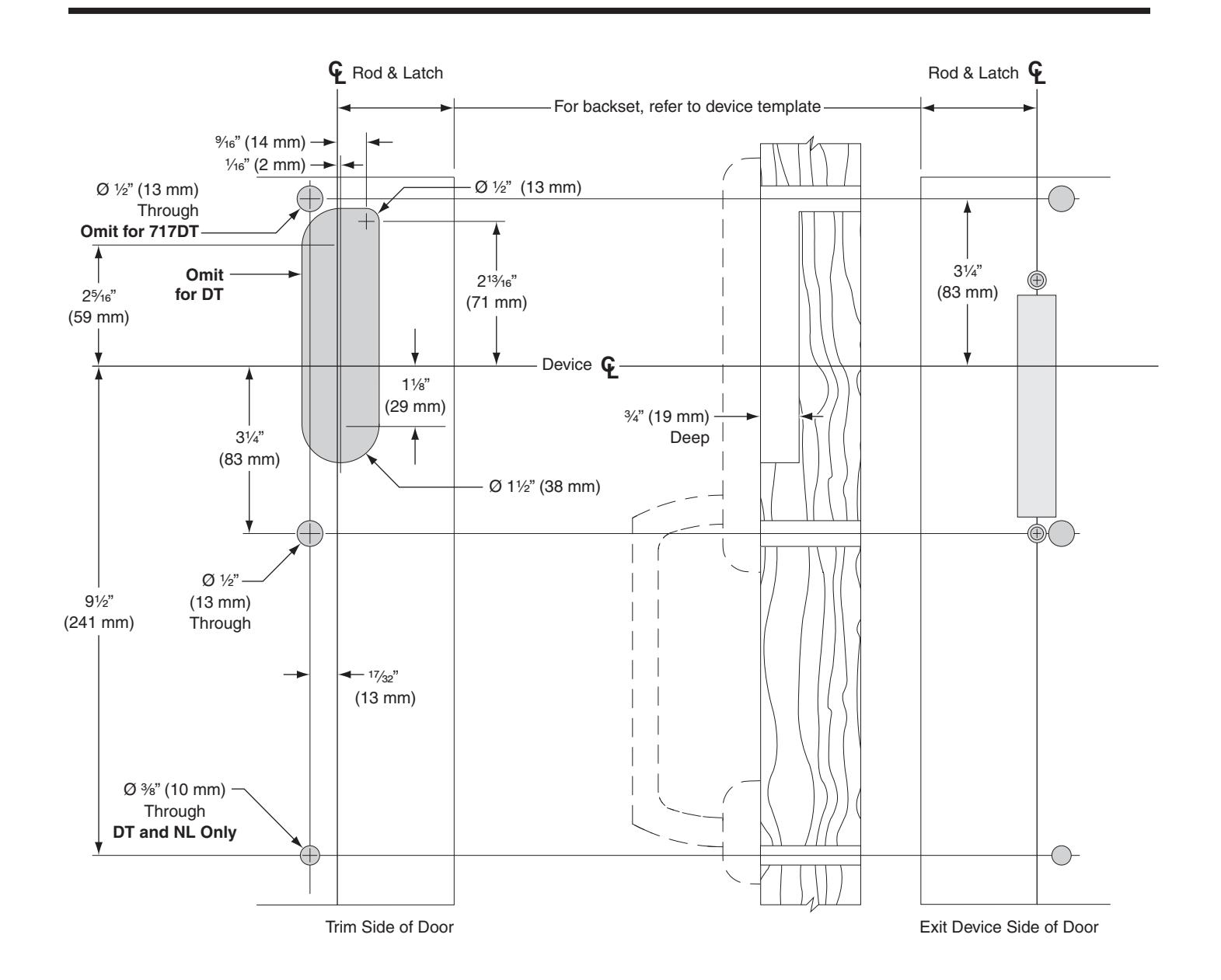

(F)XX-C Trim for Concealed Vertical Device only

717DT, 718C, 718DT, 718NL, Wood Door, LHR Shown, RHR Opposite

THIS TEMPLATE APPLIES TO PRODUCT ORDERED AFTER 3/1/2011 PRIOR TO THIS DATE USE OLD TEMPLATE

TEMPLATE

W-2462-a
