View PDF(F)XX-C Trim for Concealed Vertical Device only

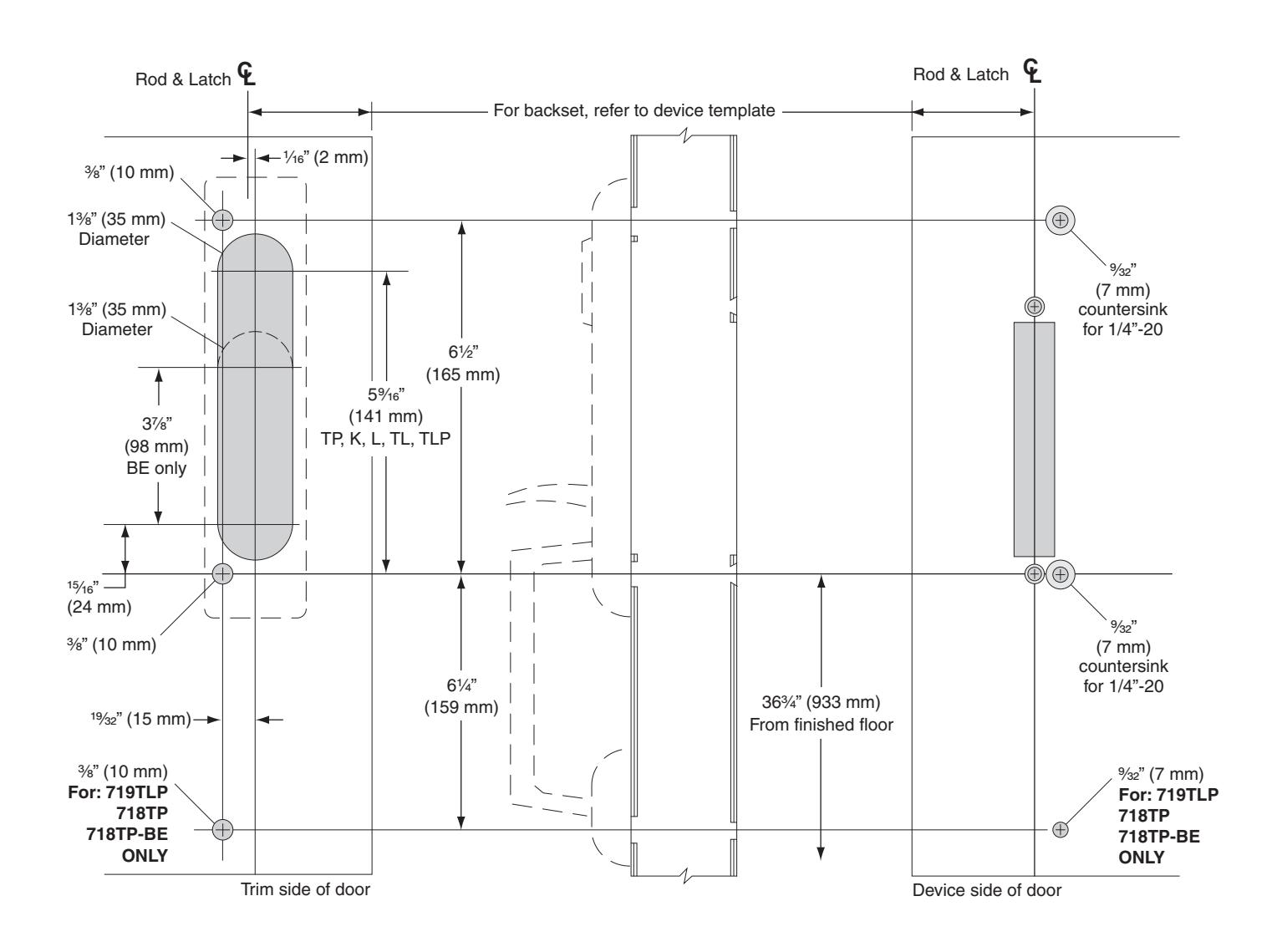

711K, 711K-NL, 711K-DT, 711K-BE, 712L, 712L-NL, 712L-DT, 712-BE, 718TP, 718TP-BE, 719TL, 719TL-BE, 719TL-NL, 719TLP, 719TLP-NL Metal Door, LHR Shown, RHR Opposite
THIS TEMPLATE APPLIES TO PRODUCT ORDERED PRIOR TO 3/1/2011
AFTER THIS DATE USE NEW TEMPLATE
TEMPLATE
T-2456-c
