FALCON ®

640093-00

Removable Mullion

Installation Instructions

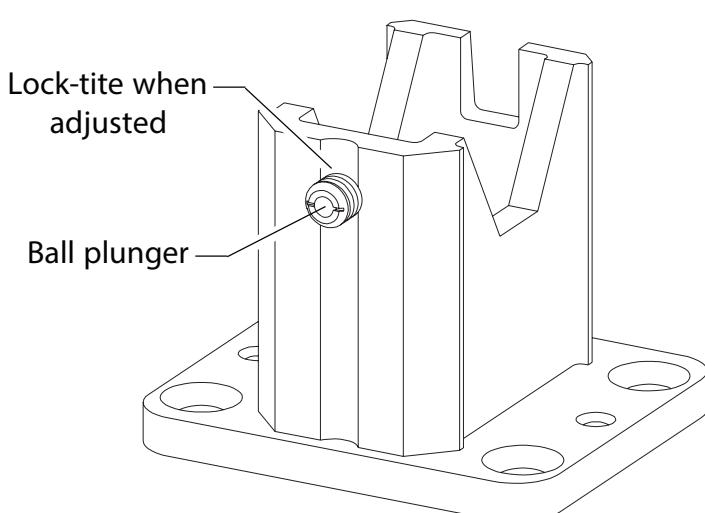

• Adjust ball plunger for top and bottom fitting. Adjust ball plunger out until ball is compressed when fitting is engaged with mullion. Once adjusted properly, lock-tite in place. See Figure 1.
• 2. Line up and install bottom mullion fitting with center of door opening and flush with closed doors. If threshold is used, it must be cut to fit around the bottom fitting. See Figures 2 and 3.

Figure 1

Figure 2

3. Line up and install top mullion tting with center of door opening and ush with closed doors. If stop is less than 3-1/2" wide, a ller block must be provided by others. See Figure 4.

Reinforcementfor all sheet metal frames is to be supplied by framemanufacturer. ! NOTE

4. Cut mullion body from the top to provide clearance as shown in Figure 4. Be sure mullion is seated on bottom tting.

5/16-18 x 1-1/4" FPHMS (4 places)

5. Remove top mullion tting and insert in top of mullion body. Slide mullion into place and replace mounting screws. Install top mullion clamp. See Figure 5.

Figure 5
