Falcon_700_Series_Trim_24-C_Device_Only_Wood_Door_Template_108887

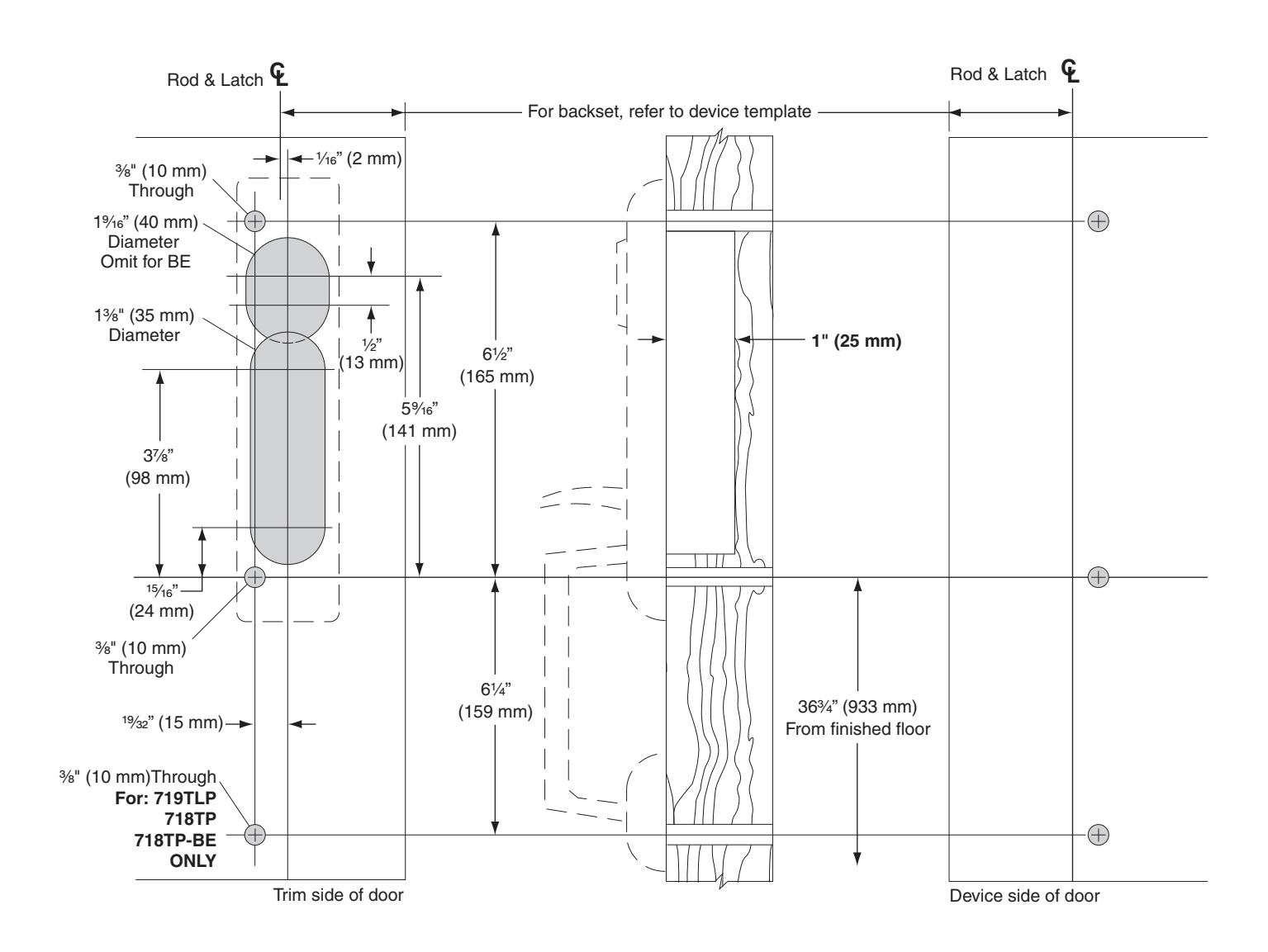

700 Series Trim (for 24-C Device only)

711K, 711K-NL, 711K-DT, 711K-BE, 712L, 712L-NL, 712L-DT, 712-BE, 718TP, 718TP-BE, 719TL, 719TL-NL, 719TL-BE, 719TLP, 719TLP-NL Wood Door, LHR Shown, RHR Opposite

• For height from finished floor, refer to device template.

THIS TEMPLATE APPLIES TO PRODUCT ORDERED PRIOR TO 3/1/2011 AFTER THIS DATE USE NEW TEMPLATE

W-2356-c TEMPLATE
