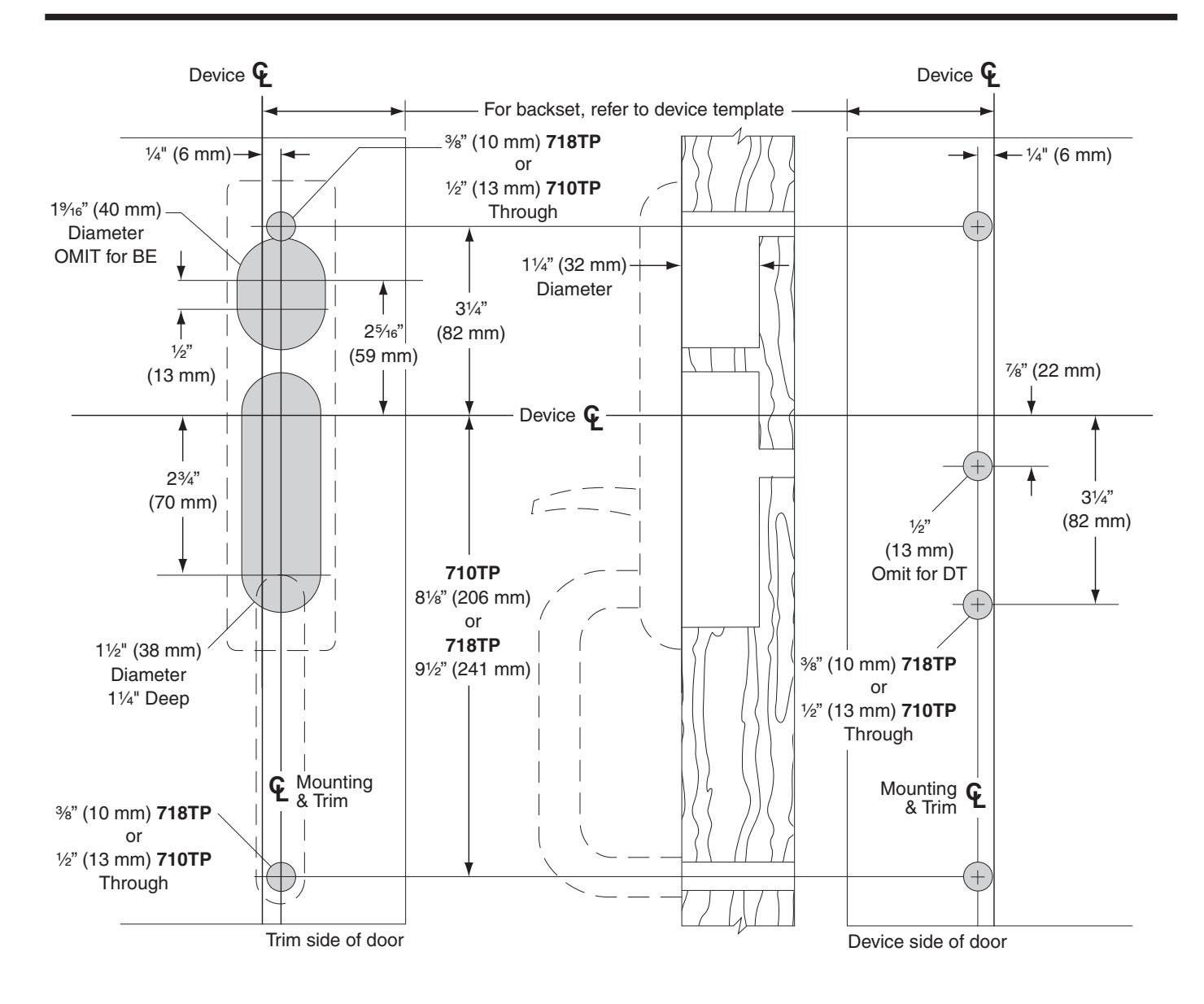

700 Series Thumbpiece Trim (for 24-R or 24-V Device only)

710TP, 710TP-BE, 718TP and 718TP Trim, Wood Door, LHR Shown, RHR Opposite

• For height from finished floor, refer to device template.

THIS TEMPLATE APPLIES TO PRODUCT ORDERED PRIOR TO 3/1/2011

TEMPLATE

W-2325-b
