Falcon_571_571-A_Strike_Wood_Door_Template_108902
Open the original PDF document
View PDF

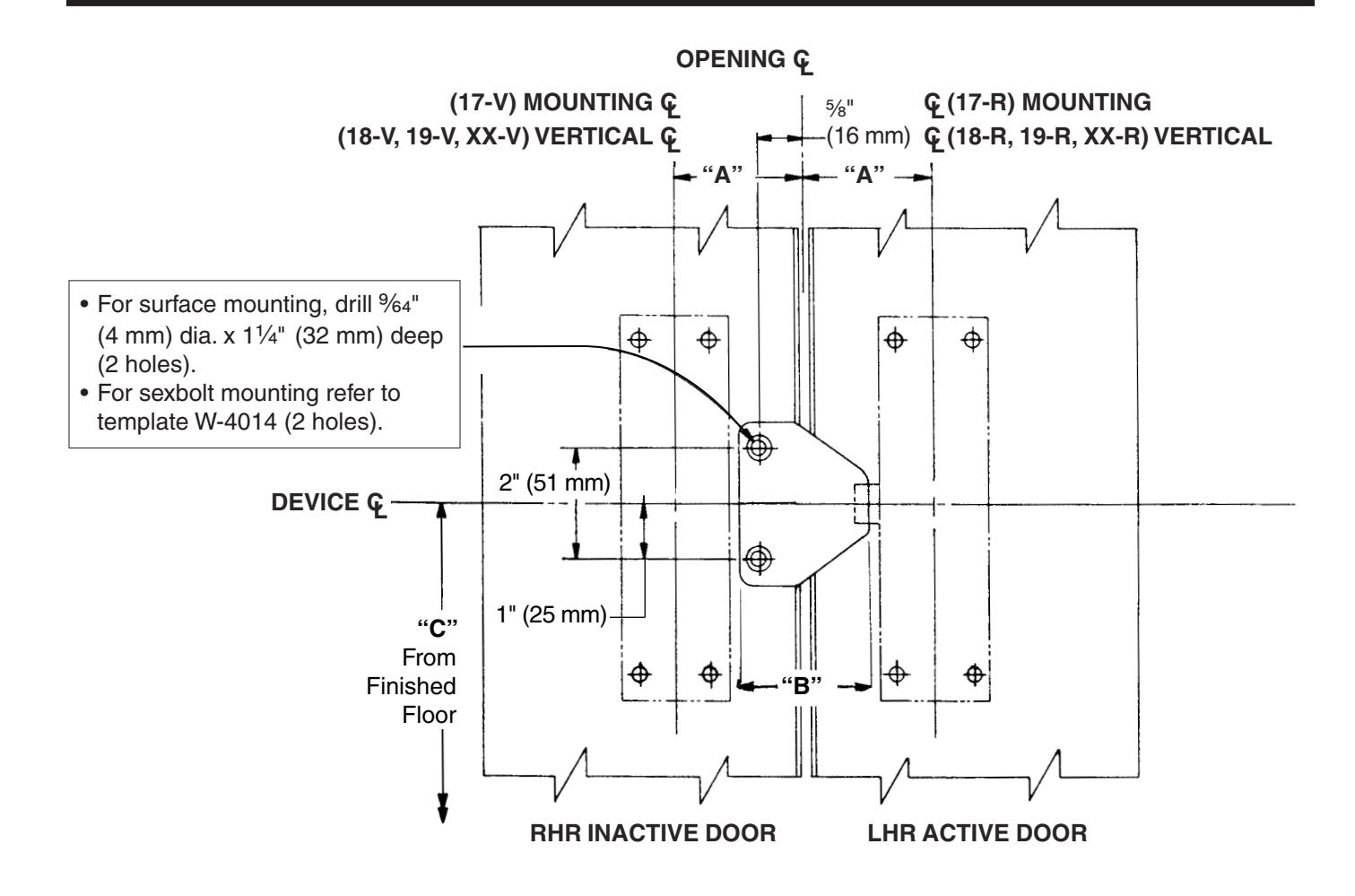

| Device | Strike | A | B | C |
|---|---|---|---|---|
| 18-R x 18-V | 571 | 2M" | 2Z\x" | 40Z\v" |
| 571-A | 2C" | 2" | 40Z\v" | |
| 17-R x 17-V | 571 | 2C\zn" | 2Z\x" | 40" |
| 571-A | 1ZZ\zn" | 2" | 40" | |
| 19-R x 19-V | 571 | 2B\zn" | 2Z\x" | 40B\zn" |
| 571-A | 1ZC\zn" | 2" | 40B\zn" | |
| XX-R x XX-V | 571 | 2M" | 2Z\x" | 40Z\v" |
| 571-A | 2C" | 2" | 40Z\v" |
• For device function and other dimensions, see appropriate device or trim templates.
TEMPLATE
W-3003-a
