Falcon_2923_Mullion_Installation_Instructions_107898

D-4025

- 3/8"-16X1/2"

11/2"-

Set Screw

2923 Mullion

Mullion

FALCON ®

Installation Instructions

Face of Stop or Mullion

1/4"-20 X 1 1/4"

Bottom Fitting

-20 Anchors

FPHMS

- 3/8"-16X1/2" Set Screw

-Clamp

#10-24 X 1/4"

PPHMS

_2 1/2"

FIG. A

FIG. B

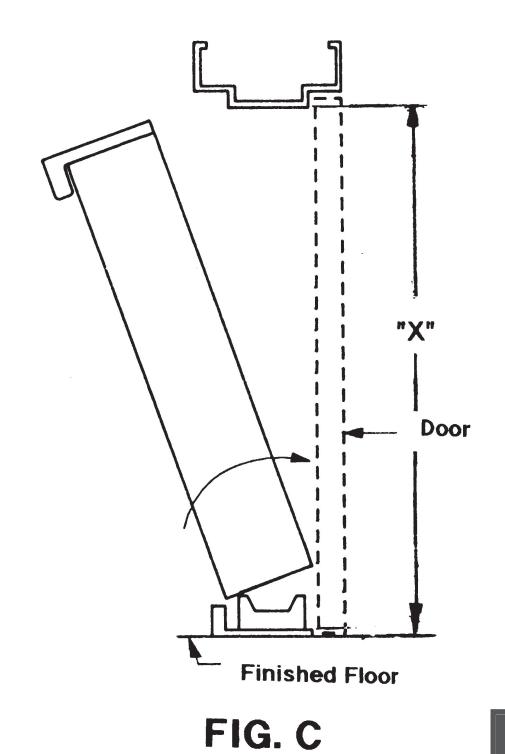

2. DRILL AND TAP FRAME FOR TOP FITTING AS SHOWN IN FIG. A. 3. VERIFY MULLION LENGTH AS FOLLOWS: A) PLACE TOP MULLION FITTING INTO TOP OF MULLION. B) LOCATE MULLION INTO DOOR OPENING AS SHOWN IN FIG. C.

1. INSTALL BOTTOM FITTING USING ANCHORS PROVIDED AS SHOWN IN

• C) IF MULLION DOES NOT FIT INTO OPENING THEN
  • 1) MEASURE OPENING SIZE "X" AS SHOWN IN FIG. C.
  • 2) CALCULATE REQUIRED LENGTH = "X" 3/4"
  • 3) CUT MULLION TO THE REQUIRED LENGTH AND REINSTALL MULLION INTO OPENING.
• 4. INSTALL TOP MULLION FITTING WITH (4) MOUNTING SCREWS INTO DOOR FRAME.
• 5. INSTALL CLAMP WITH #10-24 SCREWS, SEE FIG. A.
• 6. INSTALL 3/8"-16 SET SCREWS SECURELY INTO TOP AND BOTTOM FITTING.
• 7. PROCEED WITH DEVICE INSTALLATION.

FIG. A. AND FIG. B.
