View PDF25 Series Dummy Trim (for 25-C Device only)

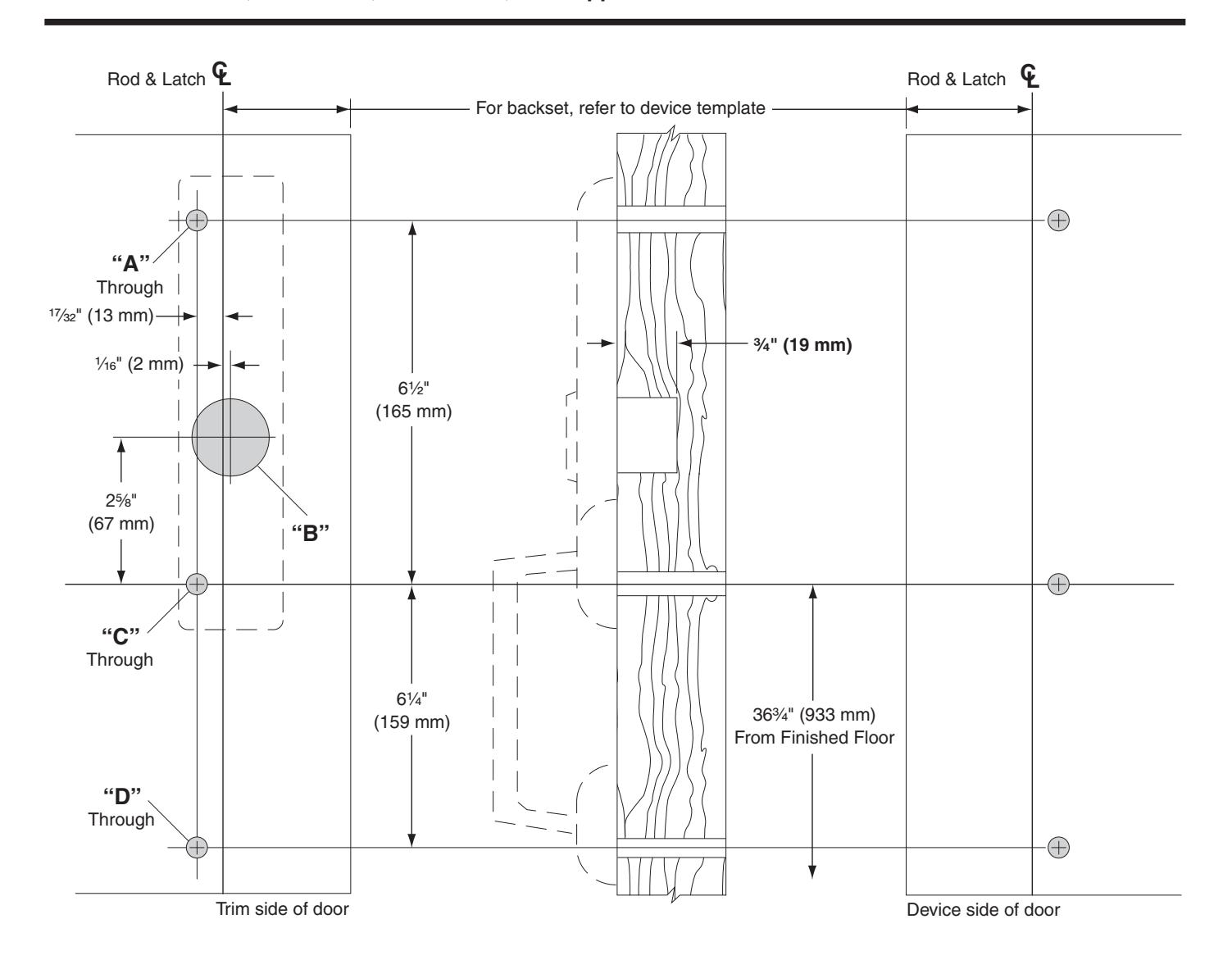

717-DT & 718C Trim, Wood Door, LHR Shown, RHR Opposite
| Trim | Α | В | С | D |
|---|---|---|---|---|
| 717DT | OMIT | OMIT | 3/8" | 3/8" |
| 718C | 3/8" | 1%" | 3/8" | OMIT |
THIS TEMPLATE APPLIES TO PRODUCT ORDERED PRIOR TO 3/1/2011 AFTER THIS DATE USE NEW TEMPLATE
темрьате W-2211-с
