Falcon_24_Series_Trim_24-C_Device_Only_Metal_Door_Template_106571

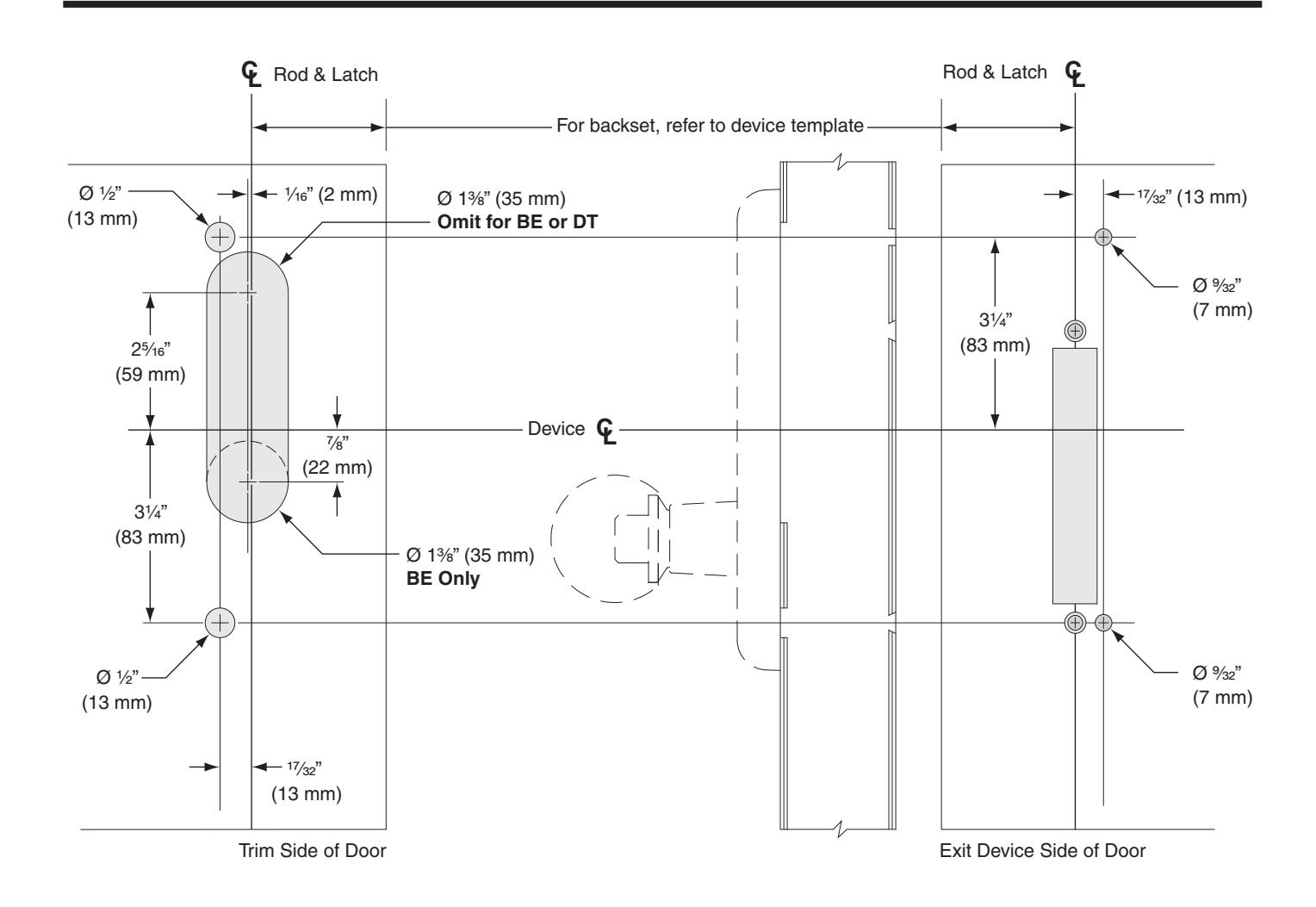

700 Series Trim (for 24-C Device only)

711K, 711K-NL, 711K-BE, 712L, 712L-NL, 712L-DT, 712L-BE, Metal Door, LHR Shown, RHR Opposite

THIS TEMPLATE APPLIES TO PRODUCT ORDERED AFTER 3/1/2011

PRIOR TO THIS DATE USE OLD TEMPLATE

TEMPLATE

T-2363-b
