View PDF24 Series Thumbpiece Lever Trim (for 24-V Device only)

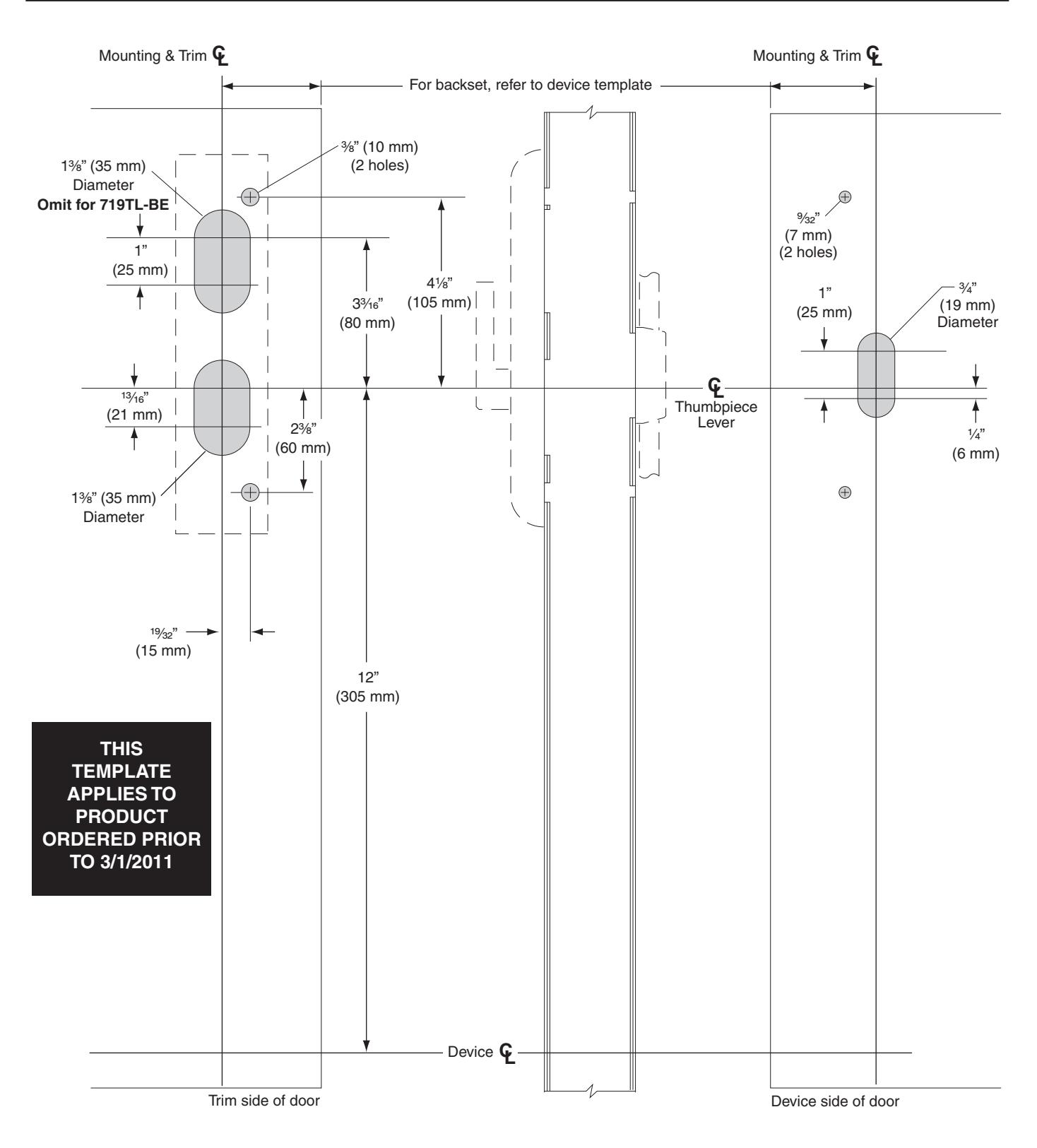

719TL, 719TL-BE Trim, Metal Door, LHR Shown, RHR Opposite
• For height from finished floor, refer to device template.
TEMPLATE
T-2323-b
