View PDF24 Series Dummy Trim (for 24-R or 24-V Device only)

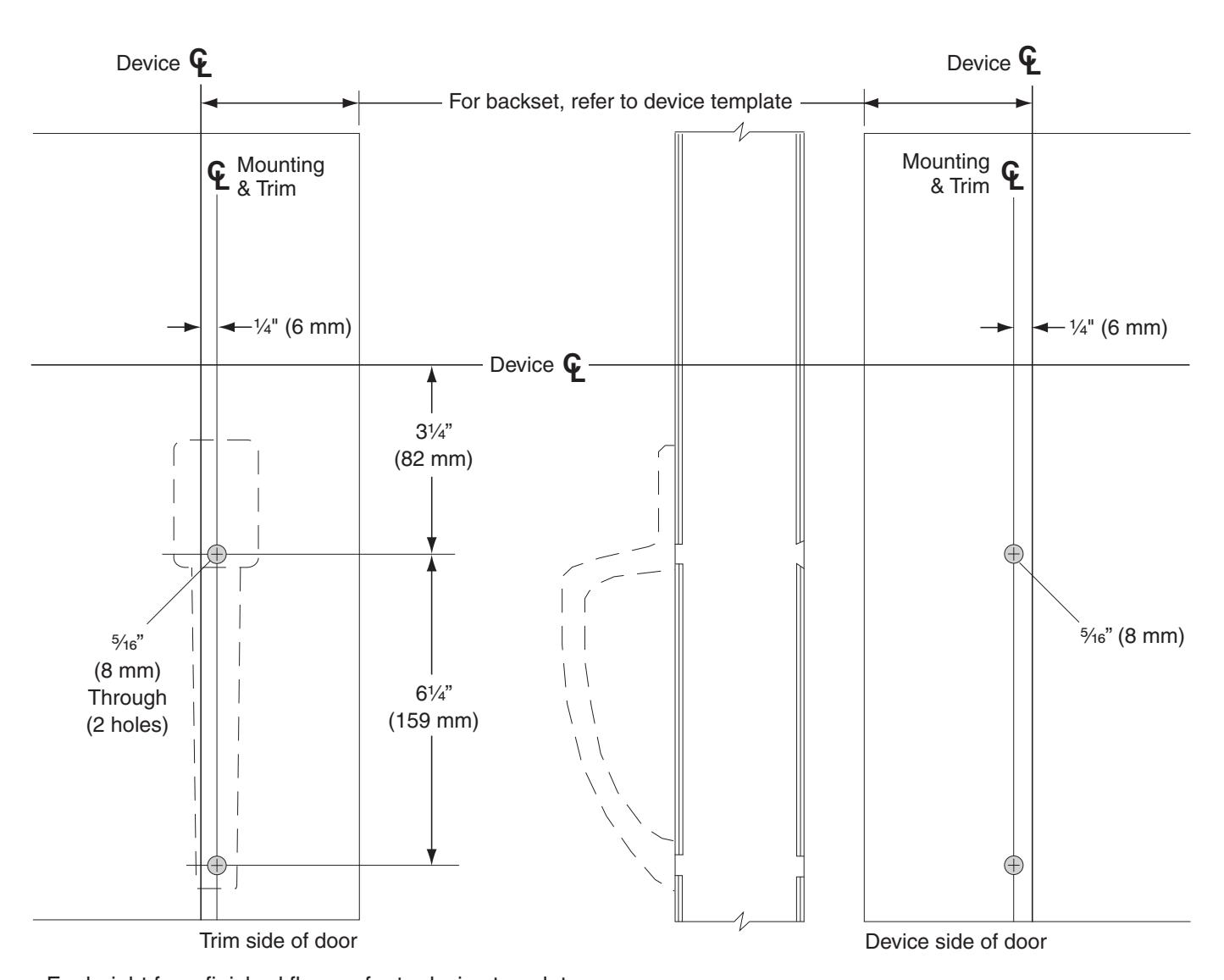

715DT Trim, Metal Door, LHR Shown, RHR Opposite
• For height from finished floor, refer to device template.
TEMPLATE
T-2320-a
