| DEVICE | "A" | "B" | "C" | DEVICE | "A" | "B" | "C" |
|---|---|---|---|---|---|---|---|
| (F)XX-R-DT | OMIT | OMIT | (F)18-R-DT | OMIT | OMIT | OMIT | |
| (F)XX-R-NL | 1-1/4" | OMIT | OMIT | (F)18-R-NL | 1-1/4" | OMIT | OMIT |
| (F)XX-M-DT | OMIT | OMIT | OMIT | (F)18-M-DT | OMIT | OMIT | OMIT |
| (F)XX-M-NL | 1-1/4" | OMIT | OMIT | (F)18-M-NL | 1-1/4" | OMIT | OMIT |
| (F)XX-V-DT | OMIT | OMIT | OMIT | (F)18-V-DT | OMIT | OMIT | OMIT |
| (F)XX-V-NL | OMIT | OMIT | 1-1/4" | (F)18-V-NL | OMIT | 1-1/4" | OMIT |
D-2018/2021-a Copyright © 2009 Ingersoll-Rand Company Limited
FALCON ®
TITLE:

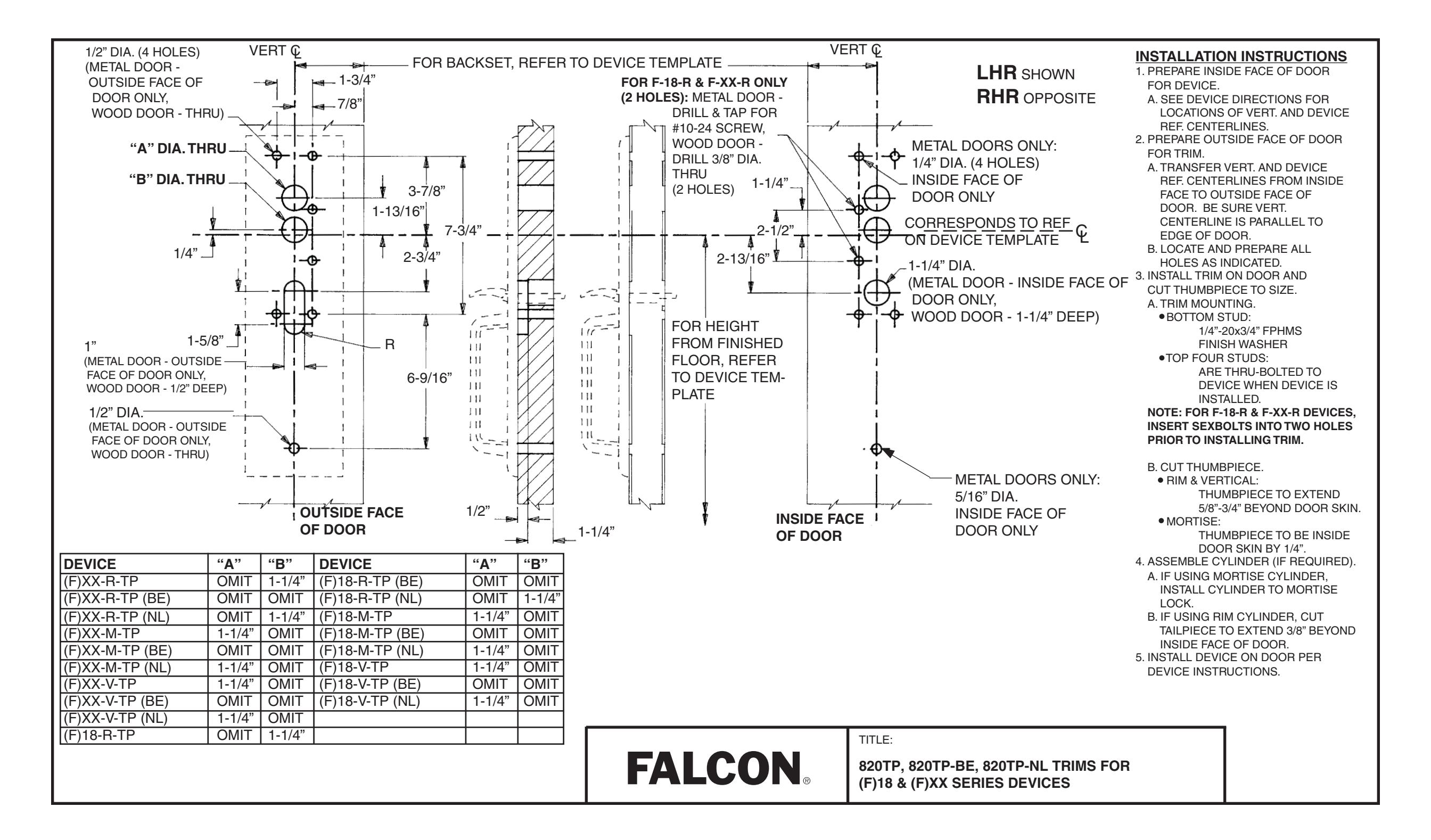

820DT & 820NL TRIMS FOR (F)18 & (F)XX SERIES DEVICES
- PREPARE INSIDE FACE OF DOOR FOR DEVICE.

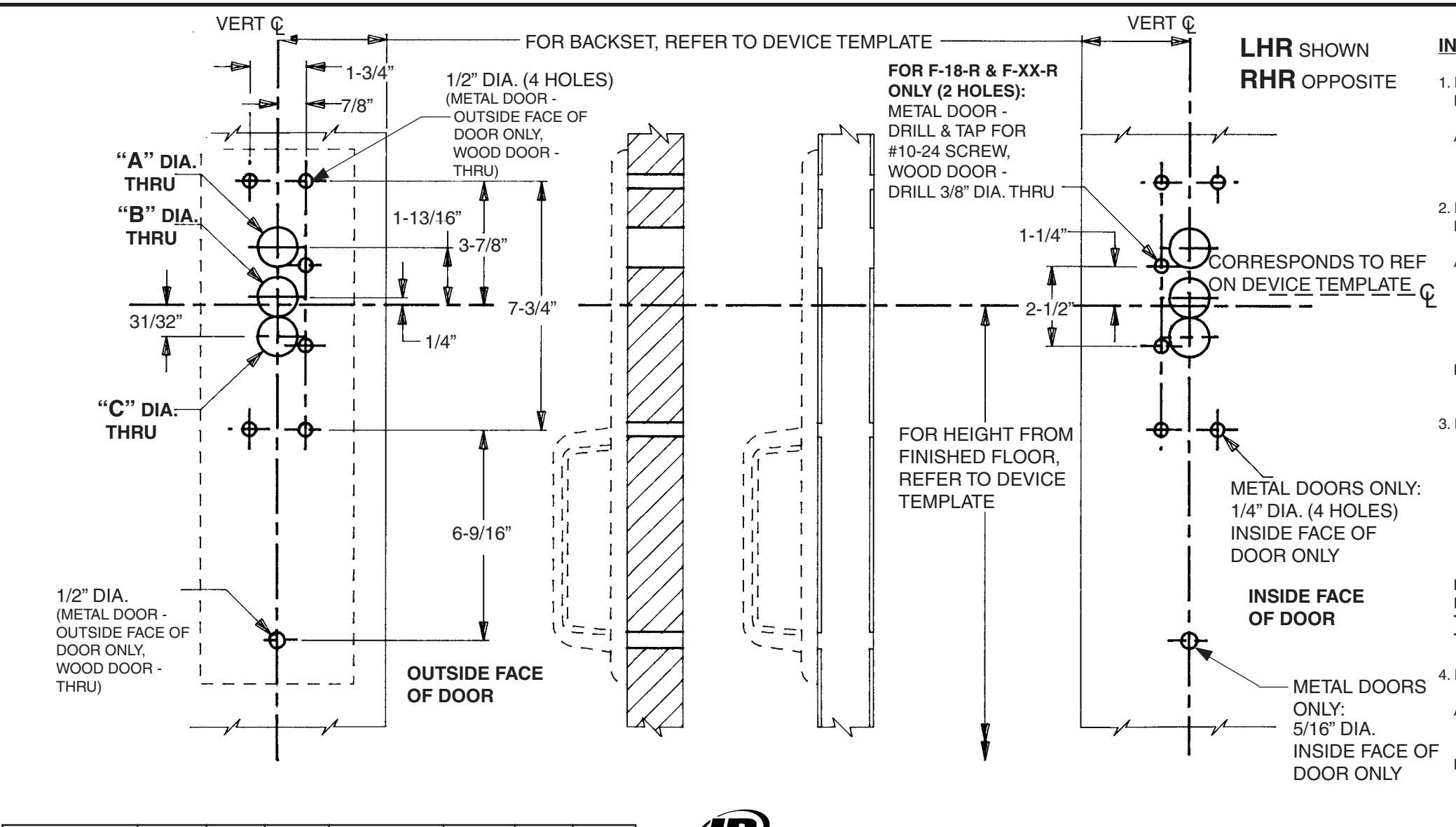

- A. SEE DEVICE DIRECTIONS FOR LOCATIONS OF VERT. AND DEVICE REF. CENTERLINES.
-
PREPARE OUTSIDE FACE OF DOOR FOR TRIM.
- A. TRANSFER VERT. AND DEVICE REF. CENTERLINES FROM INSIDE FACE TO OUTSIDE FACE OF DOOR. BE SURE VERT. CENTERLINE IS PARALLEL TO EDGE OF DOOR.
- B. LOCATE AND PREPARE ALL HOLES AS INDICATED.
-
3. INSTALL TRIM ON DOOR.
- BOTTOM STUD: 1/4"-20x3/4" FPHMS & FINISH WASHER
- TOP FOUR STUDS: ARE THRU-BOLTED TO DEVICE WHEN DEVICE IS INSTALLED.
NOTE: FOR F-18-R & F-XX-R DEVICES, INSERT SEXBOLTS INTO TWO HOLES PRIOR TO INSTALLING TRIM.
- 4. INSTALL CYLINDER (IF REQUIRED)
- A. IF USING MORTISE CYLINDER, INSTALL CYLINDER INTO MORTISE LOCK.
- B. IF USING RIM CYLINDER, INSTALL CYLINDER TO TRIM. THEN CUT TAILPIECE TO EXTEND 3/8" BEYOND INSIDE FACE OF DOOR.
- 5. INSTALL DEVICE ON DOOR PER DEVICE INSTRUCTIONS.
