Falcon_18_&_XX_F-18_&_F-XX-Series_815DT_815NL_Installation_Instructions_107881

Open the original PDF document

D-2001-2018

INSTALLATION INSTRUCTIONS

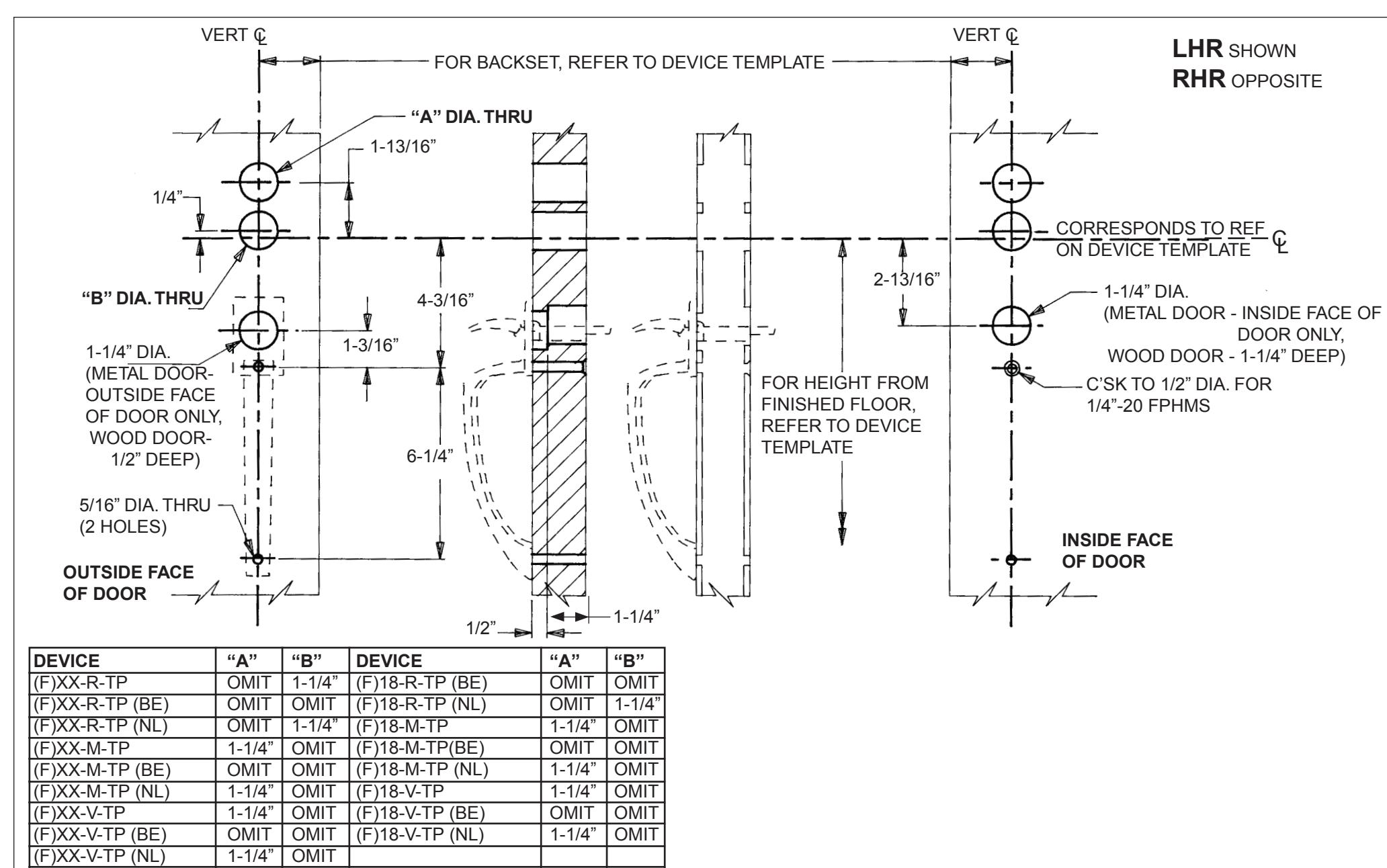

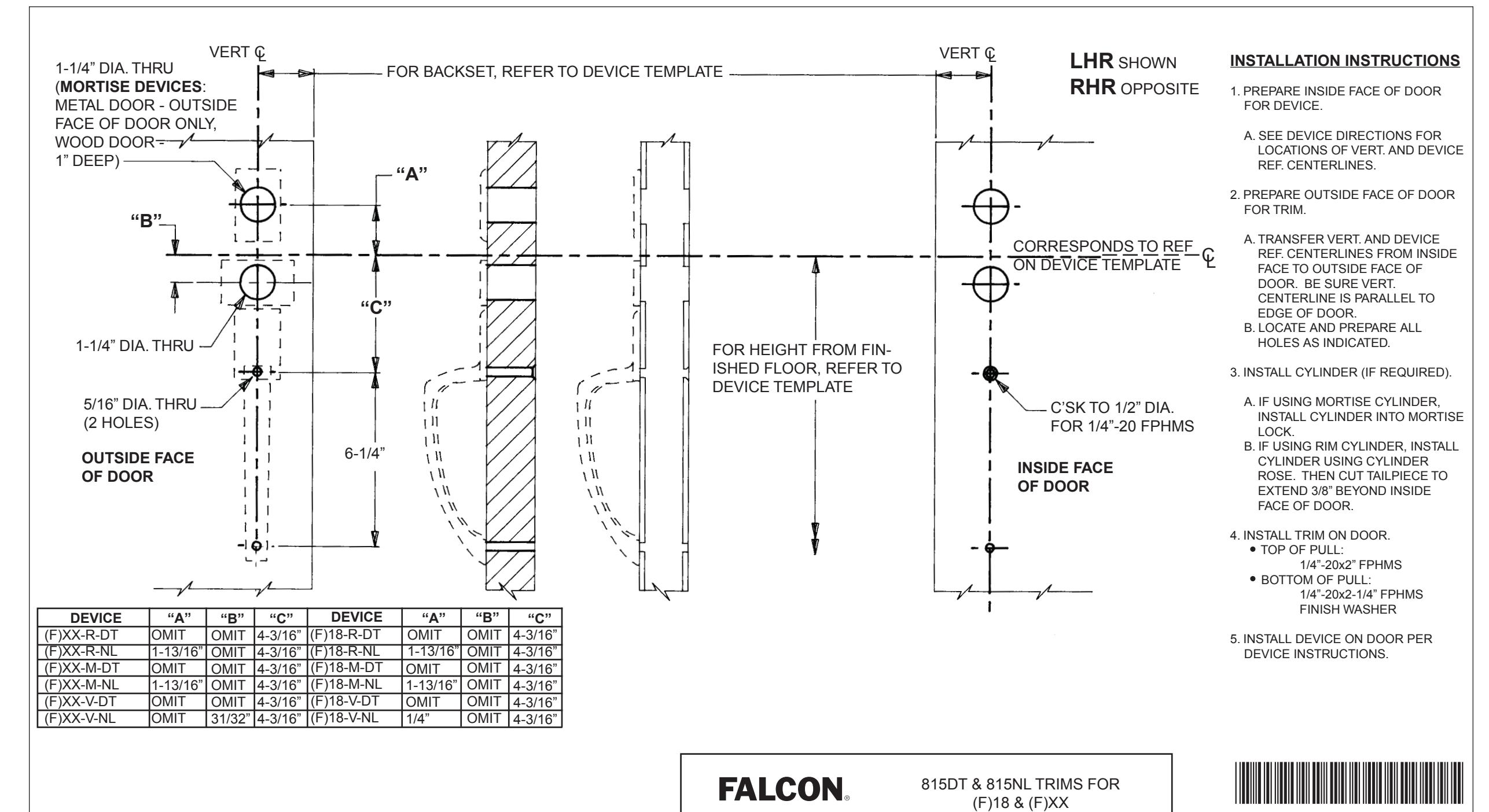

1. PREPARE INSIDE FACE OF DOOR FOR DEVICE.
- A. SEE DEVICE DIRECTIONS FOR LOCATIONS OF VERT. AND DEVICE REF. CENTERLINES.
2. PREPARE OUTSIDE FACE OF DOOR FOR TRIM.
A. TRANSFER VERT. AND DEVICE REF. CENTERLINES FROM INSIDE FACE TO OUTSIDE FACE OF DOOR. BE SURE VERT. CENTERLINE IS PARALLEL TO EDGE OF DOOR.
B. LOCATE AND PREPARE ALL HOLES AS INDICATED.
3. INSTALL CYLINDER (IF REQUIRED).
A. IF USING MORTISE CYLINDER, INSTALL CYLINDER INTO MORTISE LOCK.
B. IF USING RIM CYLINDER, INSTALL CYLINDER USING CYLINDER ROSE. THEN CUT TAILPIECE TO EXTEND 3/8" BEYOND INSIDE FACE OF DOOR.
4. INSTALL TRIM ON DOOR AND CUT THUMBPIECE TO SIZE.
- A. TRIM MOUNTING.
- TOP OF PULL:

1/4"-20x2" FPHMS

BOTTOM OF PULL:

1/4"-20x2-1/4" FPHMS FINISH WASHER

THUMBPIECE TO EXTEND 5/8"-3/4" BEYOND DOOR SKIN.

MORTISE :

THUMBPIECE TO BE INSIDE DOOR SKIN BY 1/4".

5. INSTALL DEVICE ON DOOR PER DEVICE INSTRUCTIONS.

Customer Service

(F)18-R-TP OMIT 1-1/4"

1-877-671-7011 www.allegion.com/us

815TP, 815TP-BE, 815TP-NL FOR (F)18 & (F)XX SERIES DEVICES
