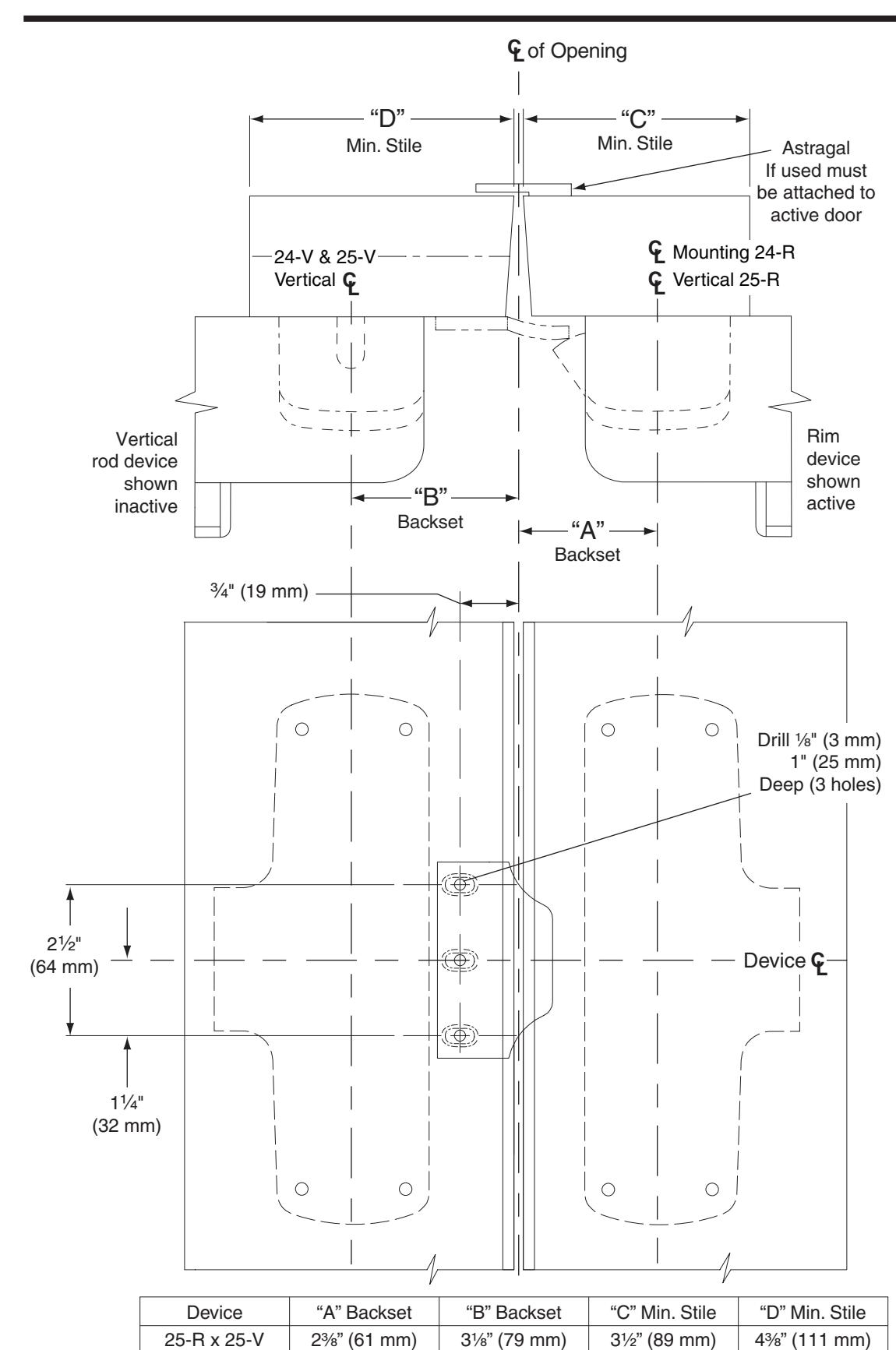

Falcon_1609_Strike_Wood_Door_Template_108925
Open the original PDF document
View PDF
- For device function and other dimensions, refer to appropriate device or trim templates.
- Note: reinforcement required for metal frames.
TEMPLATE
W-3206-b
1¹⁄₂" (38 mm)
2" (51 mm)
3¹⁄₁₆" (78 mm)
3⁵⁄₁₆" (84 mm)
24-R x 24-V
