Falcon XX-M Series Mortise Installation Instructions 107857

Open the original PDF document

View PDF

  • 9) CHECK DOGGING OPERATION (PANIC APPLICATION ONLY)
    • A) DEPRESS CROSSBAR, INSERT AND TURN DOGGING KEY IN BOTH THE ACTIVE AND INACTIVE HEADS.
    • B) REMOVE DOGGING KEY, CROSSBAR SHOULD REMAIN DEPRESSED.
    • C) REINSERT DOGGING KEY AND TURN IN OPPOSITE DIRECTION. CROSSBAR WILL "POP OUT".
    • D) FOR CYLINDER DOGGING, REFER TO D-4085.
  • 10) CHECK FOR SMOOTH OPERATION AND SECURE LATCH BOLT ENGAGEMENT.

D-1010

XX-M Series Mortise

Exit Devices

Installation Instructions

Customer Service

1-877-671-7011 www.allegion.com/us

© Allegion 2014 Printed in U.S.A. D-1010 Rev. 06/14-d

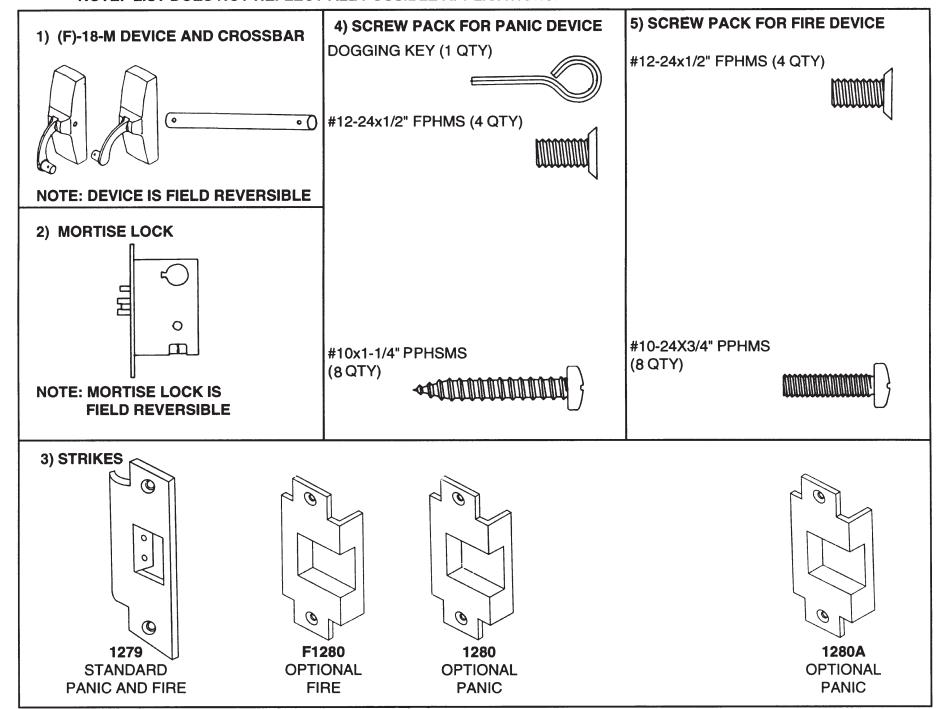

2 DOOR LAYOUT

(NOTE: FOR FACTORY PREPARED DOORS, VERIFY LAYOUT.) (NOTE: FOR WOOD DOORS, CONSULT FACTORY.)

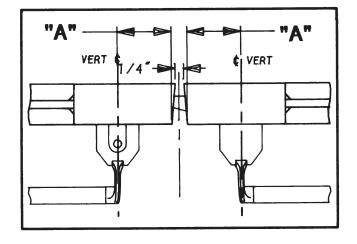

  • 1) DOOR MUST BE FITTED AND HUNG PROPERLY BEFORE PROCEEDING. 2) MARK VERTICAL \phi AND DEVICE REF. \phi ON DOOR AND FRAME. (SEE FIGURES & CHART BELOW)

A) VERTICAL Q: SINGLE DOOR APPLICATION

INSTALLATION "A"
BACKSET 		MIN.
SINGLE DOOR MORTISE BACKSET STILL
DOUBLE DOOR: MORTISE x VERTICAL DEVICES 2-3/4" 4-1/2"
DOUBLE DOOR: MORTISE x CONCEALED DEVICES

NOTE: VERTICAL Ç TAKEN FROM CENTER OF DOOR THICKNESS

B) VERTICAL G: DOUBLE DOOR APPLICATION WITH MULLION

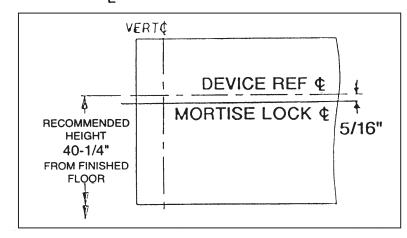

C) DEVICE REF. C (HORIZONTAL)

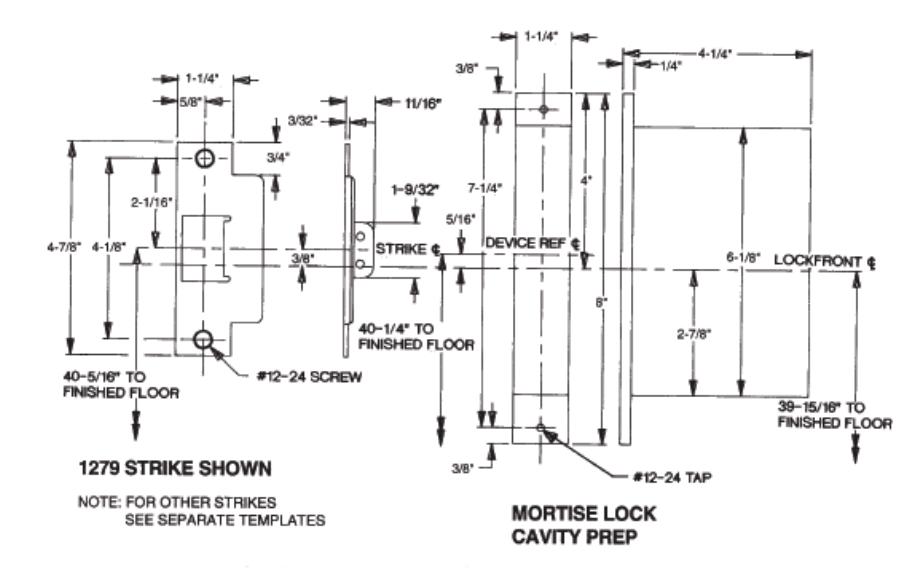

FOR FACTORY PREPARED DOORS: USE MORTISE LOCK & TO FIND DEVICE REF. Ç

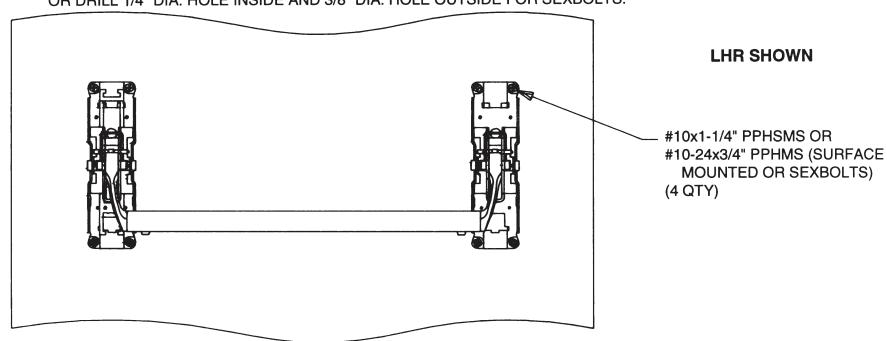

5) LOCATE, MARK, AND DRILL INACTIVE HEAD MOUNTING HOLES

A) LEVEL CROSSBAR ON DOOR

B) MARK CENTER OF FOUR MOUNTING HOLES

C) DRILL 9/64" DIA. HOLES IF USING SHEET METAL SCREWS OR DRILL AND TAP #10-24 IF USING MACHINE SCREWS OR DRILL 1/4" DIA. HOLE INSIDE AND 3/8" DIA. HOLE OUTSIDE FOR SEXBOLTS.

  • 6) TIGHTEN ALL DEVICE AND MORTISE LOCK MOUNTING SCREWS.
  • 7) INSTALL STRIKE.
  • 8) ATTACH CHASSIS COVER

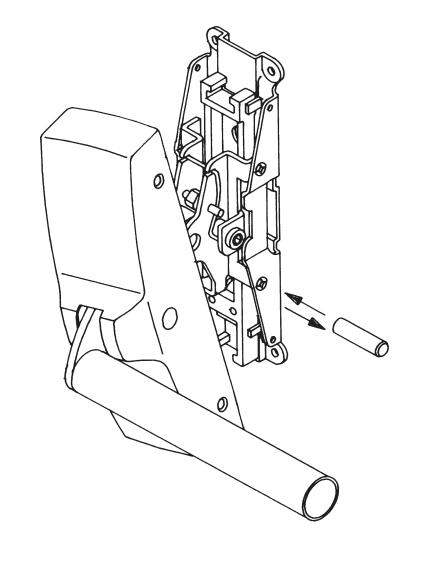

    • A) REMOVE AXLES FROM BOTH ACTIVE AND INACTIVE CHASSIS.
    • B) REMOVE CROSSBAR AND CROSSBAR ARMS FROM BOTH CHASSIS.
    • C) SLIDE CROSSBAR ARMS INTO RECTANGULAR CUT-OUT IN TOP OF CHASSIS COVER

NOTE: THE 1/2" DIA. HOLE IN THE CHASSIS COVER ON BOTH COVERS SHOULD FACE EACH OTHER

  • D) INSERT CROSSBAR ARMS INTO CHASSIS AND INSERT AXLES.

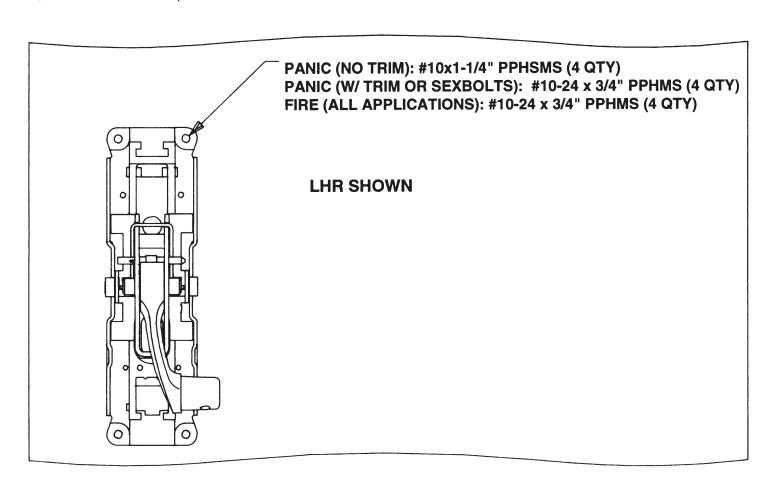

  • E) SLIDE CHASSIS COVER OVER CHASSIS AND ATTACH WITH 4 (PER HEAD) #-32x1/4" UFPHMS.

LHR ACTIVE HEAD SHOWN

NOTE: 1/2" DIA. HOLE IN EACH CHASSIS COVER SHOULD FACE AWAY FROM DOOR STOPS WHEN ASSEMBLED TO CHASSIS (HOLES WILL FACE TOWARDS EACH OTHER)

PAGE 7 PAGE 2

HARDWARE INSTALLATION

  • 1) INSTALL MORTISE LOCK WITH TWO #12-24x1/2" UFPHMS SCREWS.
    • (NOTE: LEAVE SCREWS LOOSE FOR EASIER DEVICE AND TRIM INSTALLATION)
  • 2) IF USING OUTSIDE TRIM OR SEXBOLTS, MOUNT TRIM PER DIRECTIONS IN TRIM BOX, OR INSTALL OUTSIDE SEXBOLTS.
  • 3) EITHER SURFACE MOUNT DEVICE, OR THROUGHBOLT DEVICE TO TRIM OR SEXBOLTS.

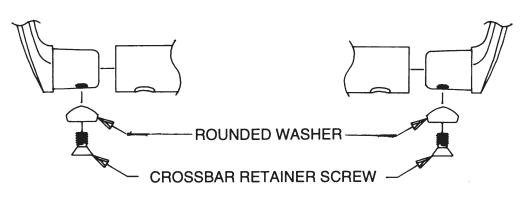

4) REMOVE CROSSBAR RETAINER SCREW AND ROUNDED WASHER FROM XX CROSSBAR ARMS. SLIDE CROSSBAR OVER BOTH ACTIVE AND INACTIVE CROSSBAR ARMS AND ATTACH WITH CROSSBAR RETAINER SCREW AND ROUNDED WASHER.

DOOR & HARDWARE PREPARATION

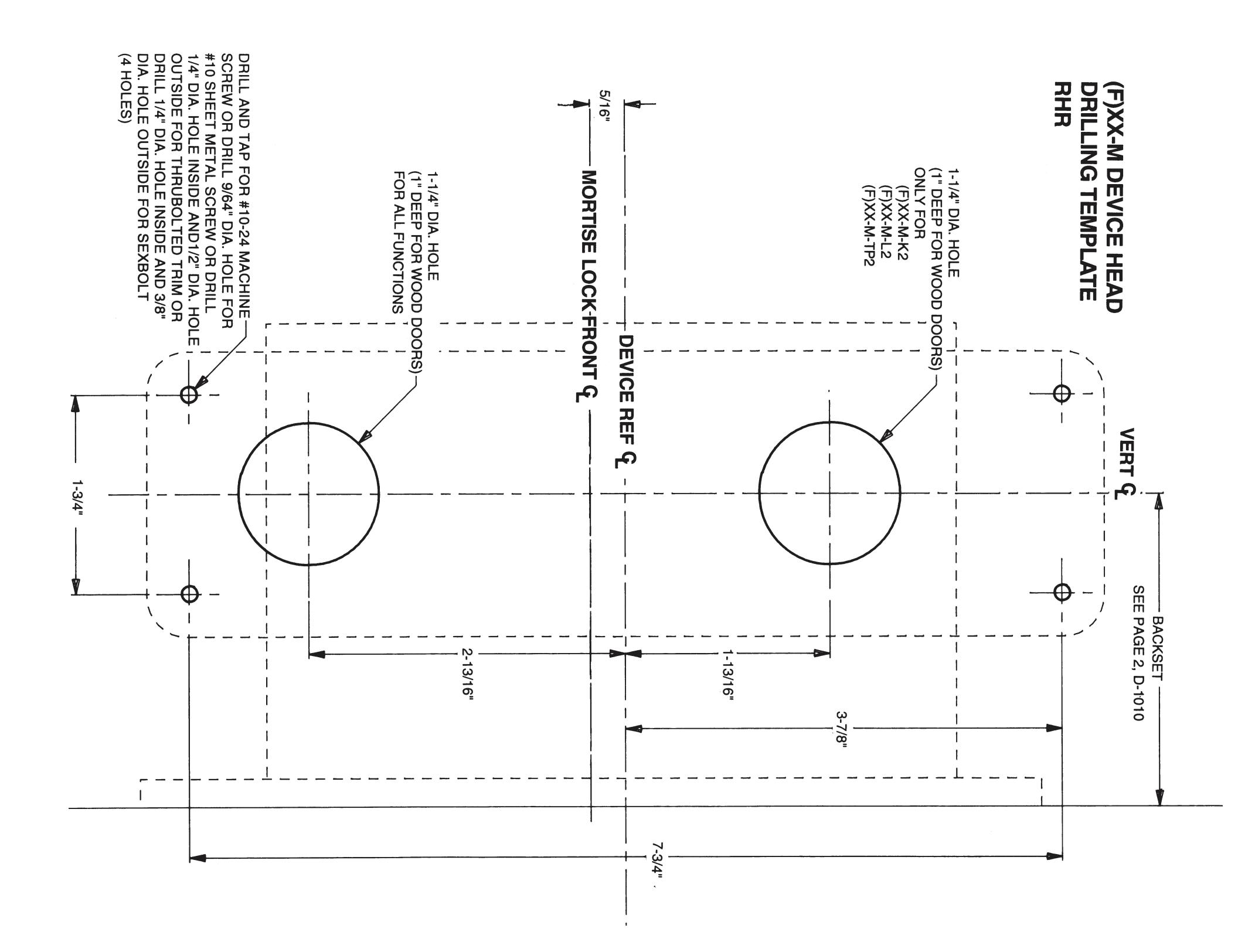

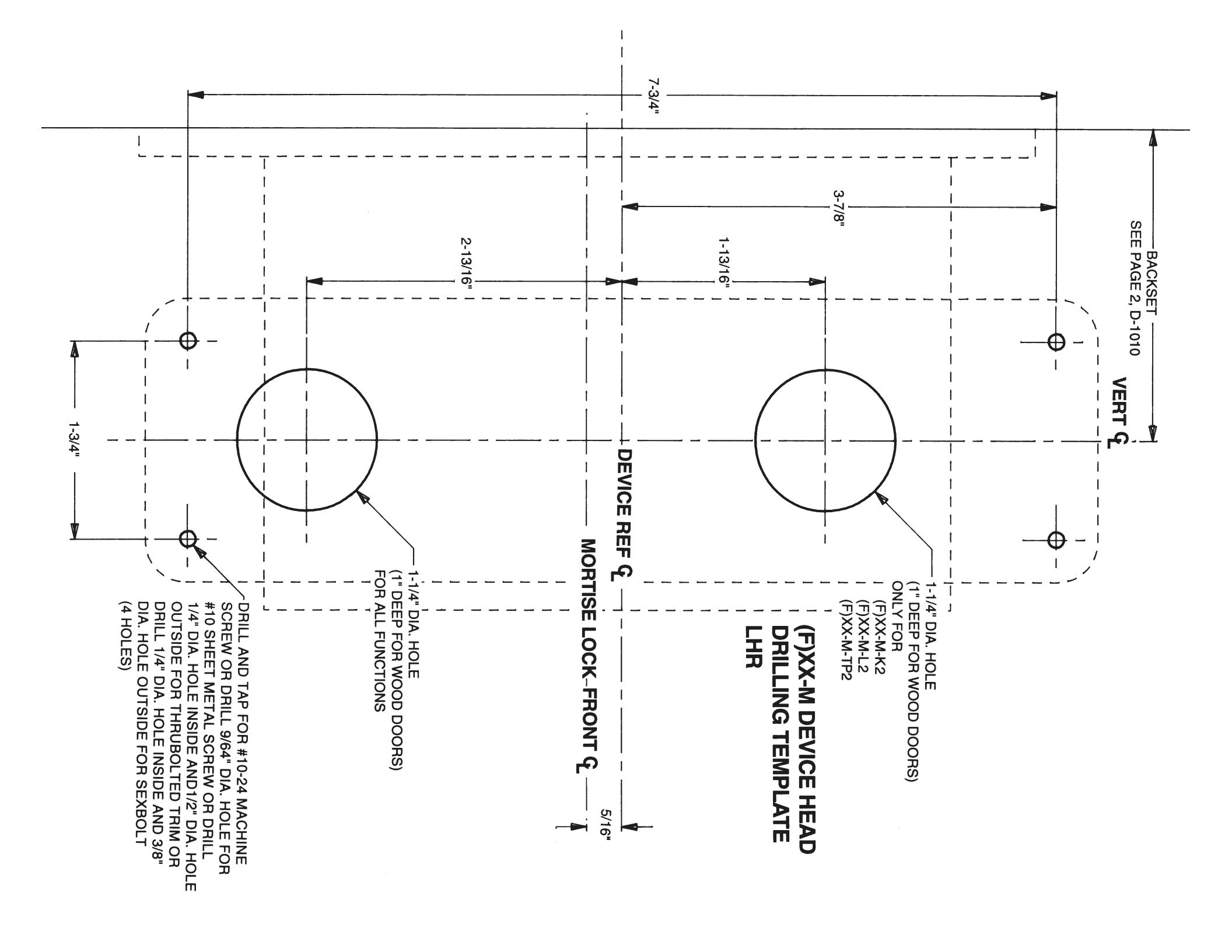

  • 1) CHOOSE CORRECT DRILLING TEMPLATE FROM THE CENTER OF THIS BOOK.

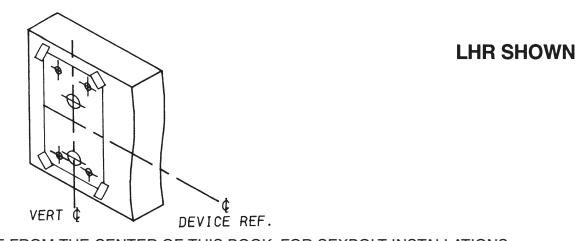

  • 2) TAPE DRILLING TEMPLATE ON DOOR USING VERTICAL ÇAND DEVICE REF. Ç (REFER TO 2), CENTERPUNCH AND DRILL HOLES, TAP IF REQUIRED, FOR DEVICE MOUNTING. AFTER DRILLING HOLES, REMOVE DRILLING TEMPLATE.

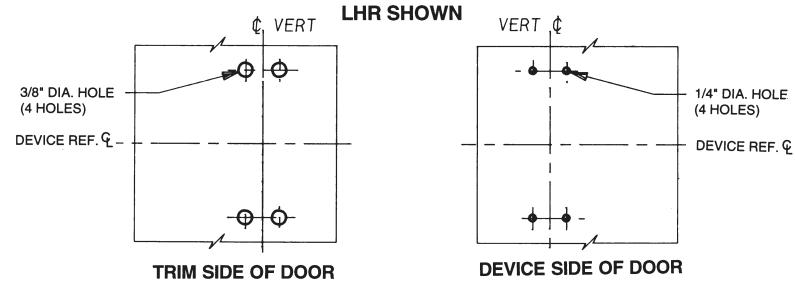

3) CHOOSE CORRECT DRILLING TEMPLATE FROM THE CENTER OF THIS BOOK. FOR SEXBOLT INSTALLATIONS, DRILL 3/8" DIAMETER HOLES ON TRIM SIDE OF DOOR ONLY. (SEE DIAGRAM BELOW)

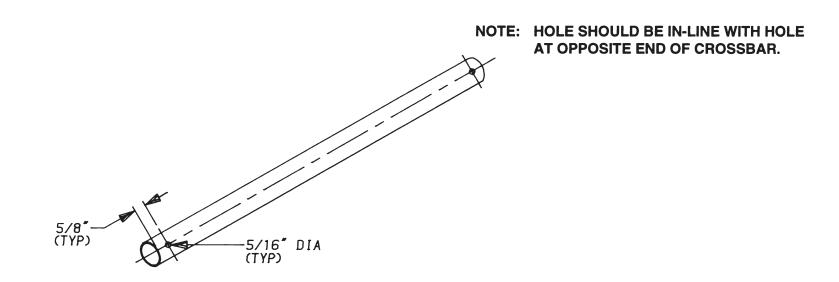

  • 4) DETERMINE CROSSBAR LENGTH:

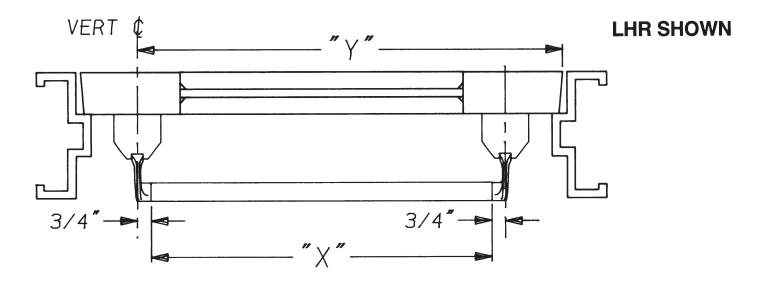

    • A) MEASURE DISTANCE BETWEEN VERTICAL \P AND EDGE OF DOOR. (DIMENSION "Y" BELOW) B) CALCULATE CROSSBAR LENGTH "X" USING FORMULA BELOW.

"X" = "Y" - 4-1/4"

6)

NOTE:

THIS PRODUCT IS FACTORY HANDED. IF YOU HAVE RECEIVED THE WRONG HANDING, A REPLACEMENT MUST BE ORDERED.
