XX-M DOUBLE CYLINDER INSTALLATION INSTRUCTIONS
COVER
0
XX-M DOUBLE CYLINDER INSTALLATION

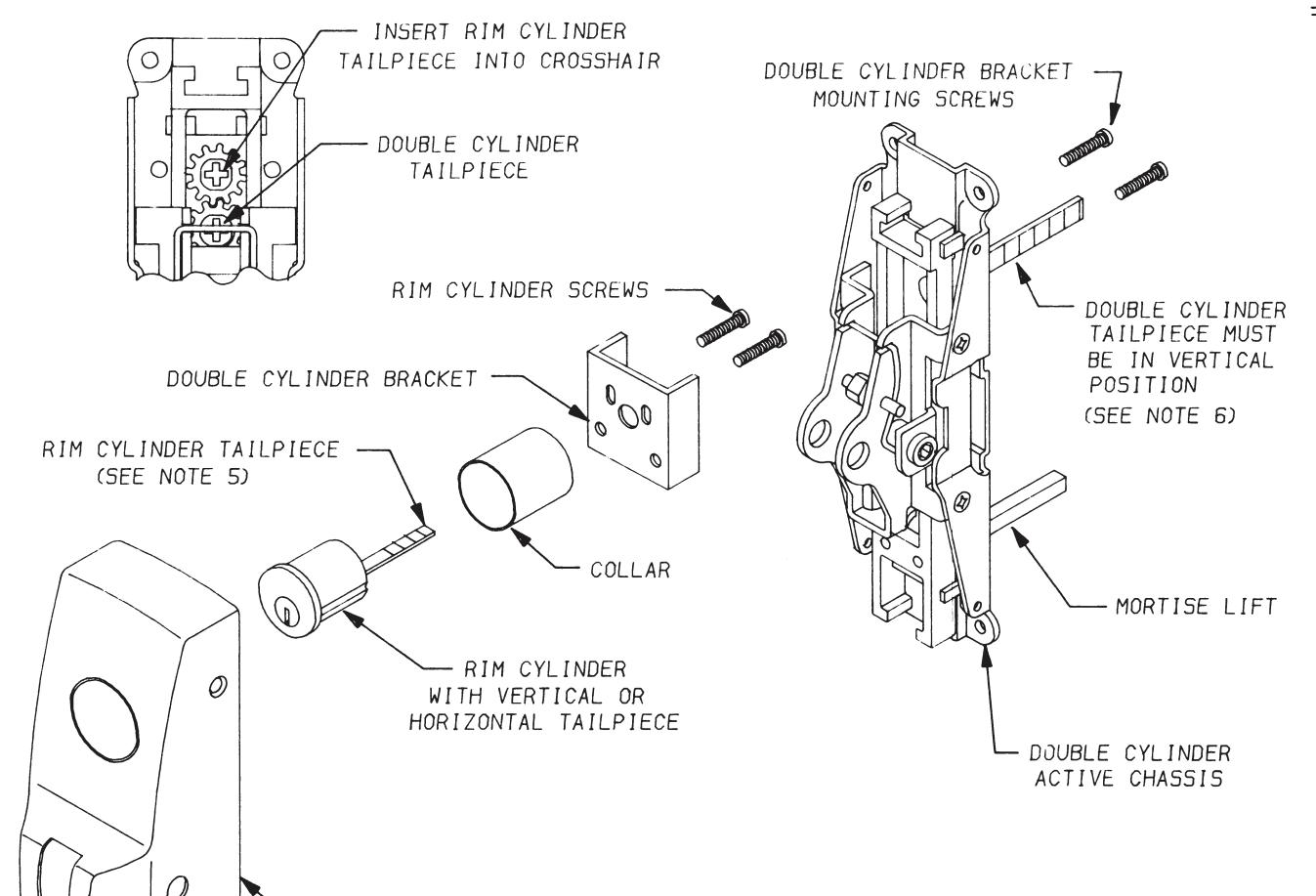

- 1. INSTALL MORTISE LOCK INTO DOOR WITH PROPER HANDING. NOTE: DOUBLE CYLINDER LOCKS ARE NOT FIELD REVERSIBLE.
- 2. REMOVE COVER OF ACTIVE CHASSIS (4 SCREWS) ARM AXLE AND ARM.
- 3. INSTALL RIM CYLINDER INTO COLLAR AND MOUNTING BRACKET WITH RIM CYLINDER SCREWS.
- 4. INSTALL MOUNTING BRACKET ASSEMBLY ONTO DEVICE WITH THE RIM CYLINDER TAILPIECE INSERTED INTO CROSSHAIR. IMPORTANT: THE DOUBLE CYLINDER TAILPIECE REMAINS VERTICAL WHILE INSERTING INTO
- 5. BREAK OFF RIM CYLINDER TAILPIECE FLUSH WITH BACK OF DEVICE
- 6. CHECK DOUBLE CYLINDER TAILPIECE PROJECTION FROM BACK OF DEVICE BY DOOR THICKNESS SEE CHART BELOW.
| DOO | R THICKNESS | PROJECTION |
|---|---|---|
| 1 3/4" | 7/8* | |
| 2 1/4" | 1 1/8" |
MORTISE LOCK.
7. PROCEED WITH DEVICE INSTALLATION
