Falcon X-Series Functions X101 X581 Square Corner 1in Latch for Wood Doors Template 108122

X-Series

X101-X581

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1C\v" (44mm) – 2" (51mm) Faceplate: Square Corner, 1" (25mm) wide

Backsets: FX102-C, 2C\," (60mm) | FX102-D, 2C\v" (70mm) | FX102-F, 5" (127mm)

Dimensions shown in parentheses () are in millimeters.

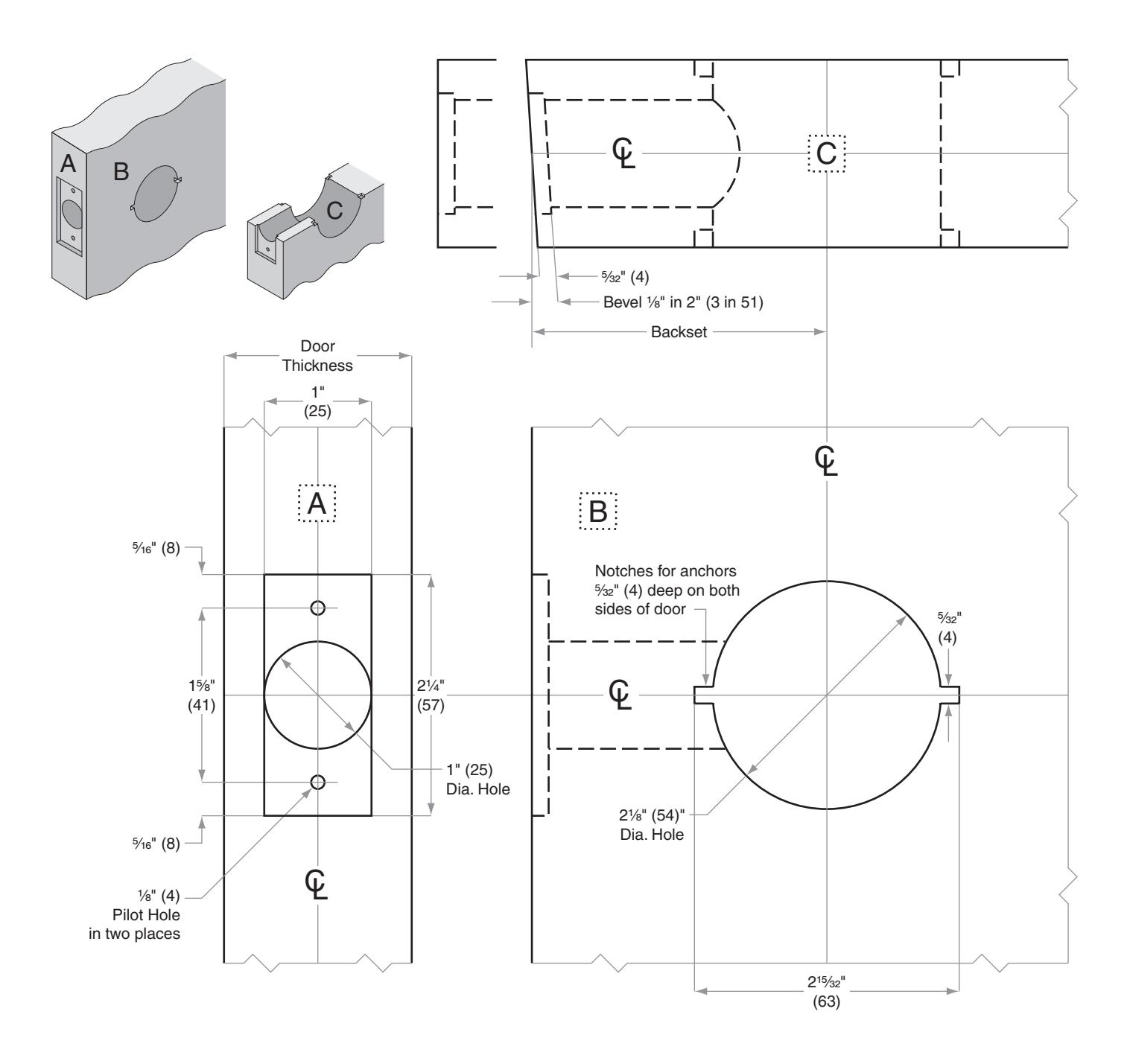

Door preparation template

FX102
