Falcon X-Series Functions X101 X581 Square Corner 1-1by8in Latch for Wood Doors Template 108120

X-Series X101-X581

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1C\v" (44mm) – 2" (51mm) Faceplate: Square Corner, 1Z\," (29mm) wide

Backsets: FX100-C, 2C\," (60mm) | FX100-D, 2C\v" (70mm) | FX100-F, 5" (127mm)

Dimensions shown in parentheses () are in millimeters.

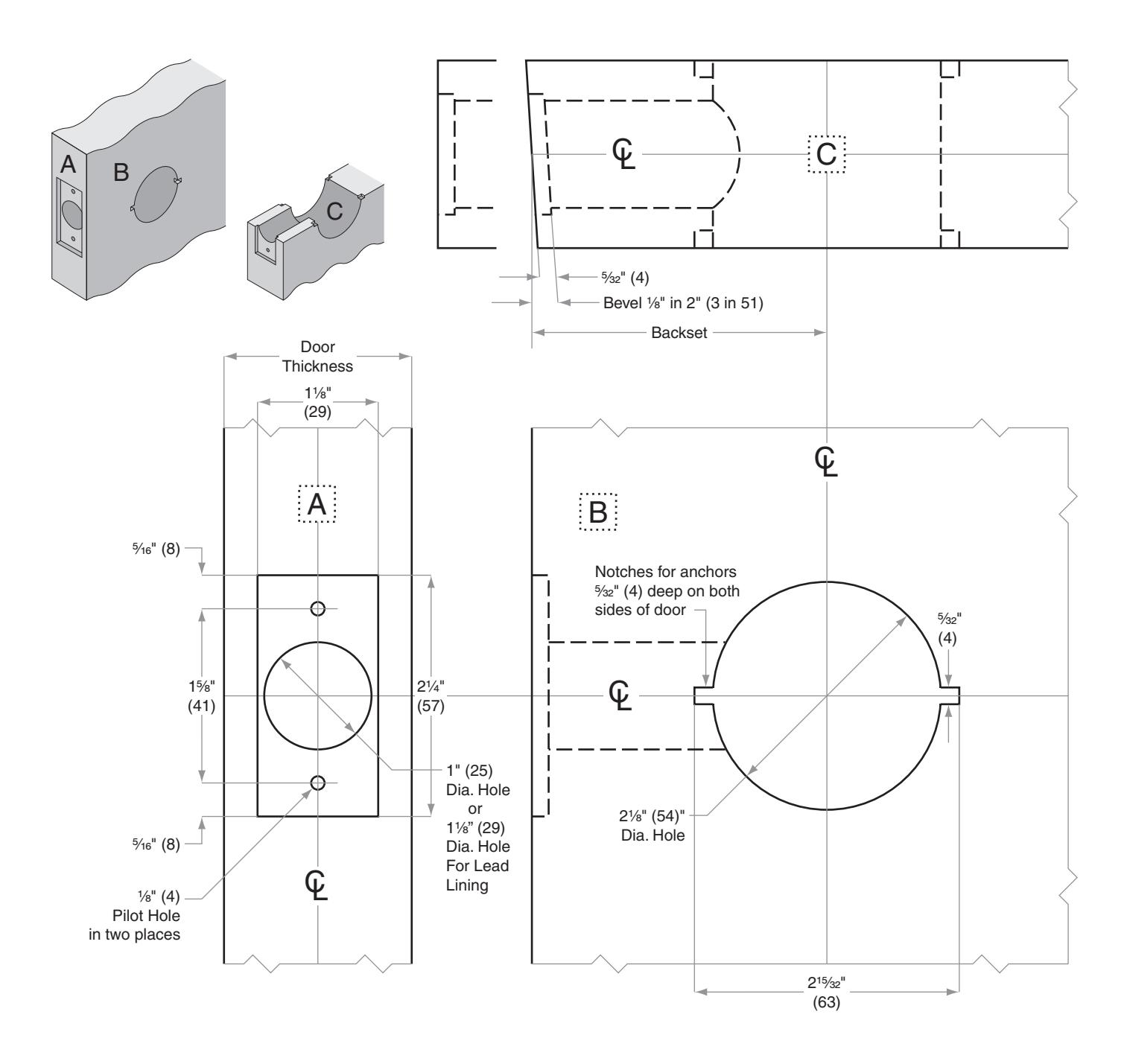

Door preparation template
