FALCON <sub>®</sub>

X-Series

Door Type:Metal, Flat or BeveledDoor Thickness:1¾" (44mm) - 2" (51mm)Faceplate:Square Corner, 1½" (29mm) wide

Backsets: FX101-C, 2%" (60mm) | FX101-D, 2%" (70mm) | FX101-F, 5" (127mm)

For metal door installations, suitable reinforcement is required to support latch in center of door and to prevent lateral movement

Dimensions shown in parentheses () are in millimeters.

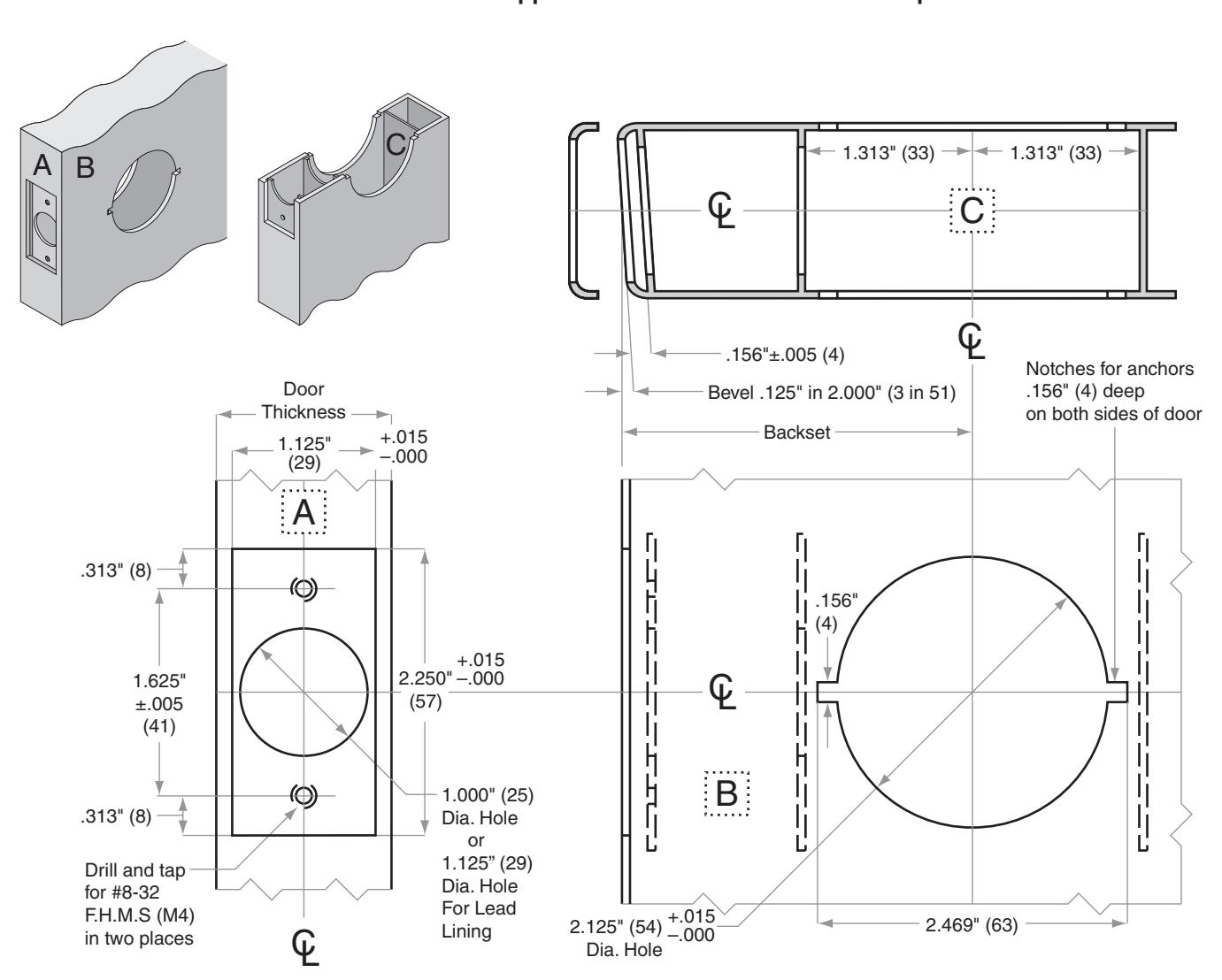

Door preparation template
