Falcon X-Series Functions X101 X581 Round Corner 1in Latch for Wood Doors Template 108126

X-Series

X101-X581

Door Type: Wood or Composite, flat or beveled

Door Thickness: 1C\v" (44mm) – 2" (51mm)

Faceplate: Round Corner, Z\v" (6mm) Radius, 1" (25mm) wide

Backsets: FX106-C, 2C\," (60mm) | FX106-D, 2C\v" (70mm) | FX106-F, 5" (127mm)

Dimensions shown in parentheses () are in millimeters.

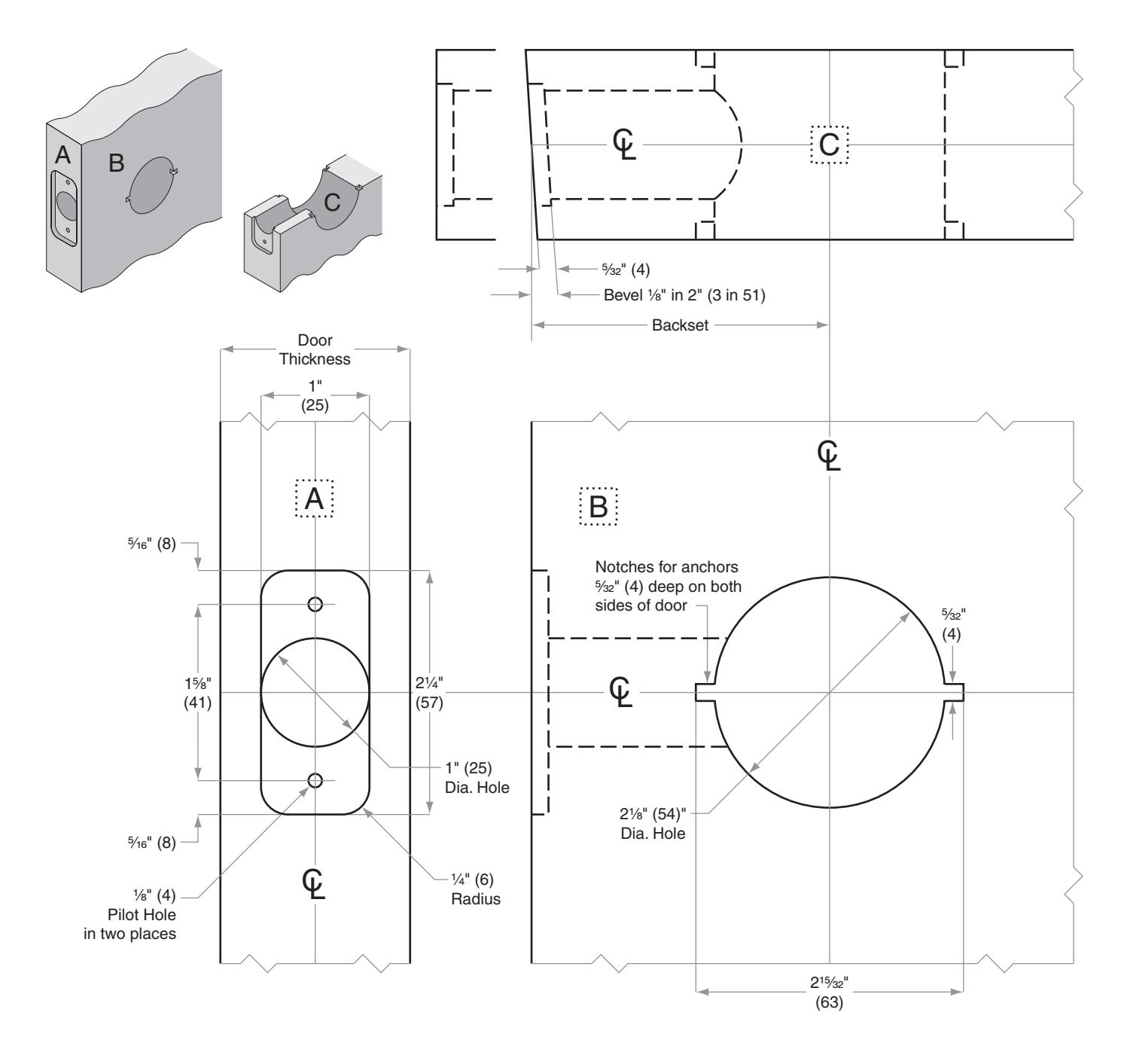

Door preparation template
