Falcon X-Series Functions X101 X581 Round Corner 1in Latch for Metal Doors Template 108127

FALCON ®

X-Series X101-X581

Door Type: Metal, Flat or Beveled Door Thickness: 1¾" (44mm) – 2" (51mm)

Faceplate: Round Corner, ¼" (6mm) Radius, 1" (25mm) wide

Backsets: FX107-C, 2%" (60mm) | FX107-D, 2%" (70mm) | FX107-F, 5" (127mm)

For metal door installations, suitable reinforcement is required to support latch in center of door and to prevent lateral movement

Dimensions shown in parentheses () are in millimeters.

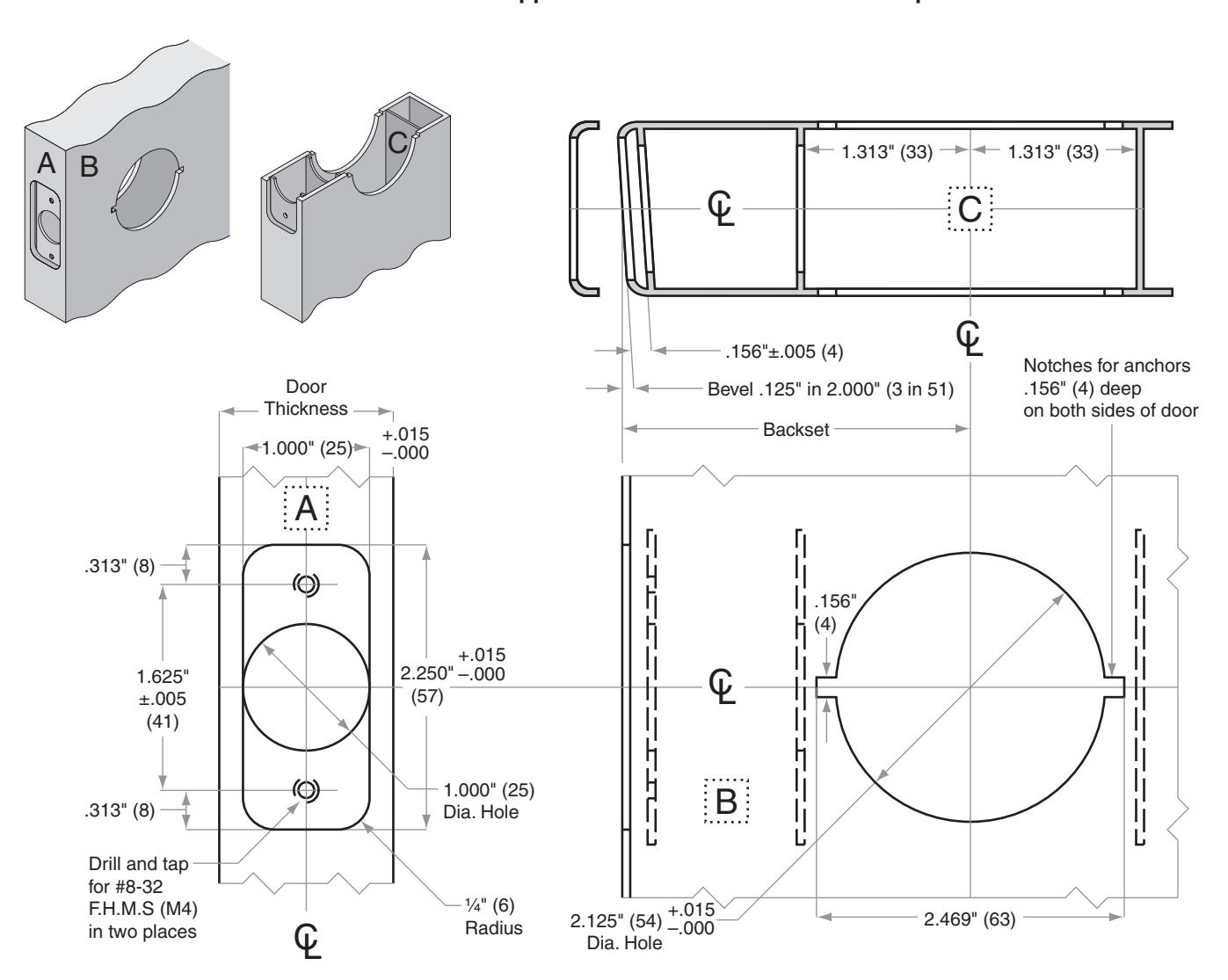

Door preparation template
