Falcon X-Series Function X12 for Metal Doors Template 108129

Door Type: Metal Door Thickness: Any Faceplate: None Backsets: Various

Dimensions shown in parentheses () are in millimeters.

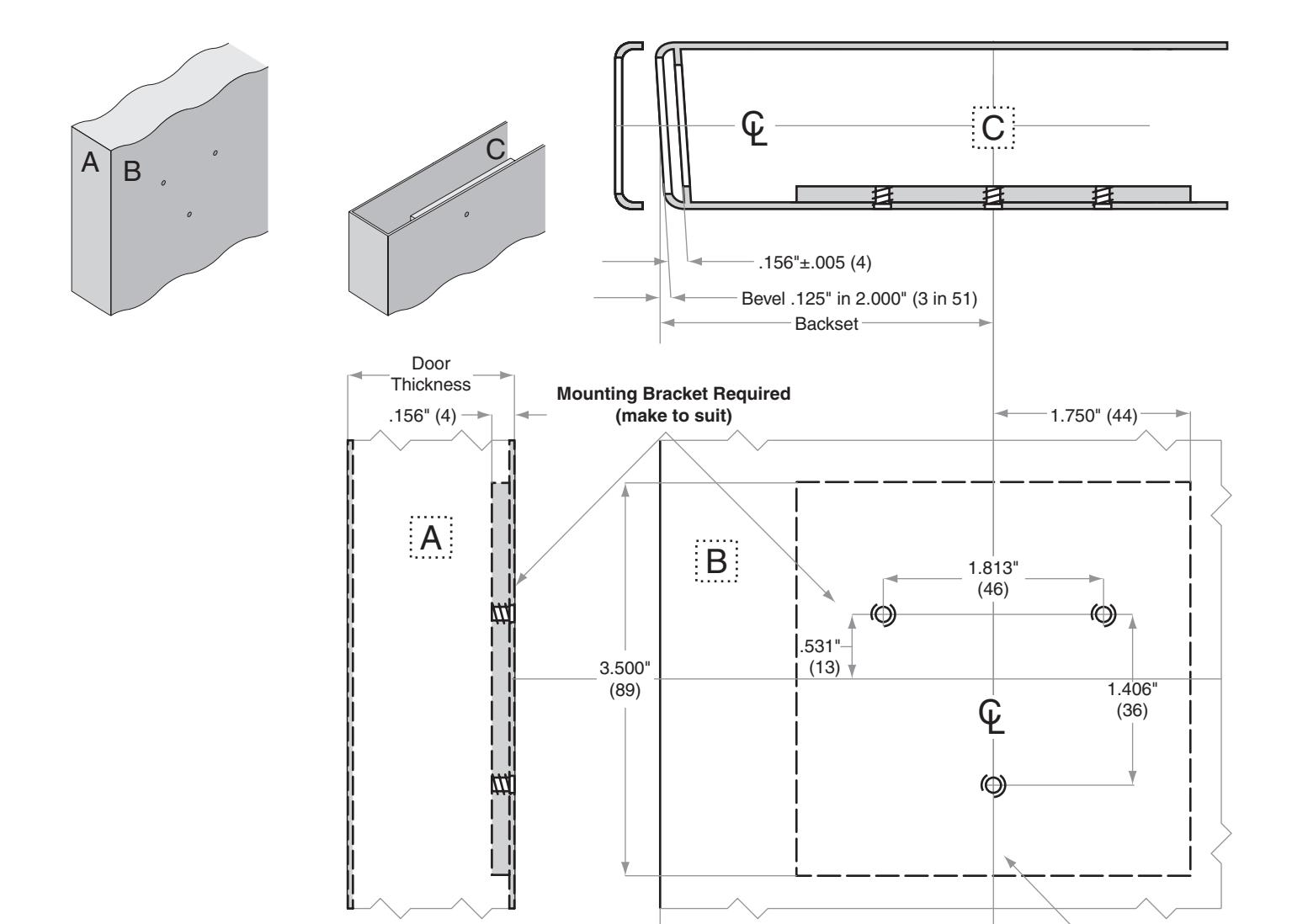

Door preparation template

Drill and tap for #12-24 F.H.M.S. (M4) in two places

Backset as specified to match active leaf lock location, or lock location on other doors in project

FX109
