Falcon W Small Rose Template 108119

Open the original PDF document

W-Series

Door Type: Metal, Flat or Beveled Door Thickness: 1. 375" (35mm) – 2" (51mm) Faceplate: Square Corner, 1.125" (29mm) wide

Backsets: FW103-C, 2.375" (60mm) | FW103-D, 2.75" (70mm)

For metal doors installations, suitable reinforcement is required to support latch in center of door and to prevent lateral movement.

Dimensions shown in parentheses () are in millimeters.

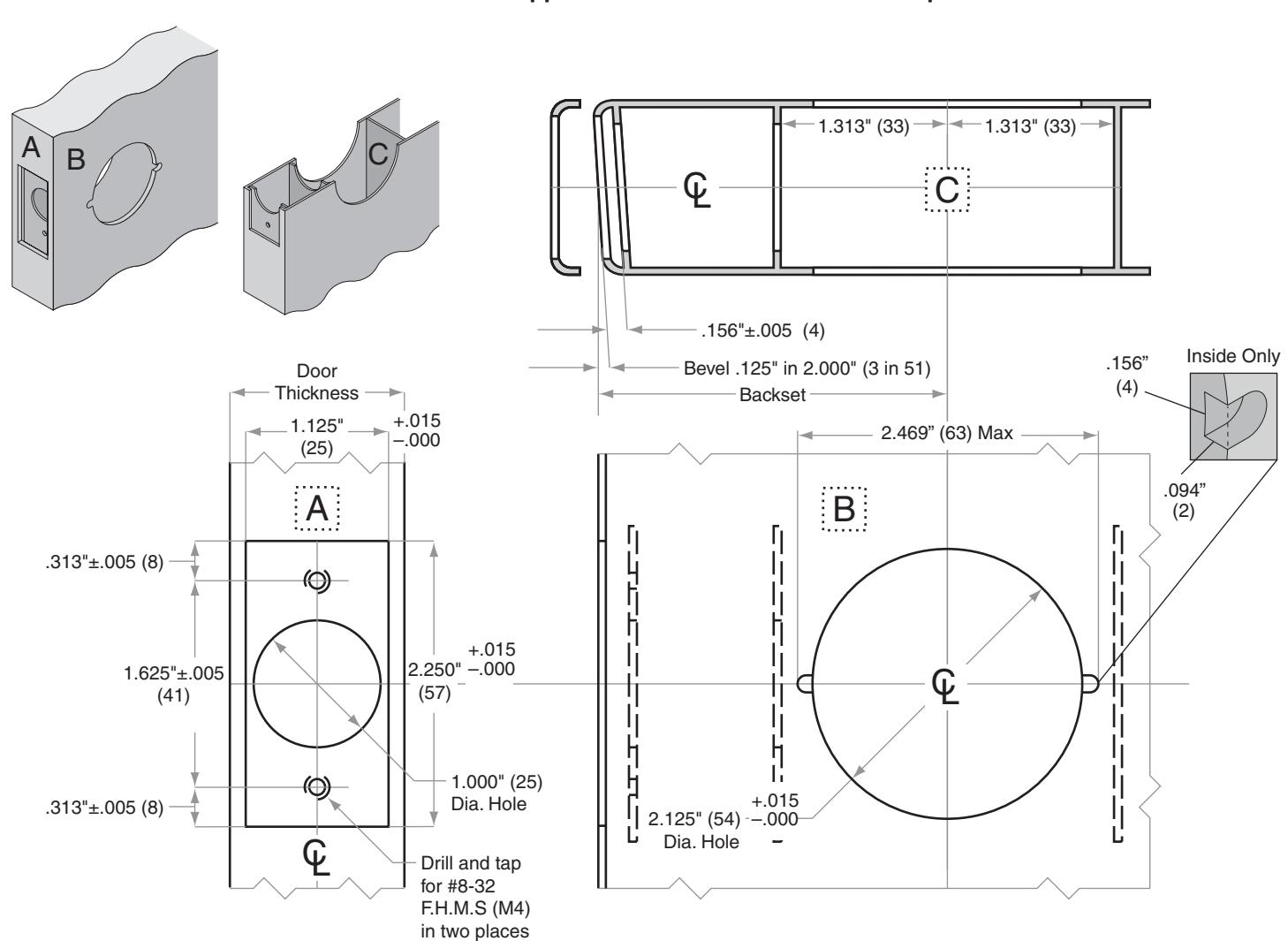

Door preparation template
