W-Series

W Small Rose W101-W711

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1C\," (35mm) – 2" (51mm) Faceplate: Square Corner, 1Z\," (29mm) wide

Backsets: FW102-C, 2C\," (60mm) | FW102-D, 2C\v" (70mm)

Dimensions shown in parentheses () are in millimeters.

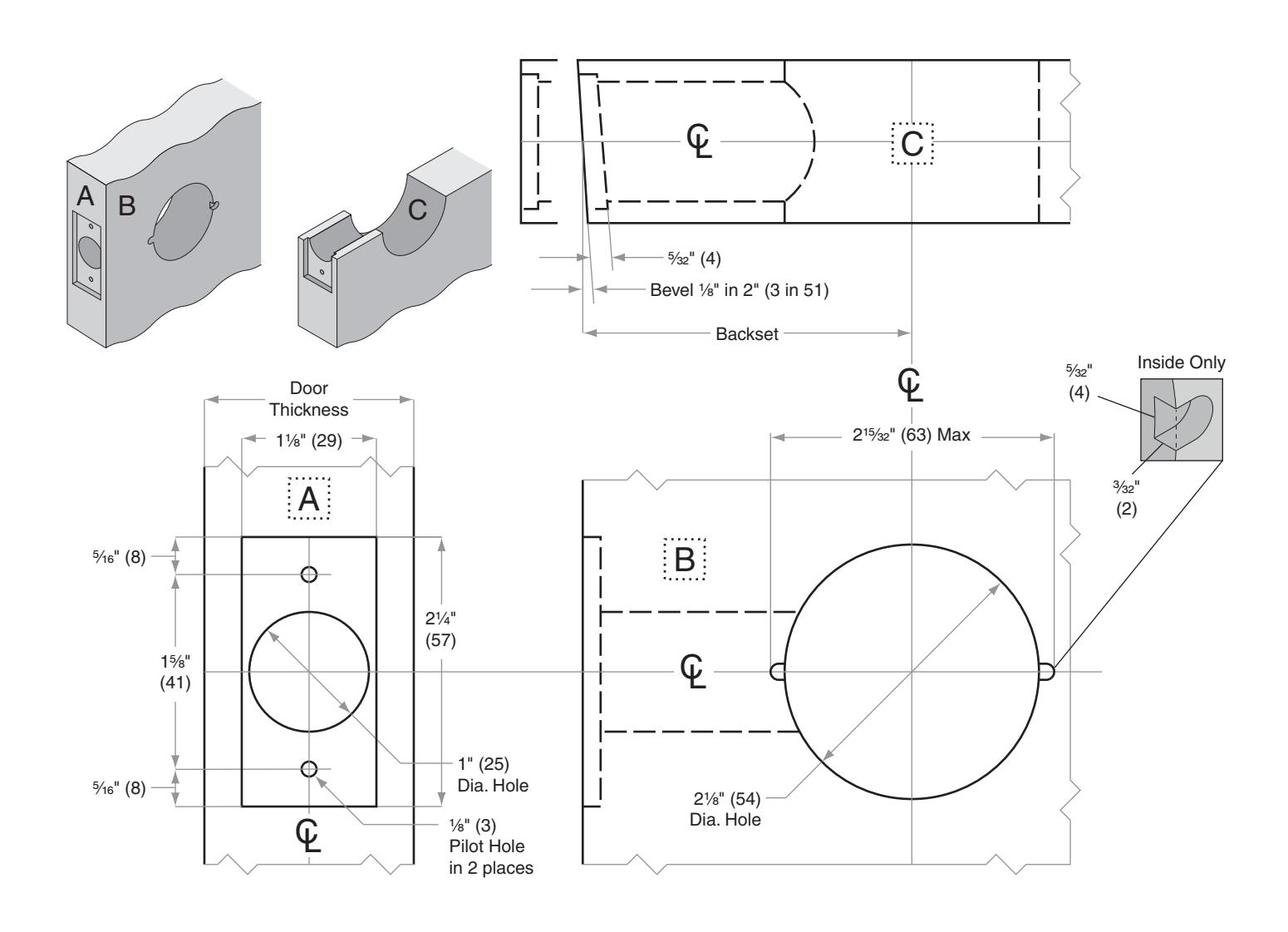

Door preparation template
