Falcon W-Series Functions W101 W711 Square Corner 1in Latch for Wood Doors Template 108111

W-Series

W101-W711

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1C\," (35mm) – 2" (51mm) Faceplate: Square Corner, 1" (25mm) wide

Backsets: FW102-C, 2C\," (60mm) | FW102-D, 2C\v" (70mm)

*Mounting post holes are optional for levers only and cannot be used with knobs.

Dimensions shown in parentheses () are in millimeters.

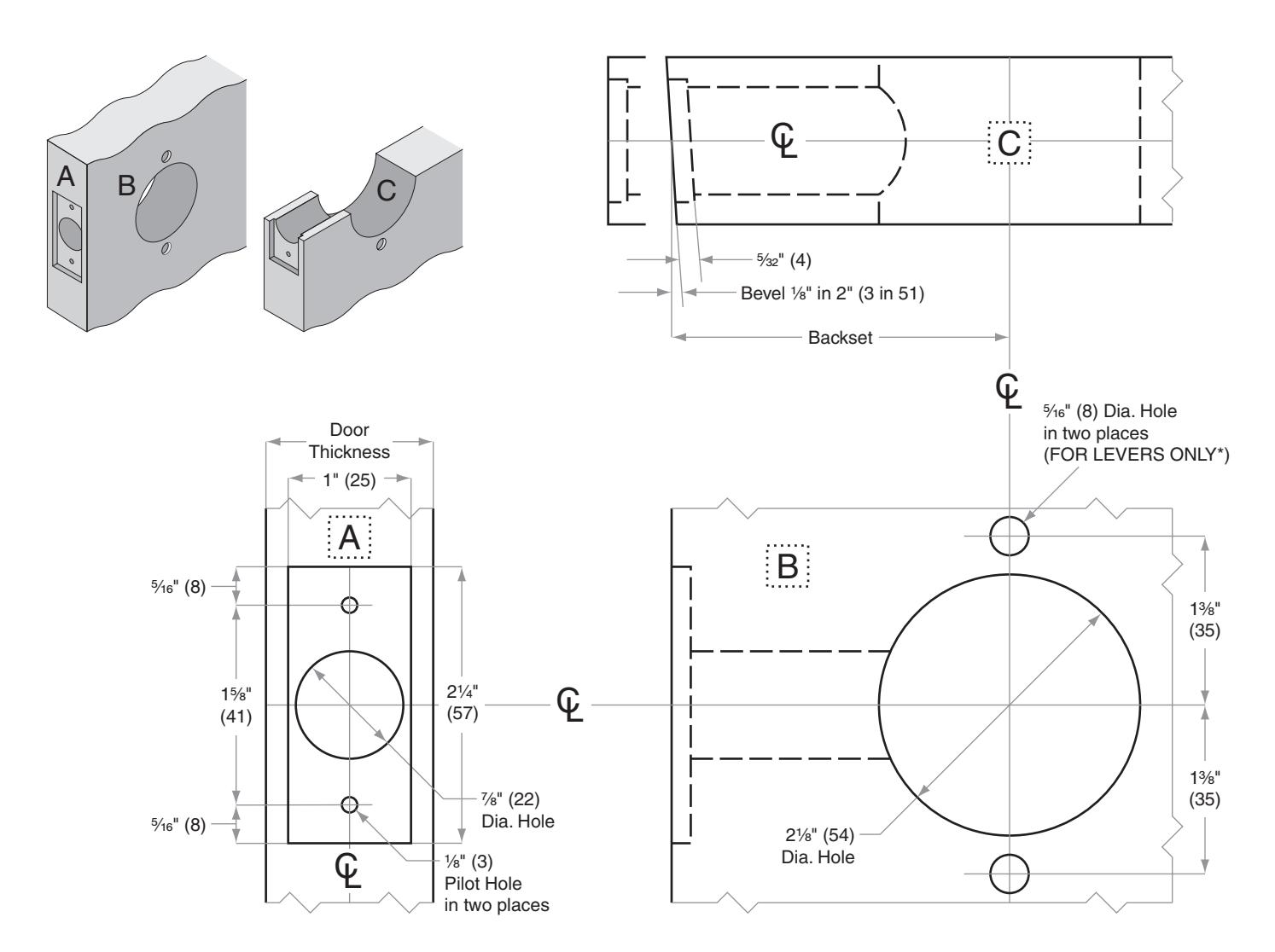

Door preparation template
