Falcon W-Series Functions W101 W711 Square Corner 1in Latch for Metal Doors Template 108112

FALCON ®

W-Series

Door Type:Metal, Flat or BeveledDoor Thickness:1%" (35mm) - 2" (51mm)Faceplate:Square Corner, 1" (25mm) wide

Backsets: FW103-C, 2%" (60mm) | FW103-D, 2%" (70mm)

^* Mounting post holes are optional for levers only and cannot be used with knobs.

Dimensions shown in parentheses () are in millimeters.

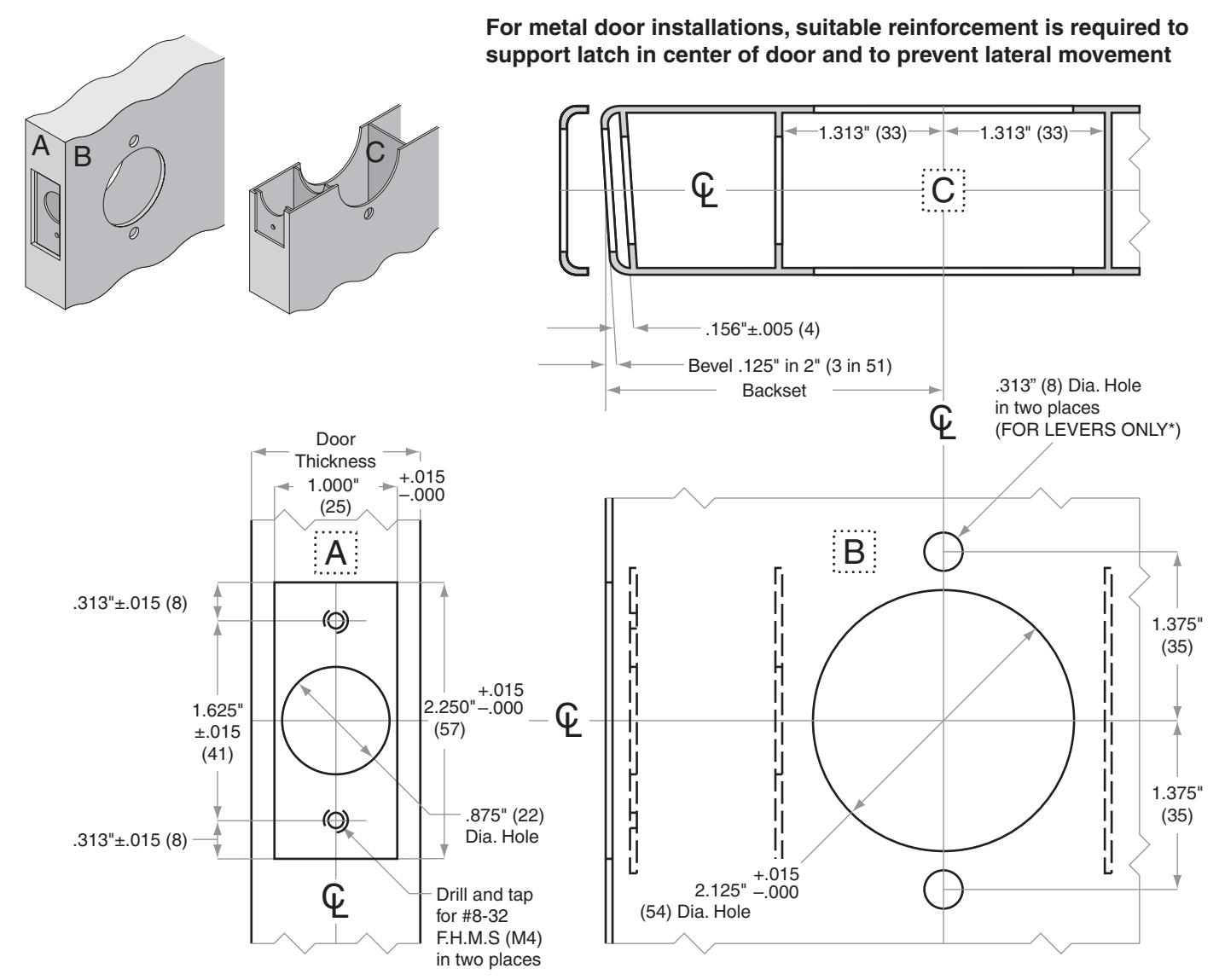

Door preparation template
