Falcon W-Series Functions W101 W711 Square Corner 1-1by8in Latch for Wood Doors Template 108109

W-Series W101-W711

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1C\," (35mm) – 2" (51mm) Faceplate: Square Corner, 1Z\," (29mm) wide

Backsets: FW100-C, 2C\," (60mm) | FW100-D, 2C\v" (70mm)

^* Mounting post holes are optional for levers only and cannot be used with knobs.

Dimensions shown in parentheses () are in millimeters.

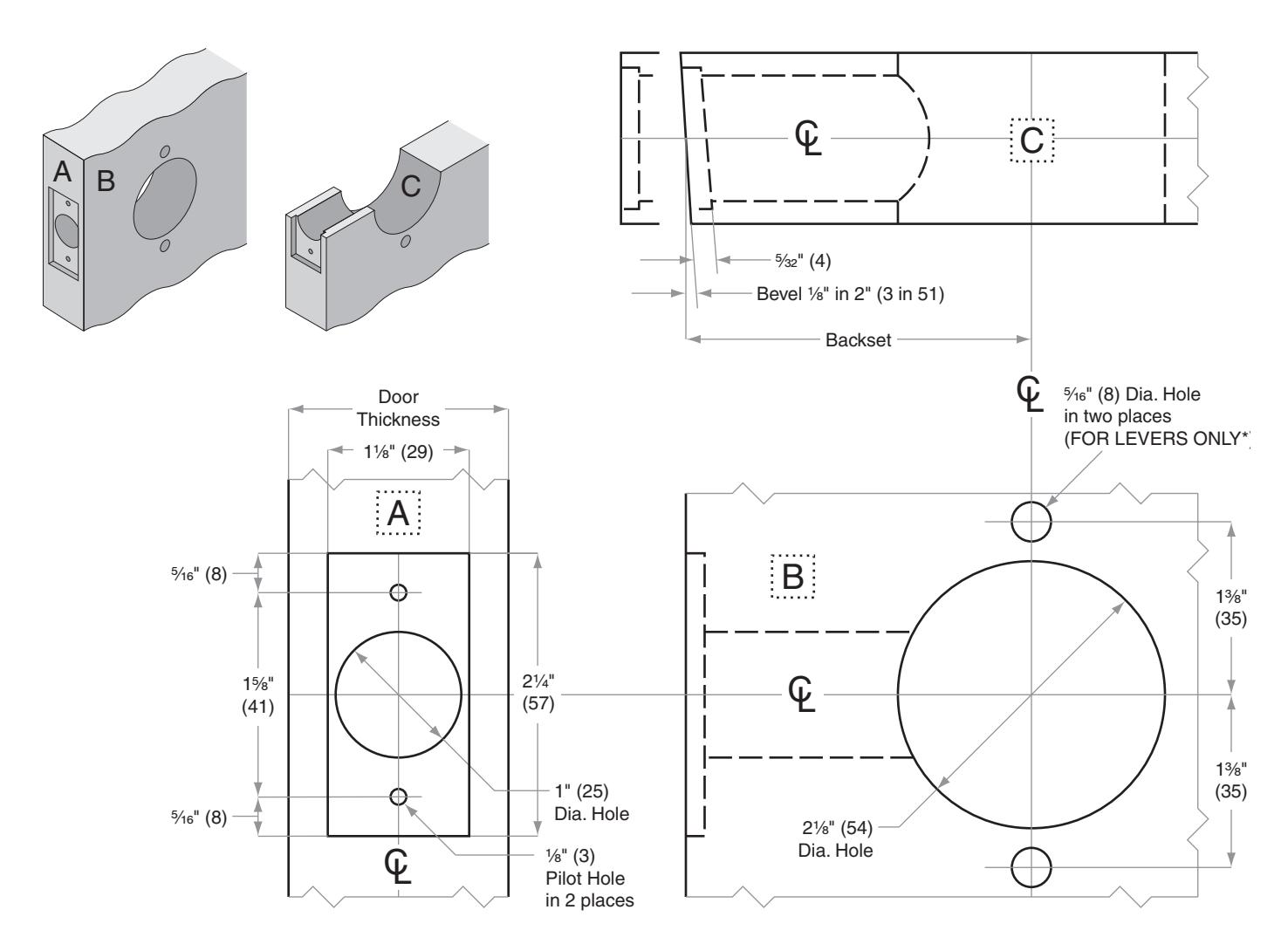

Door preparation template
