Falcon W-Series Functions W101 W711 Square Corner 1-1by8in Latch for Metal Doors Template 108110

W-Series W101-W711

Door Type: Metal, Flat or Beveled Door Thickness: 1C\," (35mm) – 2" (51mm) Faceplate: Square Corner, 1Z\," (29mm) wide

Backsets: FW101-C, 2C\," (60mm) | FW101-D, 2C\v" (70mm)

For metal doors installations, suitable reinforcement is required to support latch in center of door and to prevent lateral movement

^* Mounting post holes are optional for levers only and cannot be used with knobs.

Dimensions shown in parentheses () are in millimeters.

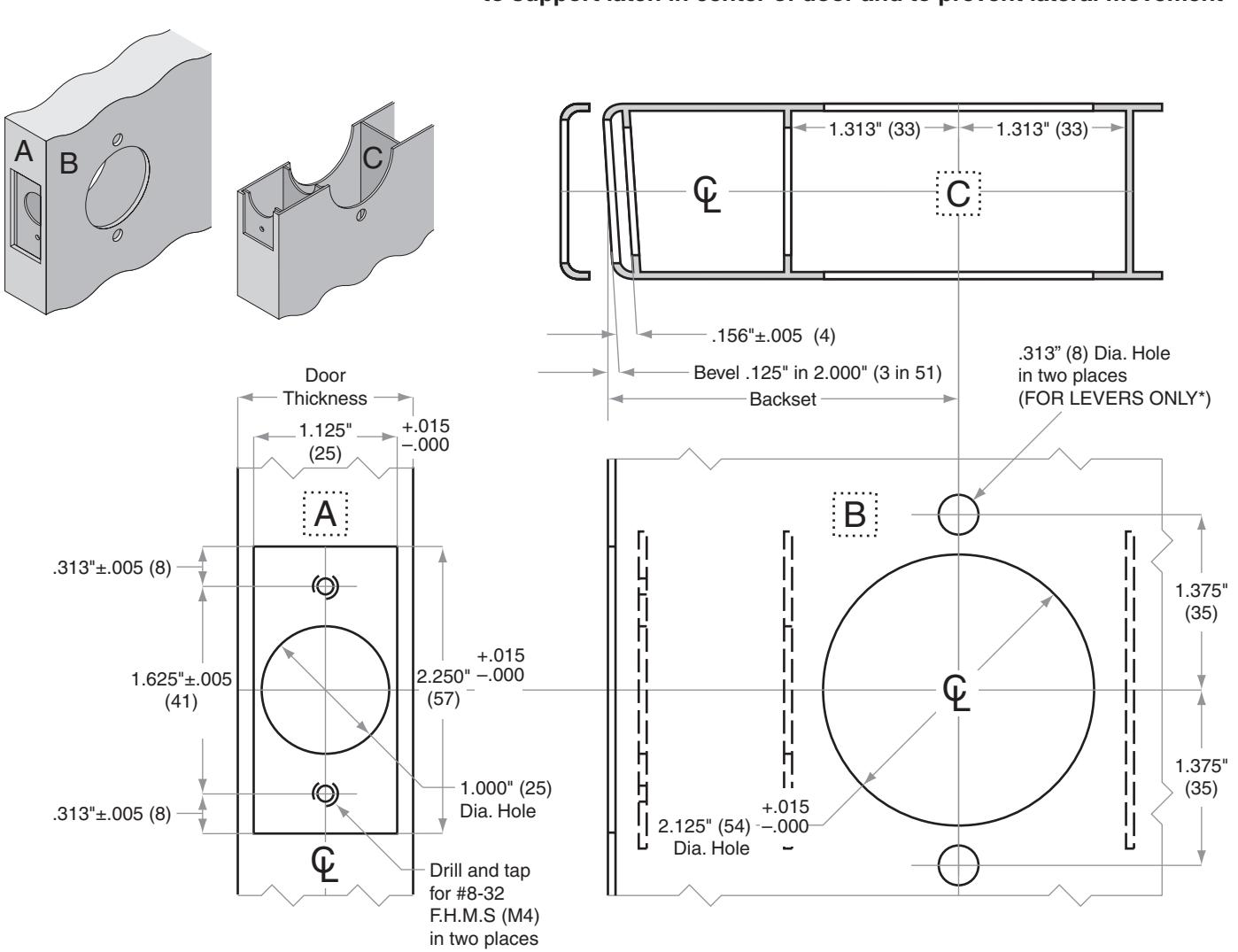

Door preparation template
