Falcon W-Series Functions W101 W711 Round Corner 1in Latch for Wood Doors Template 108113

W-Series W101-W711

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1C\," (35mm) – 2" (51mm)

Faceplate: Round Corner, Z\v" (6mm) Radius, 1" (25mm) wide Backsets: FW104-C, 2C\," (60mm) | FW104-D, 2C\v" (70mm)

*Mounting post holes are optional for levers only and cannot be used with knobs.

Dimensions shown in parentheses () are in millimeters.

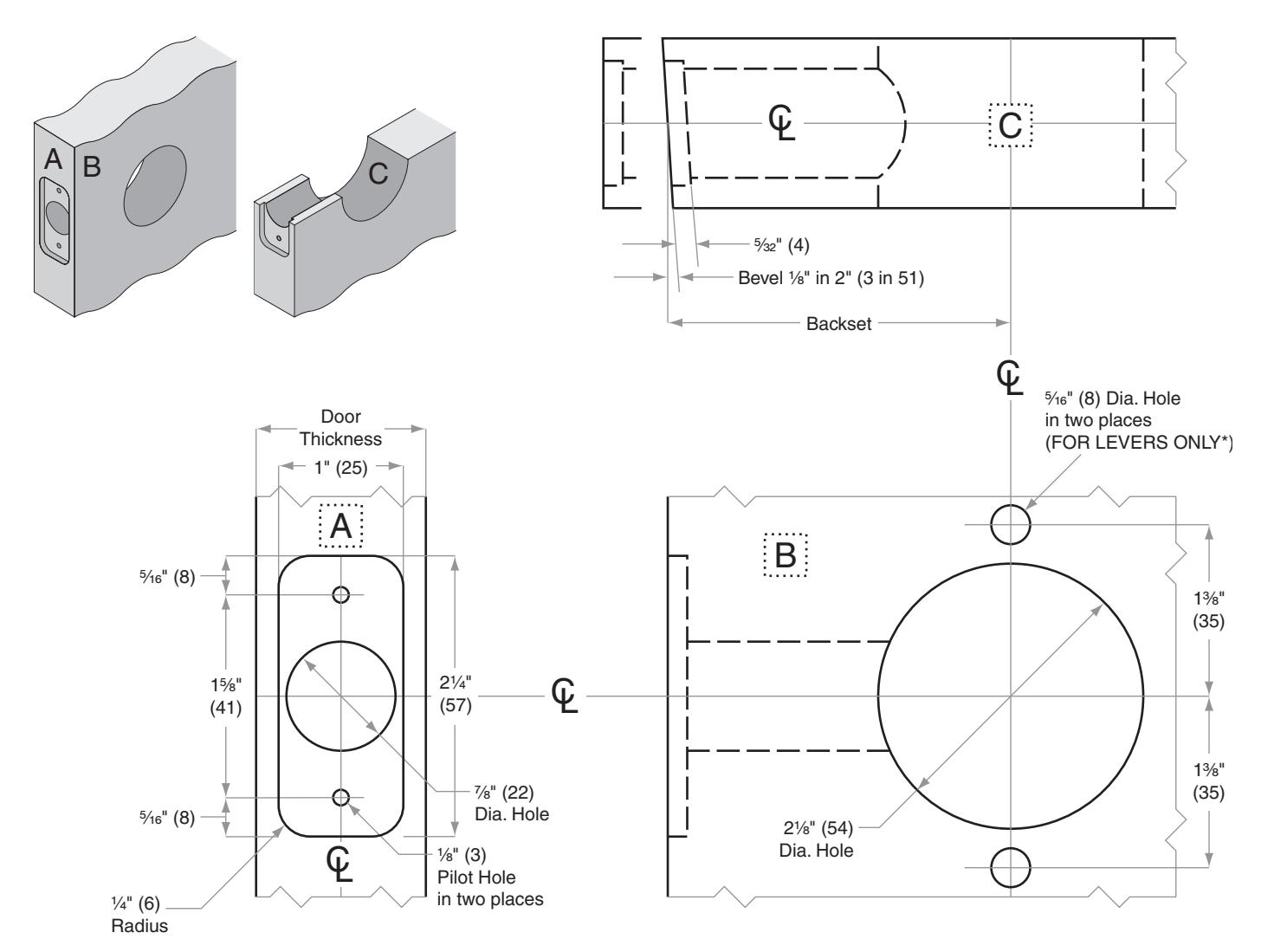

Door preparation template
