Falcon W-Series Function W12 for Metal Doors Template 108115

W-Series W12

Door Type: Metal Door Thickness: Various Faceplate: None Backsets: Any

CANNOT BE MOUNTED BACK TO BACK

Backset as specified to match active leaf lock location, or lock location on other doors in project

Dimensions shown in parentheses () are in millimeters.

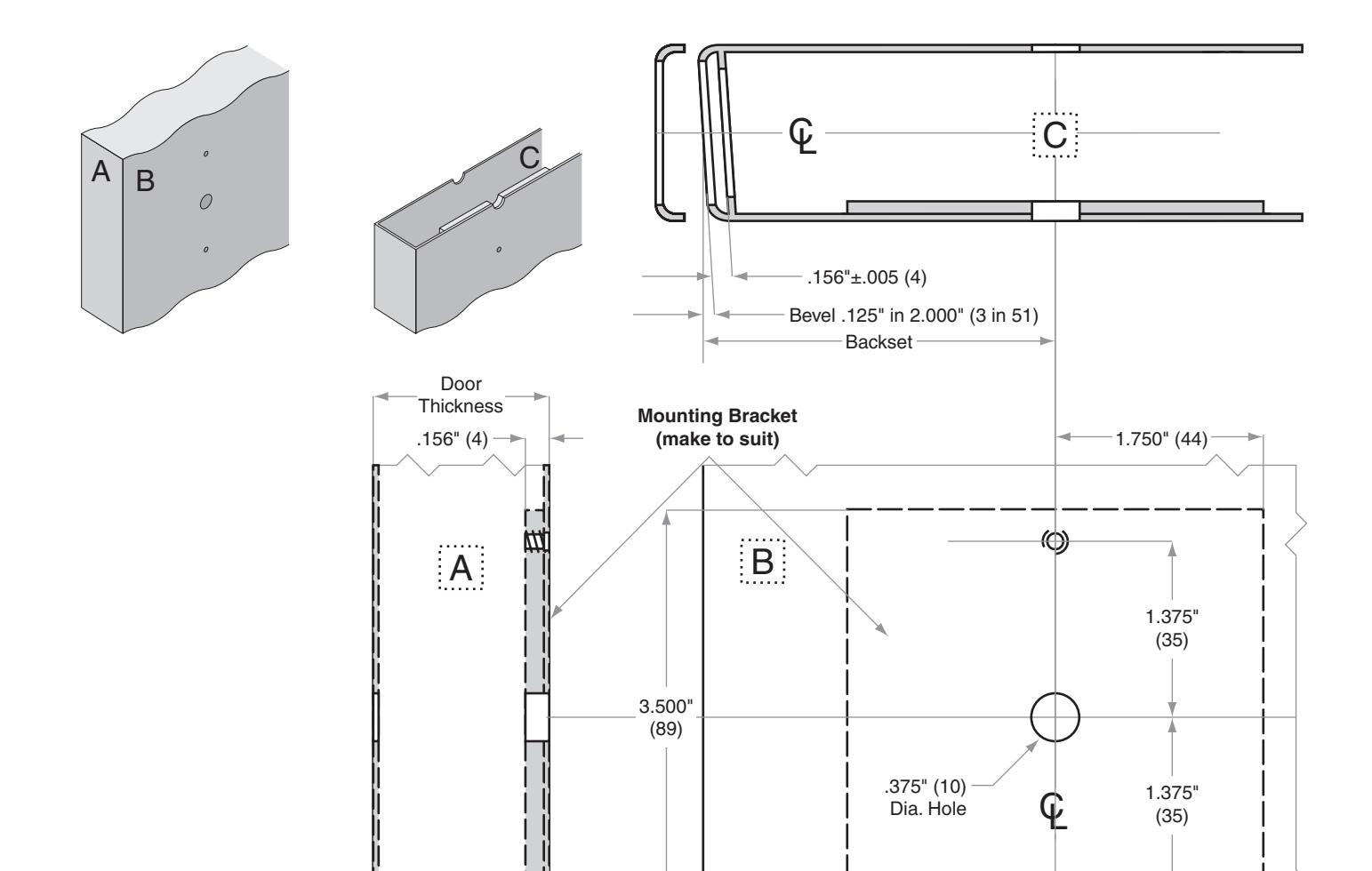

Door preparation template

Drill and tap for #8-32 F.H.M.S. (M4) in two places (Levers Only)
