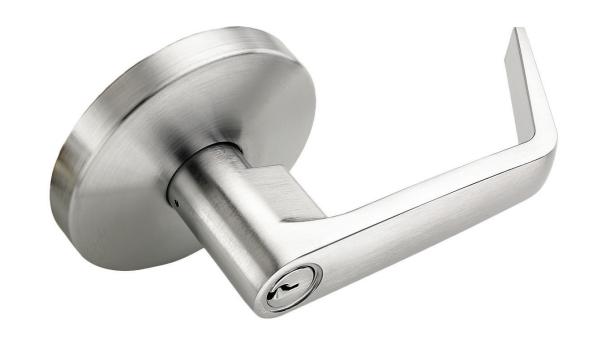

Grade 2, medium-duty cylindrical lever and knob locks

W Series

Overview

Designed to offer more functions and finish options than other grade 2 locks, W Series has what you need at the right price. With seven popular lever styles along with two knob styles and your choice of rose diameters (large and small), Falcon® W Series can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections as well as Schlage C keyway, which we now masterkey across the complete Falcon product line. The Falcon W Series offers quality product at a value price, and is backed by one of the best names in the business—Allegion.

Finishes

605 Bright Brass

606 Satin Brass

613 Oil Rubbed Bronze

619 Satin Nickel 1 1

622 Matte Black

625 Bright Chrome

626 Satin Chrome

643e Aged Bronze 1

Lever styles

Avalon (AVA) Boardwalk (BRK) Broadway (BRW) Dane (DAN)

Dane with abrasive tactile warning (6DA)1

Latitude (LAT)

Longitude (LON)

Quantum (QUA) Quantum with abrasive tactile warning (6QU)1

Knob styles

Elite (ELI) Hana (HAN)

Rose styles

Standard rose Dane lever shown

Small rose (SR) Available on levers only Dane lever shown

Dimensions

Lever	Width	Projection
Avalon (AVA)	4 1 ⁄2"	2 1 ⁄2"
Boardwalk (BRK)	5"	2 1 ⁄2"
Broadway (BRW)	4 1 ⁄2"	2 1 ⁄2"
Dane (DAN)	4 5⁄8"	2 1 ⁄2"
Latitude (LAT)	4 1 ⁄2"	2 3⁄8"
Longitude (LON)	5"	2 3⁄8"
Quantum (QUA)	4 5⁄8"	2 3⁄8"

Knob	Width	Projection
Elite (ELI)	2 1/8"	2 15/32"
Hana (HAN)	2 3/16"	2 9/16"

Rose	Diameter
Standard	3 3⁄8"
Small (SR)	2 9⁄16"

Note: Return to door meets 1 ⁄2" requirement for Dane (DAN), Quantum (QUA), Boardwalk (BRK)and Longitude (LON) levers.

Specify lever only if standard rose is desired. When ordering small rose you must specify both rose and lever. Example: Small rose-Avalon specify as SRA; Small rose-Latitude specify as SRLA; Small rose-Quantum specify as SRQ.

FALCON ®

Functions

101 Falcon ANSI F75

Passage/closet latch

• Latch bolt operated by levers/knobs from either side at all times.
• Inside lever/knob always free for immediate egress.

161 Falcon ANSI F111

Communicating/exit set

• Latch bolt operated by inside lever/knob.
• Non-removable blank plate outside.
• Inside lever/knob always free for immediate

201 Falcon ANSI F77 Patio lock

• Latch bolt operated by levers/knobs.
• Outside lever/knob is locked by push button from inside. Rotating inside lever/knob or closing door releases button and unlocks outside lever/knob
• Inside lever/knob always free for immediate

301 Falcon ANSI F76

Bath/bedroom privacy

lock

• Latch bolt operated by levers/knobs from either side.
• Outside locked by push button on inside
• Rotating inside lever/knob or closing door releases button. Emergency release tool used on outside unlocks door.
• Inside lever/knob always free for immediate egress.

Entry lock

501

F82

• Latch bolt operated by lever/knob from either side.
• Push button locking. Button on inside locks outside lever/knob until unlocked by key outside or by rotating inside lever/knob.

Falcon

ANSI

■ Inside always free for immediate egress.

This lock will stay locked when the door is closed. If you want your door to unlock when it closes, please purchase the

Falcon 511 ANSI F109 Entry/office lock

• Turn/push button locking: Pushing and turning button locks outside lever/knob requiring use of key until button is manually unlocked.
• Push button locking: Pushing button locks outside lever/knob until unlocked by key or by rotating inside lever/knob.
• Inside lever/knob always free for immediate
• Latch bolt operated by levers/knobs.
• Key enables only unlocking from outside.

Functions

Falcon 561 ANSI F84

Classroom lock

• Latch bolt operated by lever/knob.
• Outside lever/knob is locked by key in out-
• Inside always free for immediate egress.

Falcon 571 ANSI F90

Dormitory/corridor lock

• Latch bolt operated by levers/knobs except when locked by push button from inside.
• Key in outside lever/knob locks or unlocks lever/knob and releases button.
• Closing door releases push button.
• Inside always free for immediate egress.

This lock will unlock when the door is closed. If you want your door to remain locked when it closes, please purchase the 501 function.

You cannot lock from outside using key, locking function inside only.

Falcon 581 ANSI F86 Storeroom lock

• Latch bolt operated by lever/knob inside or key outside.
• Outside lever/knob is inoperable.
• Inside always free for immediate egress.

Falcon 711 ANSI

Apartment entrance lock

• Latch bolt operated by levers/knobs.
• Turn/push button locking: Pushing and turning button locks outside lever/knob requiring use of a key for unlocking the door until button is manually unlocked.
• Push button locking:
• Pushing button locks outside lever until unlocked by key, by rotating inside lever, or by closing the door.
• Inside always free for immediate egress.

Falcon 12 ANSI

Dummy trim

Single trim, surface-mounted rigid lever.

Double dummy trim available for W Series levers only.

Cylinders

Conventional cylinder

L	Less 6-pin conventional cylinder
P	6-pin conventional cylinder (pinned to 5)
P6	6-pin conventional cylinder (pinned to 6)
CP6	6-pin conventional cylinder, Schlage C

Small format interchangeable core (SFIC)

B	Less SFIC
BB	7-pin SFIC, Best style
BDC	SFIC disposable construction core
G1	SFIC, Falcon style1
H	SFIC refundable construction core

¹ 6-pin standard, specify G7 if 7-pin is desired.

Availability of conventional cylinders in competitive keyways (6-pin)

The W Series lockset can be ordered with a conventional cylinder in a number of competitive open keyways. For a complete list of options see the Falcon catalog or price book.

Compatibility with competitors' SFIC cylinders

Falcon locksets also accept the following cores:

• Schlage
• Arrow (including Flex Core)
• Best (including PKS and Peaks)
• InstaKey
• Kaba Peaks
• Keymark
• KSP

When specifying "B" for less SFIC cylinder, please note that these manufacturer's cylinders all fit the Falcon lever and spring cage configuration. The appropriate Falcon tailpiece will be provided with the lockset.

Specifications

Chassis
Material	Parts constructed of brass or cold-formed steel, zinc plated and dichromated for
	rust resistance. Springs are stainless steel.
Door thickness	1 3⁄8" to 1 3⁄4" standard
Trim
Handing	Non-handed
Lever	Standard: Levers are pressure cast zinc (solid levers no inserts) material finished to match mating parts.
	Optional: Tactile feature
Rose	Roses are heavy wrought brass or bronze, installed over steel rose inserts which
	are through-bolted.
Latch
Backset	Standard rose: 2 3⁄4" backset
	Small rose: 2 3⁄8" backset
Faceplate	1 1 ⁄8" x 2 1 ⁄4", square corner faceplate
Latch	1" housing diameter, 1 ⁄2" throw
Strike	4 7 ⁄8" x 1 1 ⁄4" ANSI strike with curved lip to meet ANSI A115.2 door frame
	preparation standard
Keying
Cylinder format	Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available (at no cost) when specified. Optional 7-pin conventional and 6- or 7-pin Small Format Interchangeable Core (SFIC) cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
Keyway	"G" keyway standard on conventional cylinders; "A" keyway standard on SFIC cylinders. Additional options: Falcon, Schlage and many Best and Arrow keyways.
Screws
	Furnished with combination screws for use in wood or metal doors and frames.
Warranty
	Limited warranty, 10 years from date of manufacturer, see price book for details.
Certifications
ANSI/BHMA	Certified ANSI/BHMA A156.2, Series 4000, Grade 2
UL/cUL	Listed for 3-hour fire door, A label
CA Fire Code	All levers with a return to door of 1 ⁄2" (64 mm) or less comply (Boardwalk, Dane, Longitude and Quantum)
Federal	BAA Listed
Other	ADA compliant
