Falcon® Y lock discontinuation

The Grade 2 tubular Falcon Y lock has been discontinued and is no longer available in the Falcon lock portfolio. Moving forward, customers desiring a narrow stile Grade 2 lock with comparable features, options and price point can order the Falcon W Series small rose.

Falcon W Series small rose

Falcon offers a small rose option for the Falcon W cylindrical lock. The W Series small rose has the same diameter as the Falcon Y lock, approximately 2-9/16"; the same door prep, and same applications with more functions.

Features and benefits

• ! Meets ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets
• ! UL listed 3 hour A Label
• ! Individual heavy-duty springs for lever return and to prevent lever sag. Trim is through-bolted
• ! All lever designs are solid (no inserts) and meet the federal ADA and state disability requirements
• ! Adjusts to fit door thickness from 1-3/8" to 1-3/4"
• ! Non-handed and does not require field disassembly for re-handing

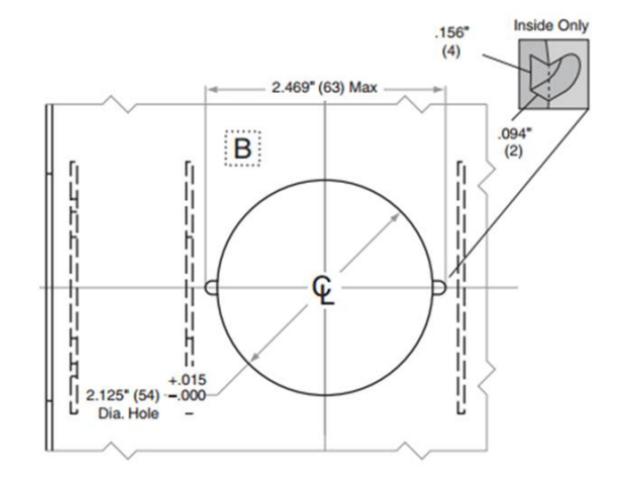

Door prep

Convenient for aftermarket replacement, the Falcon W Series small rose door prep is the same as the Falcon Y lock.

Falcon transition guide 2

Applications

Because the Falcon W Series small rose is Grade 2, it can be used anywhere the standard Y lock would be used. This means the Falcon W small rose can be used on doors with narrow stiles because of the smaller diameter rose. This unique feature provides you and your customers with an option never before offered by a Falcon cylindrical lock.

How to order

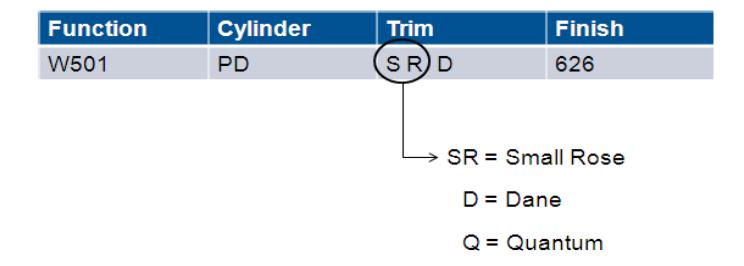

Please reference the Falcon W Series section of your most current Falcon price book. In order to differentiate the Falcon W Series small rose offering from the standard W Series, a slight change has been made to the trim designation. As you can see below, the first two letters designate the small rose (SR) option while third letter designates the lever.

Functions, options, and pricing

Functions

To ease the transition from the Falcon Y lock to the Falcon W Series small rose, you will find that the function options between the two locks series are very similar. Please see the transition tables on pages 3 and 4 for a complete crossreference.

Options

Finishes

The Falcon W Series small rose offers the following finishes.

! 605, 613, 625, 626

Latches

Falcon W Series small rose is offered with the following latch:

! 1-1/8" X 2-1/4" square corner with a 2-3/8" backset – springlatch, deadlatch or restoring deadlatch

Strikes

Falcon W Series small rose is offered with the following strike:

! Square corner, T-strike 1-1/8" x 2-3/4" strike with a 1-3/8" lip length

Cylinders

The Falcon W Series small rose gives you a wide variety of cylinder options. To simplify your transition between the Falcon Y lock to the Falcon W Series small rose the small format interchange core (SFIC) and conventional cylinder options are identical.

Additional details

For additional details on the Falcon W Series small rose and how to order please reference the Falcon price book. Please call customer care at 1.877.671.7011 with any additional questions.

Transition table: Levers

Single cylinder functions

Y lock function	W lock function (small rose)	Finishes	Description
Y521PD	W511	605, 613, 625, 626	Entry/office
Y561PD	W561	605, 613, 625, 626	Classroom
Y581PD	W581	605, 613, 625, 626	Storeroom

Non-keyed functions

Y lock function	W lock function (small rose)	Finishes	Description
Y101D	W101	605, 613, 625, 626	Passage
Y161D	W161	605, 613, 625, 626	Communicating/exit
Y301D	W391	605, 613, 625, 626	Privacy

Dummy trim

Y lock function	W lock function (small rose)	Finishes	Description
Y12	W12	605, 613, 625, 626	Single dummy

Falcon transition guide 4

Transition table: Knobs

Single cylinder functions

Y lock function	W lock function	Finishes	Description
Y521PD	W511PD	605, 606, 613, 625, 626	Entry/office
Y561PD	W561PD	605, 606, 613, 625, 626	Classroom
Not offered	W571PD	605, 606, 613, 625, 626	Corridor
Y581PD	W581PD	605, 606, 613, 625, 626	Storeroom
Not offered	W711PD	605, 606, 613, 625, 626	Apartment entry

Non-keyed functions

Y lock function	W lock function	Finishes	Description
Y101D	W101S	605, 613, 625, 626	Passage
Y161D	Not offered	605, 613, 625, 626	Exit
Not offered	W571PD	605, 606, 613, 625, 626	Corridor
Y581PD	W581PD	605, 606, 613, 625, 626	Storeroom
Not offered	W711PD	605, 606, 613, 625, 626	Apartment entry

Dummy trim

Y lock function	W lock function	Finishes	Description
Y12	W12	605, 613, 625, 626	Half dummy
