Falcon T-Series Tailpiece Installation Instructions – English 106813
Open the original PDF document
View PDF
T-SeriesTailpiece
030102

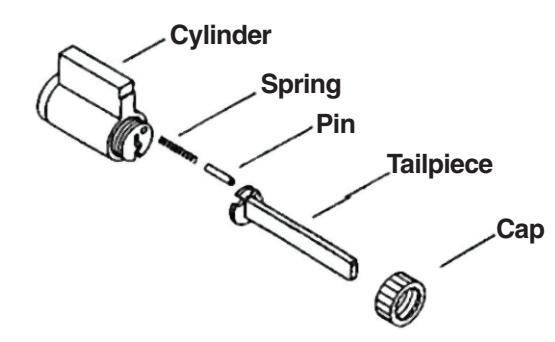

For proper function of the lock, the right tailpiece must be used and installed correctly. All T-locks with standard cylinders must have the tailpiece installed VERTICALLY on the cylinder as shown.
NOTE: The cap must be properly adjusted.
If too loose, excessive plug end play will prevent the key from being withdrawn. If too tight, the plug will drag and be difficult to rotate with the key.
© Allegion 2014 Printed in U.S.A. 030102 Rev. 01/14-d
