Falcon T-Series Functions T851 T881 1-1by8in Latch for Wood Doors Template 108104

T-Series

T851, T881

Door Type: Wood or Composite, flat or beveled Door Thickness: 1C\v" (44mm) – 2Z\," (54mm) Faceplate: Square Corner, 1Z\," (29mm) wide

Backsets: FT108-C, 2C\," (60mm) | FT108-D, 2C\v" (70mm) | FT108-F, 5" (127mm)

Dimensions shown in parentheses () are in millimeters.

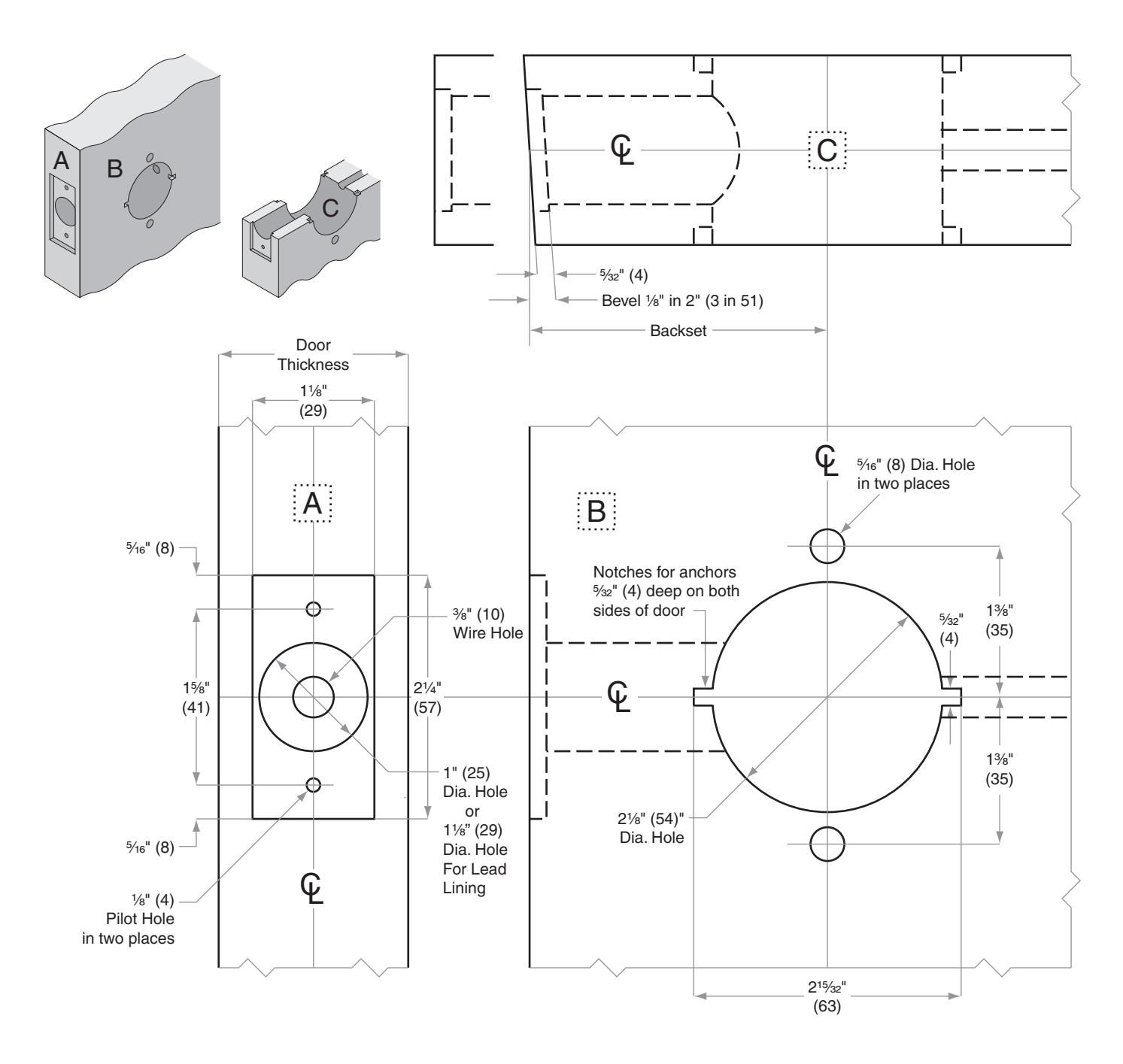

Door preparation template
