Falcon T-Series Functions T101 T881 for 1in Square Corner Faceplate Metal Doors Template 108098

FALCON ®

T-Series

T101-T881

Door Thickness:

Door Type:

Faceplate:

Metal, Flat or Beveled 1¾" (44mm) – 2½" (54mm) Square Corner, 1" (25mm) wide

Backsets: FT103-C, 2%" (60mm) | FT103-F, 5" (127mm)

For metal door installations, suitable reinforcement is required to support latch in center of door and to prevent lateral movement

Dimensions shown in parentheses () are in millimeters.

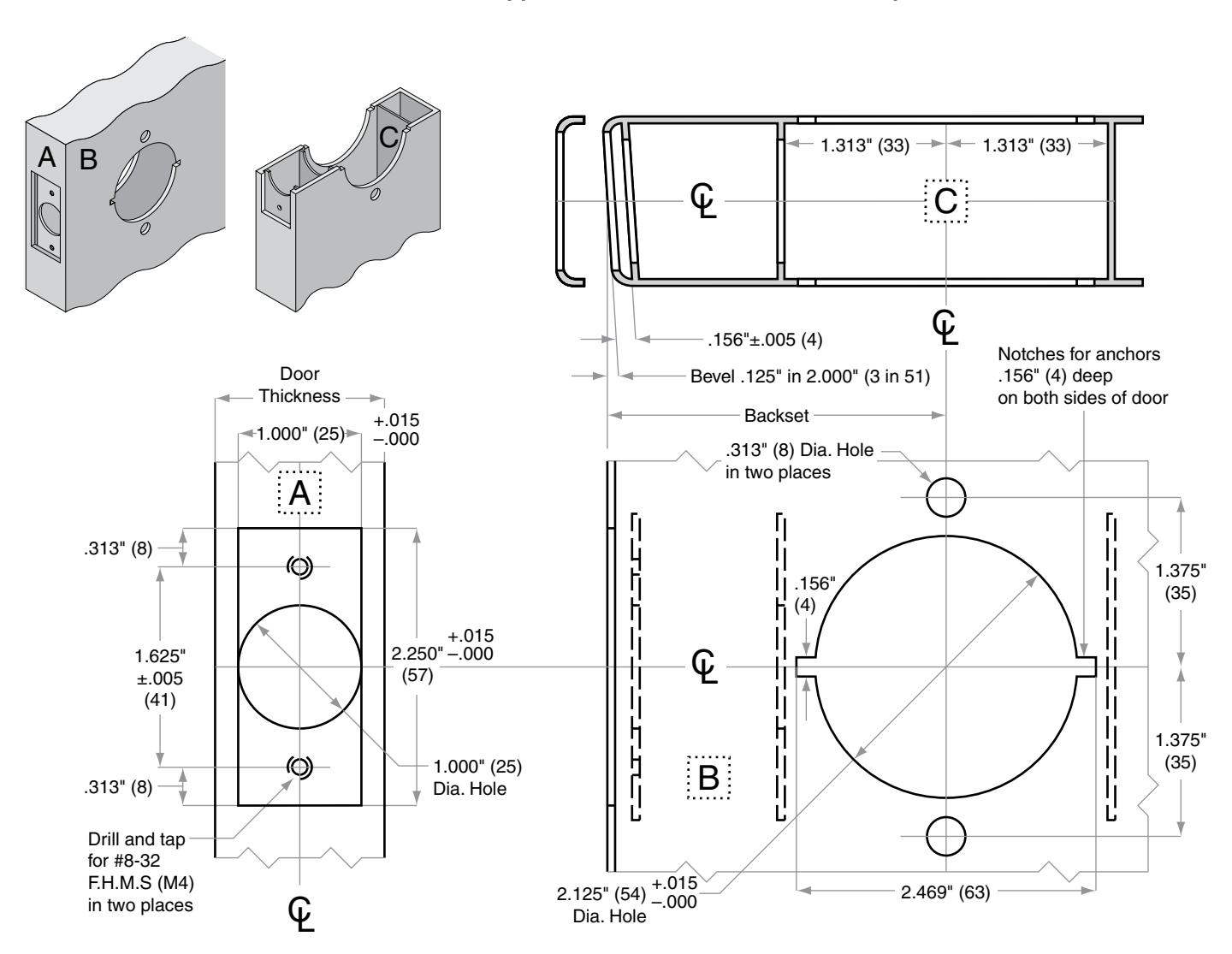

Door preparation template
