Falcon T-Series Functions T101 T881 for 1-1by8in Square Corner Faceplate Metal Doors Template 108096

FALCON ®

T-Series

Door Type: Metal, Flat or Beveled 13/4" (44mm) – 21/8" (54mm) Door Thickness: Square Corner, 11/8" (29mm) wide Faceplate:

Backsets: FT101-C, 2%" (60mm) | FT101-D, 2%" (70mm) | FT101-F, 5" (127mm)

For metal door installations, suitable reinforcement is required to support latch in center of door and to prevent lateral movement

Dimensions shown in parentheses () are in millimeters.

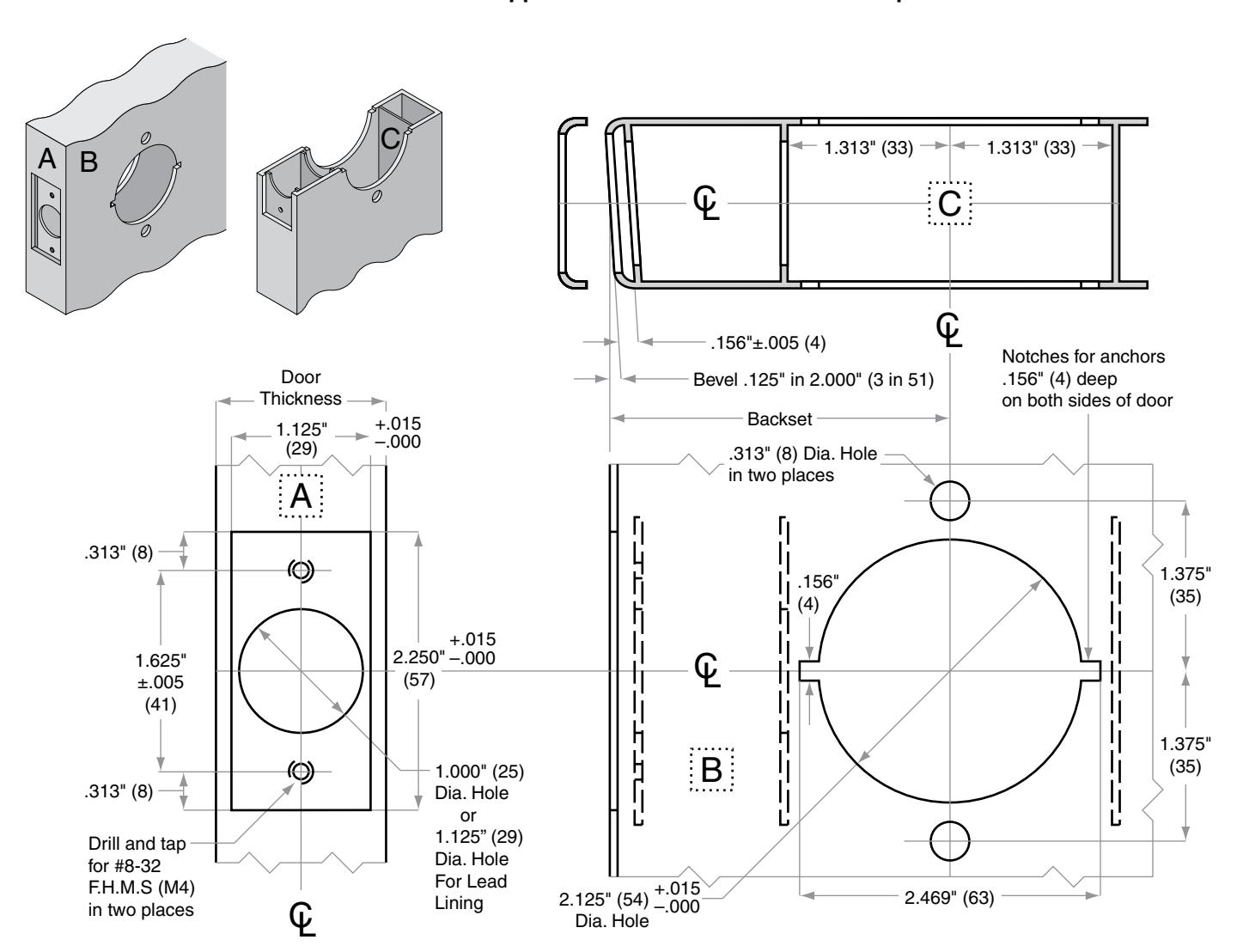

Door preparation template
