FALCON ®

T101-T881

T-Series Discontinued latch - for reference only

Door Type: Metal, Flat or Beveled Door Thickness: 13/4" (44mm) – 21/8" (54mm)

Round Corner, %16" (14mm) Radius, 11%" (25mm) wide Faceplate:

Backsets: FT105-C, 2%" (60mm) | FT105-D, 2%" (70mm) | FT105-F, 5" (127mm)

For metal door installations, suitable reinforcement is required to support latch in center of door and to prevent lateral movement

Dimensions shown in parentheses () are in millimeters.

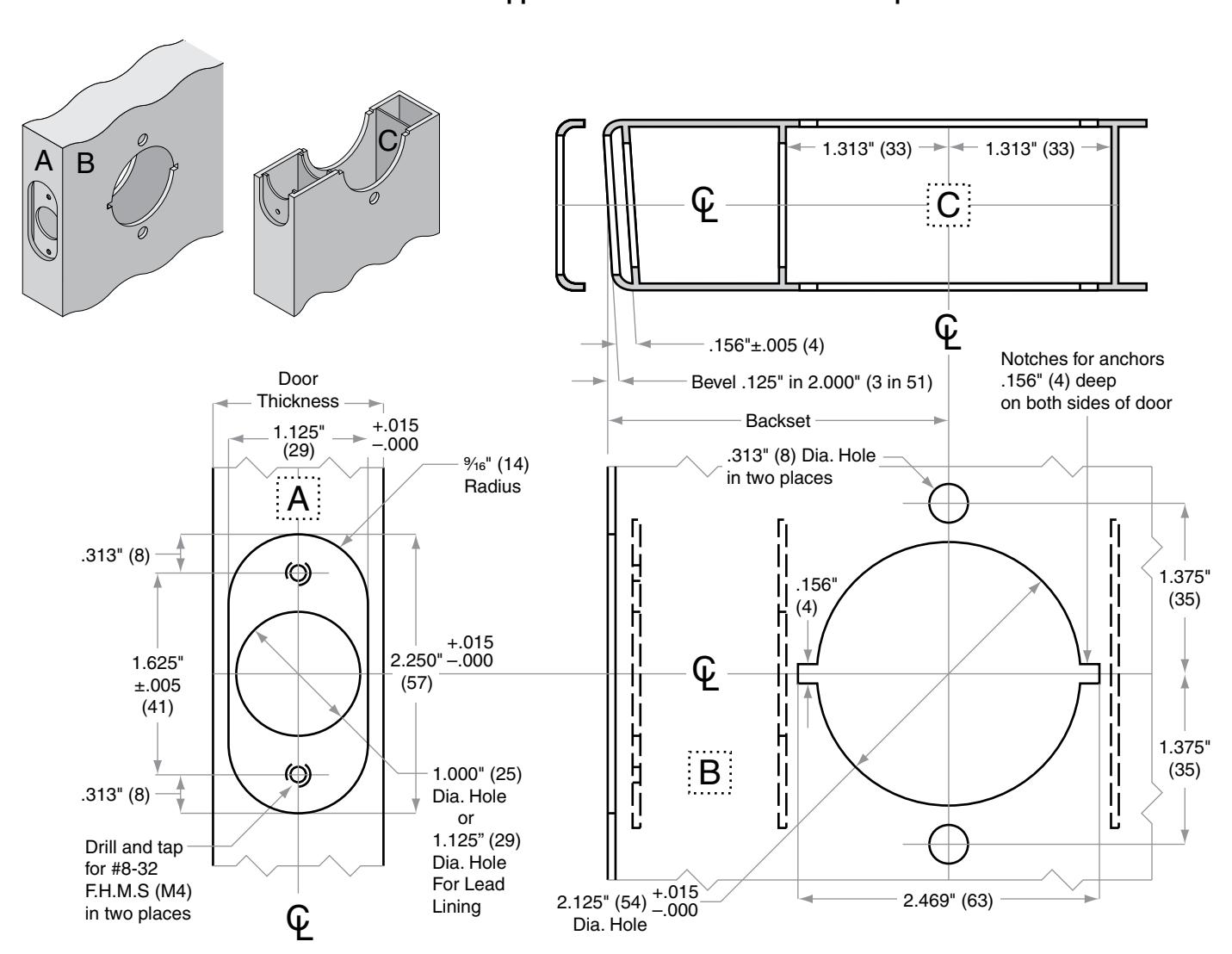

Door preparation template
