Falcon T-Series Functions T101 T581 for 1-1by8in Square Corner Faceplate Wood Doors Template 108095

T-Series

T101-T581

Door Type: Wood or Composite, Flat or Beveled Door Thickness: 1C\v" (44mm) – 2Z\," (54mm) Faceplate: Square Corner, 1Z\," (29mm) wide

Backsets: FT100-C, 2C\," (60mm) | FT100-D, 2C\v" (70mm) | FT100-F, 5" (127mm)

Dimensions shown in parentheses () are in millimeters.

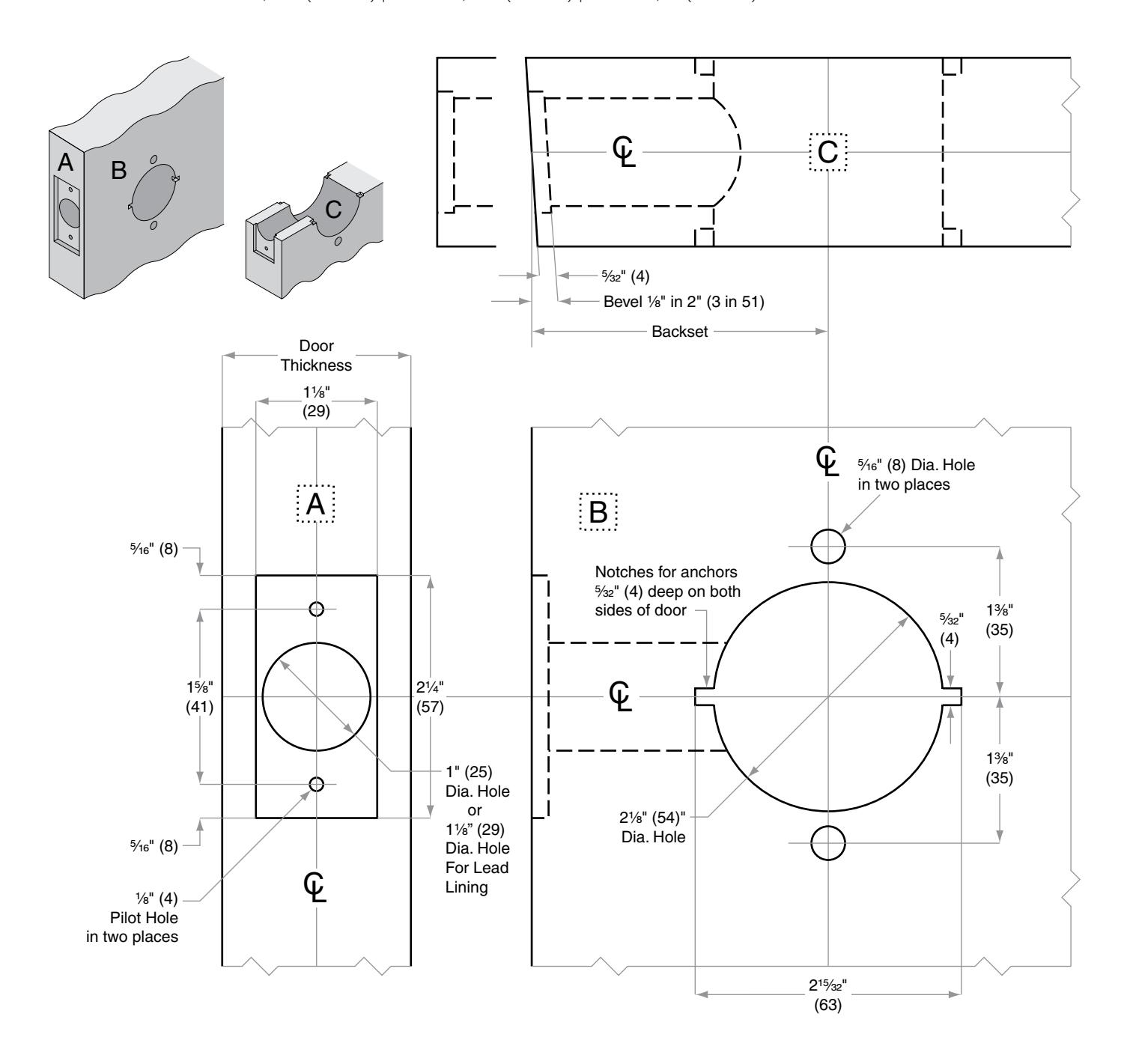

Door preparation template
