Falcon T-Series Function T101 T581 for Metal Doors Template 108102

T101-T581

T-Series Discontinued latch - for reference only

Door Type: Wood or Composite, flat or beveled Door Thickness: 1C\v" (44mm) – 2Z\," (54mm)

Faceplate: Round Corner, Z\v" (6mm) Radius, 1" (25mm) wide

Backsets: FT106-C, 2C\," (60mm) | FT106-D, 2C\v" (70mm) | FT106-F, 5" (127mm)

Dimensions shown in parentheses () are in millimeters.

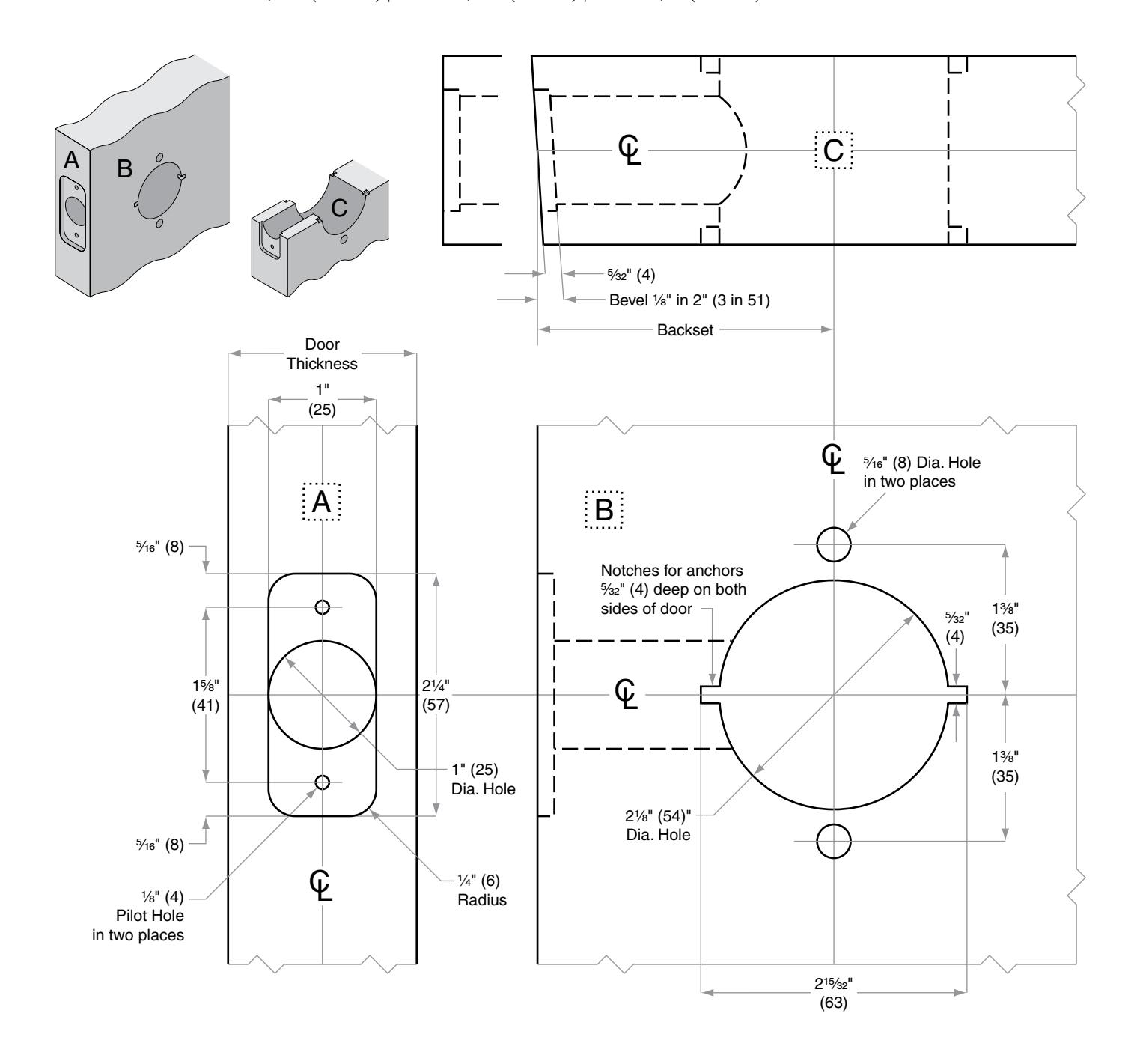

Door preparation template
