Falcon T Series Cut Sheet 113148
Open the original PDF document
View PDFGrade 1, extra heavy-duty cylindrical lever locks
T Series
Overview

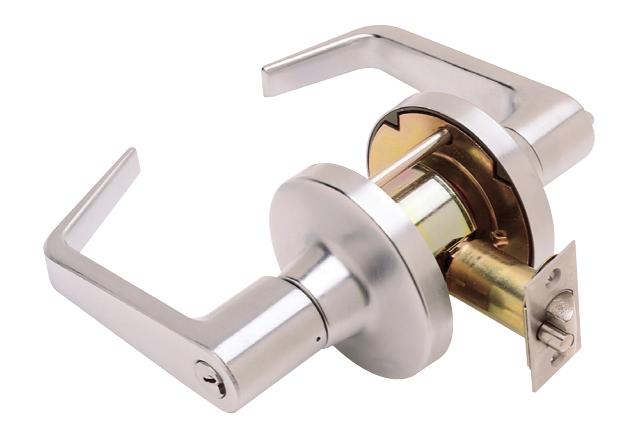

Simply put, the Falcon � T Series lock is the most versatile lockset in the industry. This extra heavy-duty lock can accept most manufacturer's cylinders. Designed with compression springs in the spring cages, T Series virtually eliminates lever sag for long lasting performance. This adaptable lock is well suited for either new construction or retrofit use in buildings as varied as multifamily, retail, institutional and government/military.
Finishes
605 Bright Brass
606 Satin Brass
613 Oil Rubbed Bronze
619 Satin Nickel
622 Matte Black
625 Bright Chrome
626 Satin Chrome
643e Aged Bronze
Lever styles
Avalon (AVA) Avalon with abrasive tactile warning (6AV)1
Boardwalk (BRK) Broadway (BRW) Dane (DAN)
Dane with abrasive tactile warning (6DA)1
Latitude (LAT) Longitude (LON) Quantum (QUA) Quantum with abrasive tactile warning (6QU)1

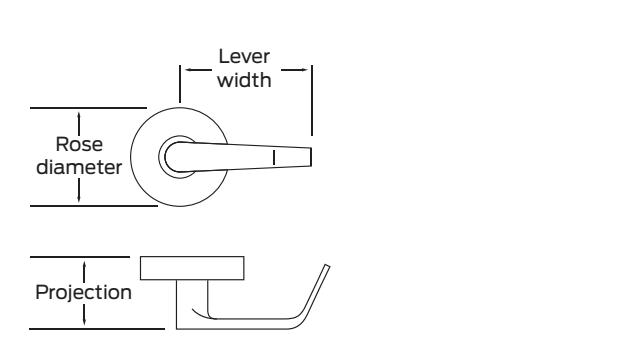

Dimensions
| Lever | Width | Projection |
|---|---|---|
| Avalon (AVA) | 5" |
3 1
⁄4" |
| Boardwalk (BRK) | 5" | 3 7⁄8" |
| Broadway (BRW) |
4 1
⁄2" |
3 7⁄8" |
| Dane (DAN) | 5" |
3 1
⁄4" |
| Latitude (LAT) |
4 1
⁄2" |
3 7⁄8" |
| Longitude (LON) | 5" | 3 7⁄8" |
| Quantum (QUA) | 5" |
3 1
⁄4" |
| Rose | Diameter |
|---|---|
| Standard |
3 1
⁄2" |
Note: Return to door meets 1 ⁄2" requirement for Boardwalk (BRK), Dane (DAN), Longitude (LON) and Quantum (QUA) levers
FALCON ®
Functions
101 Falcon ANSI F75
Passage/closet latch
- Latch bolt operated by levers/knobs from either side at all times.
- Inside lever/knob always free for immediate egress.
Function 291 ANSI
Privacy hospital lock
- Latch bolt operated by levers/knobs from
- Outside lever/knob locked by push button on inside lever/knob.
- Rotating inside lever/knob, closing door, or turning emergency release turn button on outside releases button.
- Inside lever/knob always free for immediate egress.
Falcon 301 ANSI F76
Bath/bedroom privacy lock
- Latch bolt operated by levers/knobs from
- Outside locked by push button on inside lever/knob.
- Rotating inside lever/knob or closing door releases button. Emergency release tool used on outside unlocks door.
- Inside lever/knob always free for immediate egress.
Falcon 351 ANSI Closet lock
Latch bolt operated by lever/turn knob from either side except when outside lever/knob is locked by key.
Falcon 381 ANSI F88 Classroom security lock
- Latch bolt operated by levers/knobs from either side except when outside lever/knob is locked from inside or outside by key.
- Unlock by key outside or by operating inside lever/knob.
- Inside lever/knob always free for immediate egress.
Falcon 411 ANSI F87 Asylum lock
- Latch bolt operated by key from either side.
- Both levers/knobs always inoperable.
Caution: Double cylinder locks on residences and any door, in any structure, which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
FALCON
Functions
501 Falcon ANSI F82 Entry lock
- Latch bolt operated by lever/knob from
- Push button locking. Button on inside locks outside lever/knob until unlocked by key outside or by rotating inside lever/knob.
- Inside always free for immediate egress.
This lock will stay locked when the door is closed. If you want your door to unlock when it closes, please purchase the 571 function.
Falcon 511 ANSI F109 Entry/office lock
- Turn/push button locking: Pushing and turning button locks outside lever/knob requiring use of key until button is manually unlocked.
- Push button locking: Pushing button locks outside lever/knob until unlocked by key or by rotating inside lever/knob.
- Inside lever/knob always free for immediate egress.
- Latch bolt operated by levers/knobs.
- Key enables only unlocking from outside.
Falcon 521 ANSI F81 Office lock
- Turn button locking. Turning button locks outside lever/knob requiring use of key until button is manually unlocked.
- Latch bolt operated by levers/knobs.
- Key enables only unlocking from outside.
- Inside always free for immediate egress.
Falcon 561 ANSI F84 Classroom lock
- Latch bolt operated by lever/knob.
- Outside lever/knob is locked by key in outside lever/knob.
- Inside always free for immediate egress.
ANSI F90
Dormitory/corridor lock
571
■ Latch bolt operated by levers/knobs except when locked by push button from inside.
Falcon
- Key in outside lever/knob locks or unlocks lever/knob and releases button.
- Closing door releases push button.
- Inside always free for immediate egress.
This lock will unlock when the door is closed. If you want your door to remain locked when it closes, please purchase the 501 function.
581 Falcon ANSI F86
Storeroom lock
- Latch bolt operated by lever/knob inside or key outside.
- Outside lever/knob is inoperable.
- Inside always free for immediate egress.
Functions
Falcon 851 ANSI
Storeroom (electrified-fail safe)
- Latch bolt operated by lever/knob from either side except when outer lever/knob is electrically locked.
- When outer lever/knob is locked (inoperable), latch bolt retracted by key in cylinder outside. Inside lever/knob always free for immediate egress.
Note: Specify 12V (.65 Amps) or 24V (.32 Amps) DC, continuous duty.
881 Falcon ANSI
Storeroom (electrified-fail secure)
- Latch bolt operated by lever/knob inside except when outer lever/knob is electrically unlocked, then latch bolt from either side.
- When locked, key in cylinder outside retracts latch bolt.
- Inside lever/knob always free for immediate egress.
Note: Specify 12V (.65 Amps) or 24V (.32 Amps) DC, continuous duty.
12 Falcon ANSI
Dummy trim
■ Single trim, surface-mounted rigid lever/
Cylinders
Conventional cylinder
| L | Less 6-pin conventional cylinder |
|---|---|
| P | 6-pin conventional cylinder (pinned to 5) |
| P6 | 6-pin conventional cylinder (pinned to 6) |
| P7 | 7-pin conventional cylinder (pinned to 7) |
| CP6 | 6-pin conventional cylinder, Schlage C |
Full size interchangeable core (FSIC)
J Less FSIC2
Small format interchangeable core (SFIC)
| B | Less SFIC |
|---|---|
| BB | 7-pin SFIC, Best style |
| BDC | SFIC disposable construction core |
| G1 | SFIC, Falcon style1 |
| H | SFIC refundable construction core |
1 6-pin standard, specify G7 if 7-pin is desired.
Compatibility with competitors' conventional or FSIC cylinders
The T Series lockset can be ordered less cylinder made to fit a number of competitive conventional or full size IC cylinders. Please see catalog or price book for details.
Availability of conventional cylinders in competitive keyways (6-pin)
The T Series lockset can be ordered with a conventional cylinder in a number of competitive open keyways. For a complete list of options see the Falcon catalog or price book.
Compatibility with competitors' SFIC cylinders
Falcon locksets also accept the following cores:
- Schlage
- Arrow (including Flex Core)
- Best (including PKS and Peaks)
- InstaKey
- Kaba Peaks
- Keymark
- KSP
When specifying "B" for less SFIC cylinder, please note that these manufacturer's cylinders all fit the Falcon lever and spring cage configuration. The appropriate Falcon tailpiece will be provided with the lockset.
2 Levers are offered to fit a number of competitive FSIC cylinders. See price book or Falcon catalog for list of options.
Specifications
| Chassis | |
|---|---|
| Material | Parts constructed of brass or cold formed steel, zinc plated and dichromated for |
| rust resistance. Springs are stainless steel. Compression spring design supports | |
| levers, eliminating lever sag and providing years of reliable service. | |
| Door thickness |
1 3⁄4" to 2 1
⁄4" standard. Thin door adapter kit (A30775-000-00) available for |
| doors 1 3⁄8" to 1 3⁄4". | |
| Trim | |
| Handing | Non-handed |
| Lever | Standard: Levers are pressure cast zinc (solid levers no inserts) material finished |
| to match mating parts. | |
| Optional: Tactile feature | |
| Rose | Roses are heavy wrought brass or bronze, installed over pressure cast rose |
| inserts which are through-bolted. | |
| Latch | |
| Backset | Standard: 2 3⁄4" |
| Optional: 2 3⁄8" and 5" (see price book) | |
| Faceplate |
1 1
⁄8" x 2 1 ⁄4", square corner faceplate |
| Latch |
1" housing diameter, 1
⁄2" throw |
| Strike |
4 7
⁄8" x 1 1 ⁄4" ANSI strike with curved lip to meet ANSI A115.2 door frame |
| preparation standard | |
| Keying | |
| Cylinder format |
Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard.
Pinning in 6 chambers available (at no cost) when specified. Optional 7-pin |
| conventional and 6- or 7-pin Small Format Interchangeable Core (SFIC) | |
| cylinders. Cylinder housings and plugs machined from solid brass. Springs are | |
| phosphor bronze. Two nickel silver keys furnished standard. | |
| Keyway | |
|
"G" keyway standard on conventional cylinders.; "A" keyway standard on SFIC
cylinders. Additional options: Falcon, Schlage and many Best and Arrow keyways. |
|
| Wired Electrified | |
| Input voltage | 24 volt standard , option for 12v |
| Operating mode | T851: Fail Safe |
| T881: Fail Secure | |
| Current draw | Available in both 12 (.65 Amps) or 24 (.32 Amps) volt DC, continuous duty |
| Screws | |
| Furnished with combination screws for use in wood or metal doors and frames | |
| Warranty | |
| Limited warranty, 10 years from date of manufacturer, see price book for details | |
Specifications
Certifications
| ANSI/BHMA | Certified ANSI/BHMA A156.2, Series 4000, Grade 1 | |
| UL/cUL | Listed for 3-hour fire door, A label | |
| CA Fire Code |
All levers with a return to door of 1
⁄2" (64 mm) or less comply (Boardwalk, Dane, |
|
| Longitude and Quantum) | ||
| Federal | BAA listed | |
| Other | ADA compliant | |
