Falcon T Series Anti-friction Fire Door Latch 3by4in throw Template 111465

T-Series

Anti-friction fire door deadlatch, C\v" throw (23981152)

Door Type: Wood or composite Door Thickness: 1C\," (35 mm)–2Z\," (54 mm)

Faceplate: Square Corner, 1Z\," (29 mm) wide x 2Z\v" (57 mm)

Backset: 2C\v" (70 mm)

Dimensions shown in parentheses () are in millimeters.

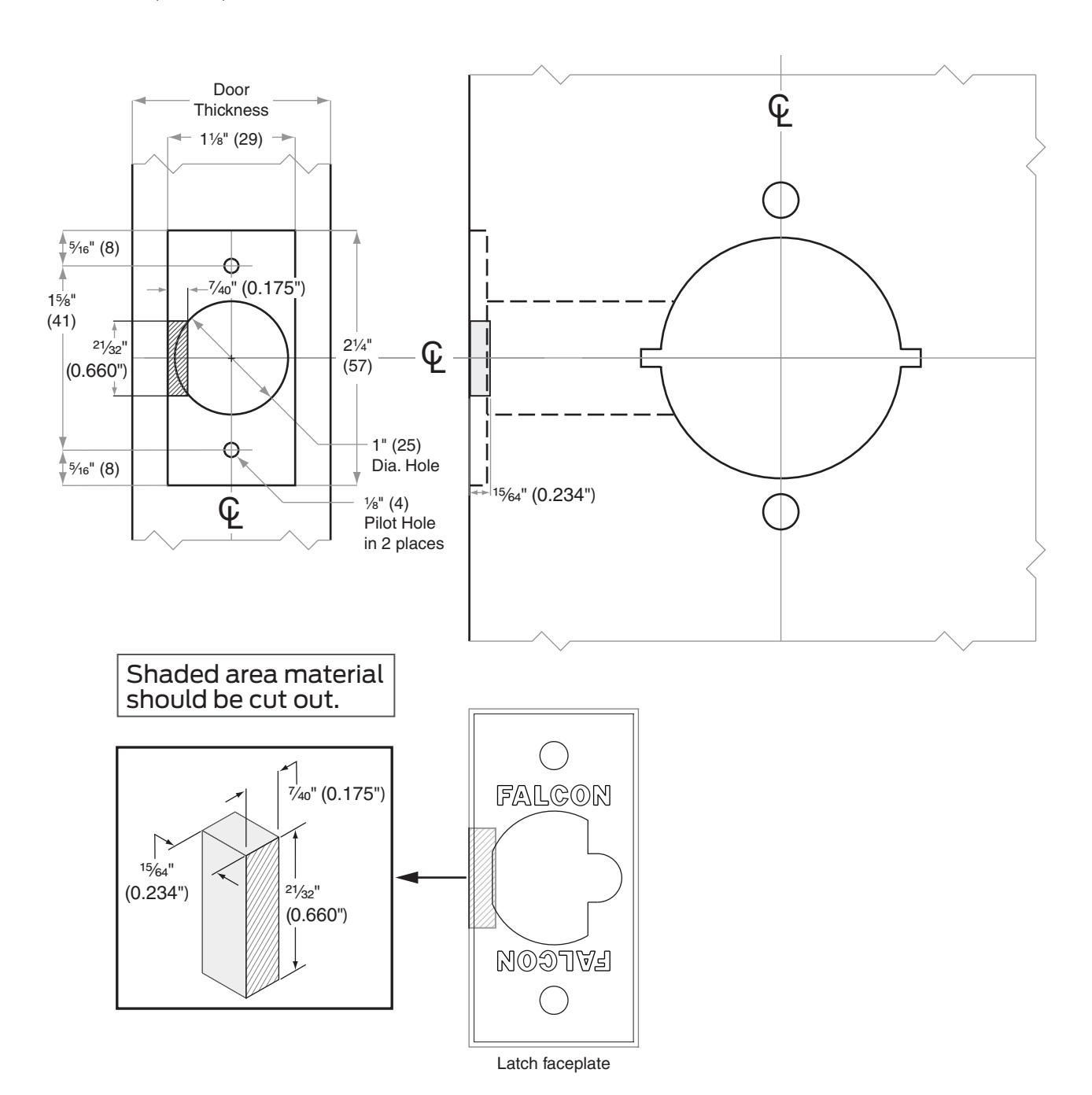

Door preparation template
