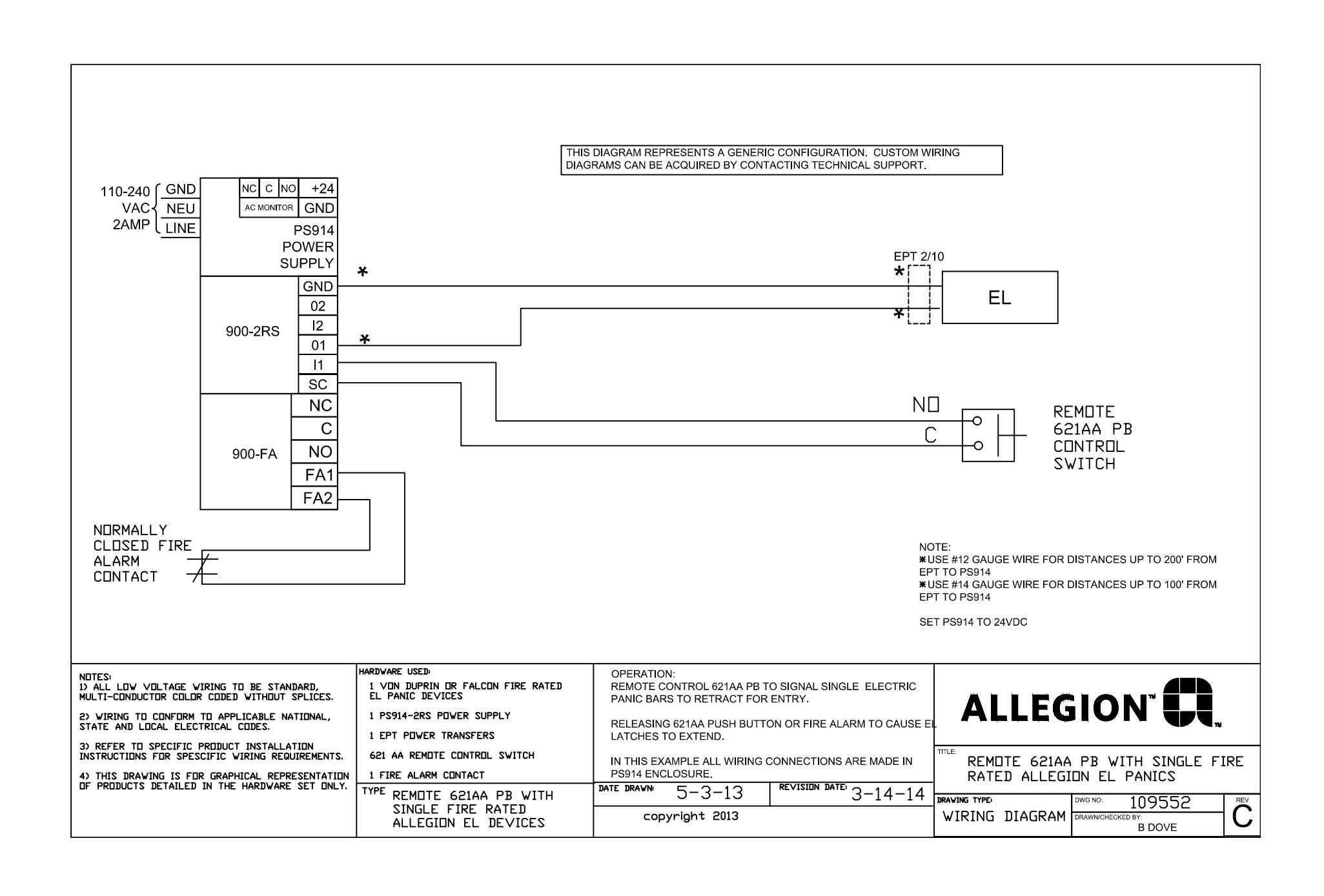

Falcon System Components Single Fire Rated EL with 621AA Push ButtonRiser and Wiring Diagram 109552

Open the original PDF document

THIS DIAGRAM REPRESENTS A GENERIC CONFIGURATION. CUSTOM WIRING DIAGRAMS CAN BE ACQUIRED BY CONTACTING TECHNICAL SUPPORT.

NOTE:

*USE #12 GAUGE WIRE FOR DISTANCES UP TO 200' FROM EPT TO PS914 *USE #14 GAUGE WIRE FOR DISTANCES UP TO 100' FROM EPT TO PS914

SETP PS914 TO 24VDC

1) ALL LOW VOLTAGE WIRING TO BE STANDARD, MULTI-CONDUCTOR COLOR CODED WITHOUT SPLICES.

2) WIRING TO CONFORM TO APPLICABLE NATIONAL.

STATE AND LOCAL ELECTRICAL CODES.

3) REFER TO SPECIFIC PRODUCT INSTALLATION INSTRUCTIONS FOR SPESCIFIC WIRING REQUIREMENTS.

4) THIS DRAWING IS FOR GRAPHICAL REPRESENTATION OF PRODUCTS DETAILED IN THE HARDWARE SET ONLY.

5) * CONDUCTOR COUNT TO BE DETERMINED BY ACCESS CONTROL PANEL PROVIDER.

HARDWARE USED:

1 VON DUPRIN OR FALCON FIRE RATED EL PANIC DEVICES

1 PS914-2RS POWER SUPPLY

1 EPT POWER TRANSFERS

1 621 AA REMOTE CONTROL PUSH BUTTON

1 FIRE ALARM CONTACT

REMOTE 621AA PB WITH SINGLE FIRE RATED ALLEGION EL DEVICES

OPERATION:

REMOTE CONTROL 621 AA PB TO SIGNAL SINGLE EL ELECTRIC PANIC BAR TO RETRACT FOR ENTRY.

RELEASING 621 AA PUSH BUTTON OR FIRE ALARM TO CAUSE EL LATCHES TO EXTEND.

IN THIS EXAMPLE ALL WIRING CONNECTIONS ARE MADE IN PS914 ENCLOSURE.

ALLEGION"

REMOTE 621AA PB WITH SINGLE FIRE RATED ALLEGION EL PANICS

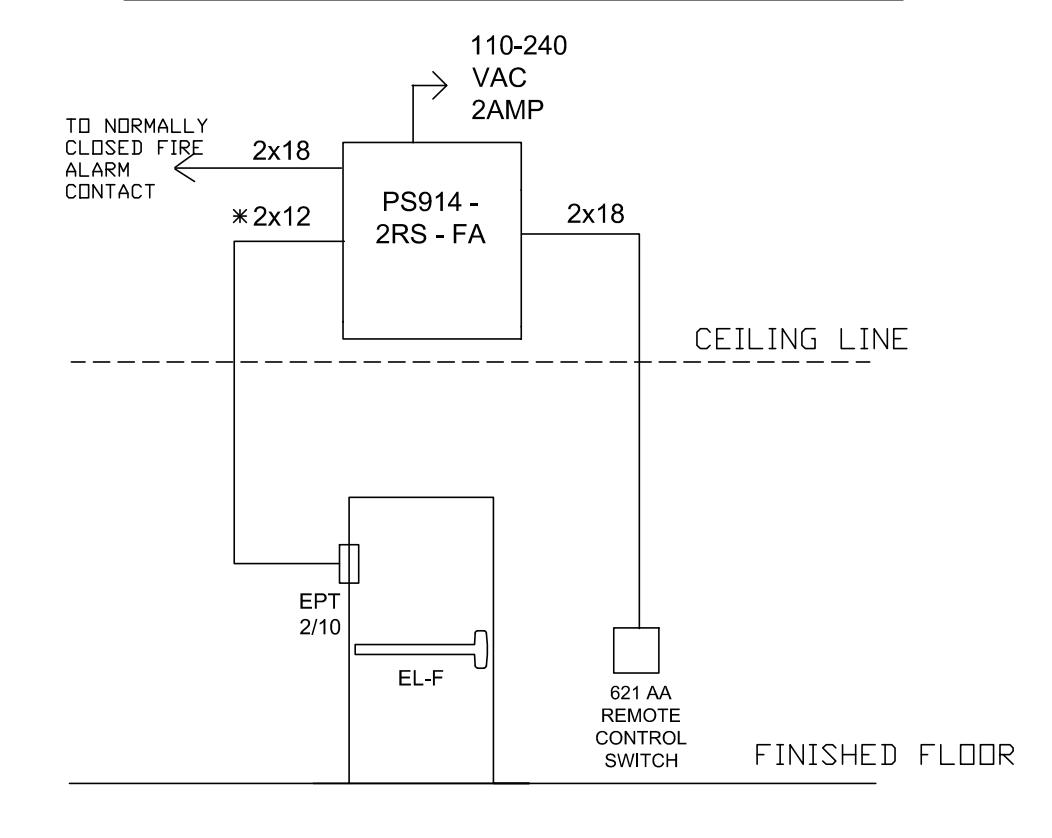

DRAWING TYPE: RISER DIAGRAM

DWG NO: 109552 DRAWN/CHECKED BY

B DOVE
