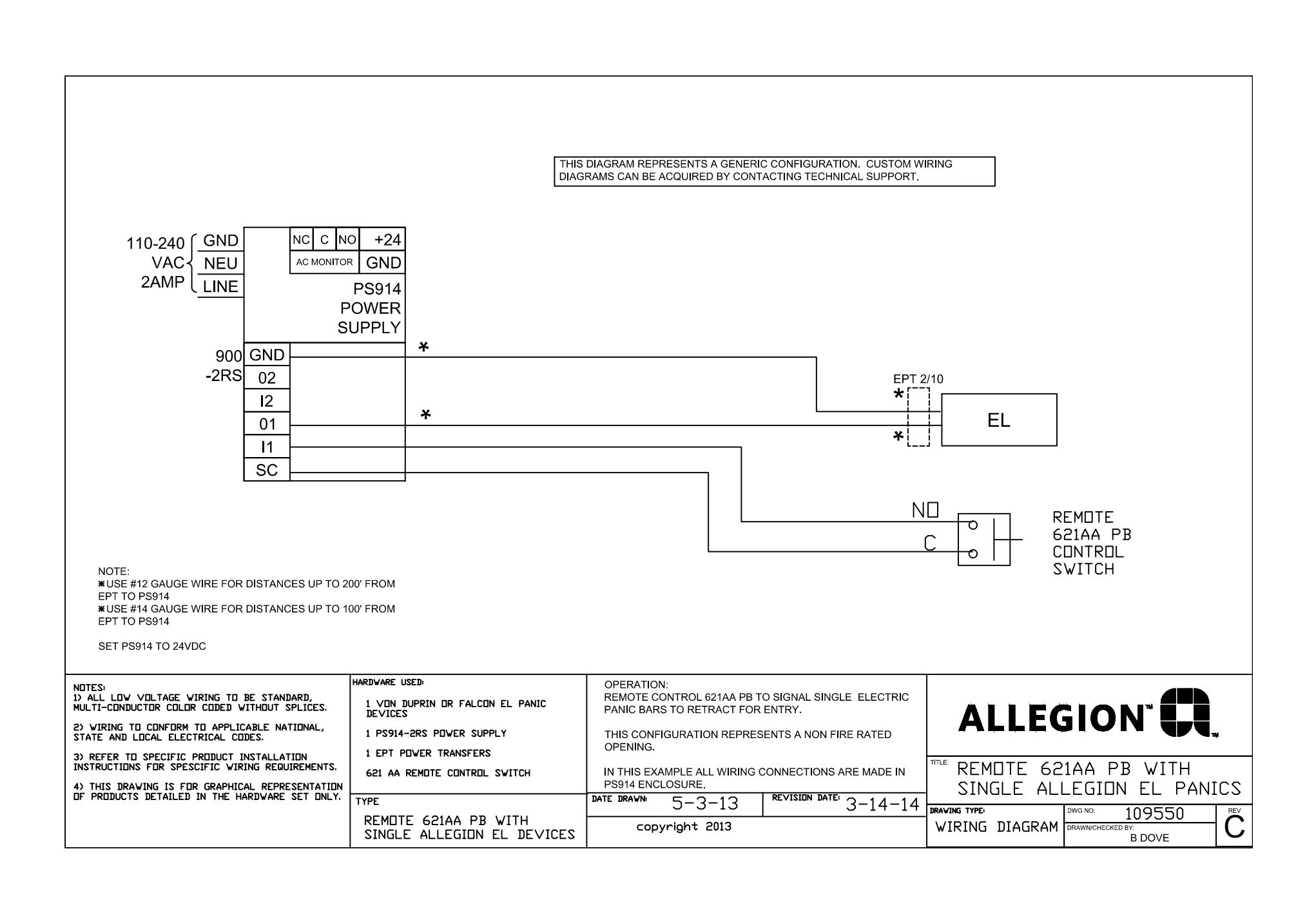

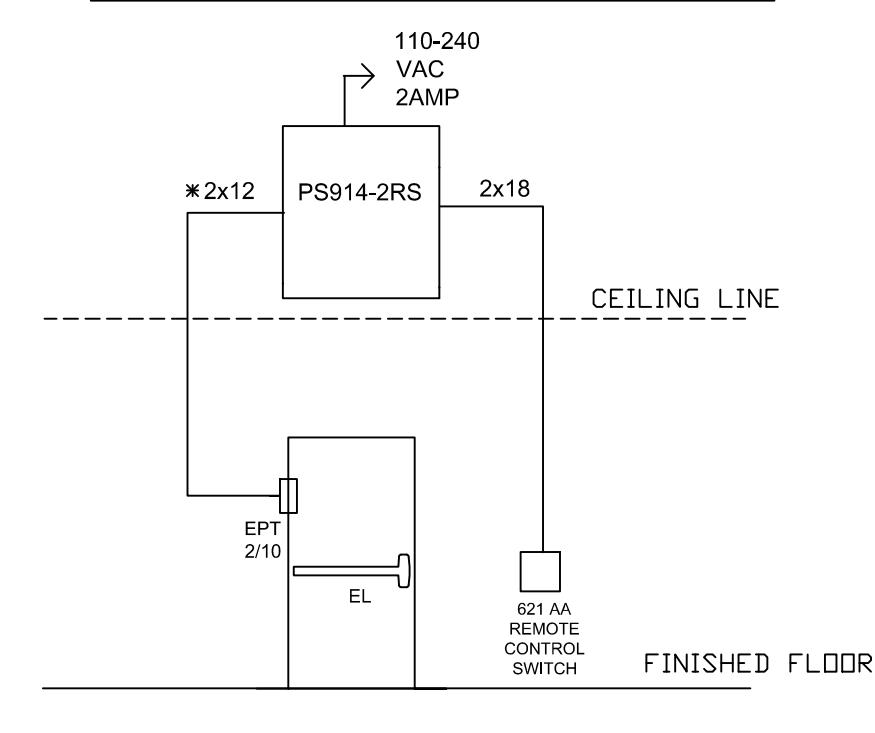

Falcon System Components Single EL with 621AA Push Button Riser and Wiring Diagram 109550

THIS DIAGRAM REPRESENTS A GENERIC CONFIGURATION. CUSTOM WIRING DIAGRAMS CAN BE ACQUIRED BY CONTACTING TECHNICAL SUPPORT.

NOTE:

*USE #12 GAUGE WIRE FOR DISTANCES UP TO 200' FROM EPT TO PS914 *USE #14 GAUGE WIRE FOR DISTANCES UP TO 100' FROM EPT TO PS914

SETP PS914 TO 24VDC

NOTES: 1) ALL LOW VOLTAGE WIRING TO BE STANDARD, MULTI-CONDUCTOR COLOR CODED WITHOUT SPLICES.

• 2) WIRING TO CONFORM TO APPLICABLE NATIONAL, STATE AND LOCAL ELECTRICAL CODES.
• 3) REFER TO SPECIFIC PRODUCT INSTALLATION INSTRUCTIONS FOR SPESCIFIC WIRING REQUIREMENTS.
• 4) THIS DRAWING IS FOR GRAPHICAL REPRESENTATION OF PRODUCTS DETAILED IN THE HARDWARE SET ONLY.
• 5) * CONDUCTOR COUNT TO BE DETERMINED BY ACCESS CONTROL PANEL PROVIDER.

HARDWARE USED:

• 1 VON DUPRIN OR FALCON EL PANIC
• 1 PS914-2RS POWER SUPPLY
• 1 EPT POWER TRANSFERS
• 1 621 AA REMOTE CONTROL PUSH BUTTON

TYPE

REMOTE 621AA PB WITH SINGLE ALLEGION EL DEVICES

OPERATION:

REMOTE CONTROL 621 AA PB TO SIGNAL SINGLE EL ELECTRIC PANIC BAR TO RETRACT FOR ENTRY.

THIS CONFIGURATION REPRESENTS A NON FIRE RATED OPENING.

IN THIS EXAMPLE ALL WIRING CONNECTIONS ARE MADE IN PS914 ENCLOSURE.

DATE DRAWN 5-3-13 | REVISION DATE: 3-14-14

copyright 2013

ALLEGION" 📢

FREMOTE 621AA PB WITH SINGLE ALLEGION EL PANICS

DRAWING TYPE: RISER DIAGRAM

DWG NO: 109550 DRAWN/CHECKED BY: B DOVE
