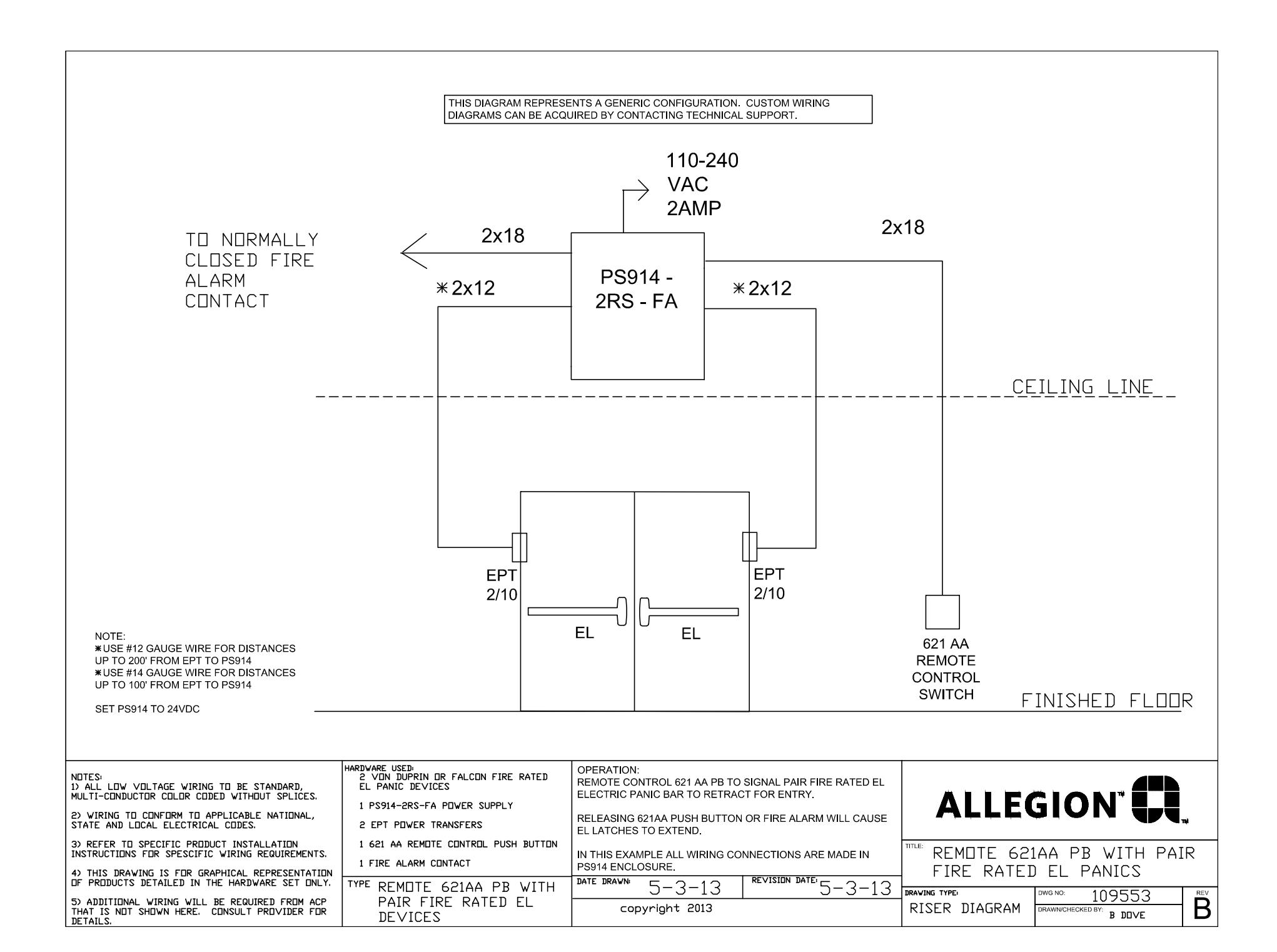

Falcon System Components Pair Fire Rated EL with 621AA Push Button Riser and Wiring Diagram 109553

THIS DIAGRAM REPRESENTS A GENERIC CONFIGURATION. CUSTOM WIRING DIAGRAMS CAN BE ACQUIRED BY CONTACTING TECHNICAL SUPPORT. +24 NC C NO GND 110-240 GND VAC NEU AC MONITOR 2AMP EPT 2/10 LINE PS914 *[ POWER EL2 SUPPLY GND 02 EPT 2/10 ¥ 12 900-2RS ¥ EL1 01 11 SC NC C REMOTE 900-FA 621AA PB NO CONTROL FA₁ TO NORMALLY SWITCH CLOSED FIRE FA2 ALARM CONTACT NOTE: * USE #12 GAUGE WIRE FOR DISTANCES UP TO 200' FROM EPT TO PS914 * USE #14 GAUGE WIRE FOR DISTANCES UP TO 100' FROM EPT TO PS914 SET PS914 TO 24VDC HARDWARE USED: OPERATION: 2 VON DUPRIN OR FALCON FIRE RATED EL PANIC DEVICES REMOTE CONTROL 621AA PB TO SIGNAL PAIR FIRE RATED 1) ALL LOW VOLTAGE WIRING TO BE STANDARD, MULTI-CONDUCTOR COLOR CODED WITHOUT SPLICES. ALLEGION !! ELECTRIC PANIC BARS TO RETRACT FOR ENTRY. 1 PS914-2RS-FA POWER SUPPLY 2) WIRING TO CONFORM TO APPLICABLE NATIONAL, RELEASING 621AA PUSH BUTTON OR FIRE ALARM TO CAUSE EL STATE AND LOCAL ELECTRICAL CODES. 2 EPT POWER TRANSFERS LATCHES TO EXTEND. 3) REFER TO SPECIFIC PRODUCT INSTALLATION 621 AA REMOTE CONTROL SWITCH REMOTE 621AA PB WITH PAIR IN THIS EXAMPLE ALL WIRING CONNECTIONS ARE MADE IN INSTRUCTIONS FOR SPESCIFIC WIRING REQUIREMENTS. 1 FIRE ALARM CONTACT PS914 ENCLOSURE. FIRE RATED EL PANICS 4) THIS DRAWING IS FOR GRAPHICAL REPRESENTATION REVISION DATE 5-3-13 OF PRODUCTS DETAILED IN THE HARDWARE SET ONLY. DATE DRAWN: TYPE REMOTE 621AA PB WITH 5-3-13 109553 5) ADDITIONAL WIRING WILL BE REQUIRED FROM ACP THAT IS NOT SHOWN HERE. CONSULT PROVIDER FOR PAIR FIRE RATED EL В copyright 2013 WIRING DIAGRAM B DOVE DEVICES
