Falcon Sexbolt Preparation Wood Door Template 108950
Open the original PDF document
View PDF

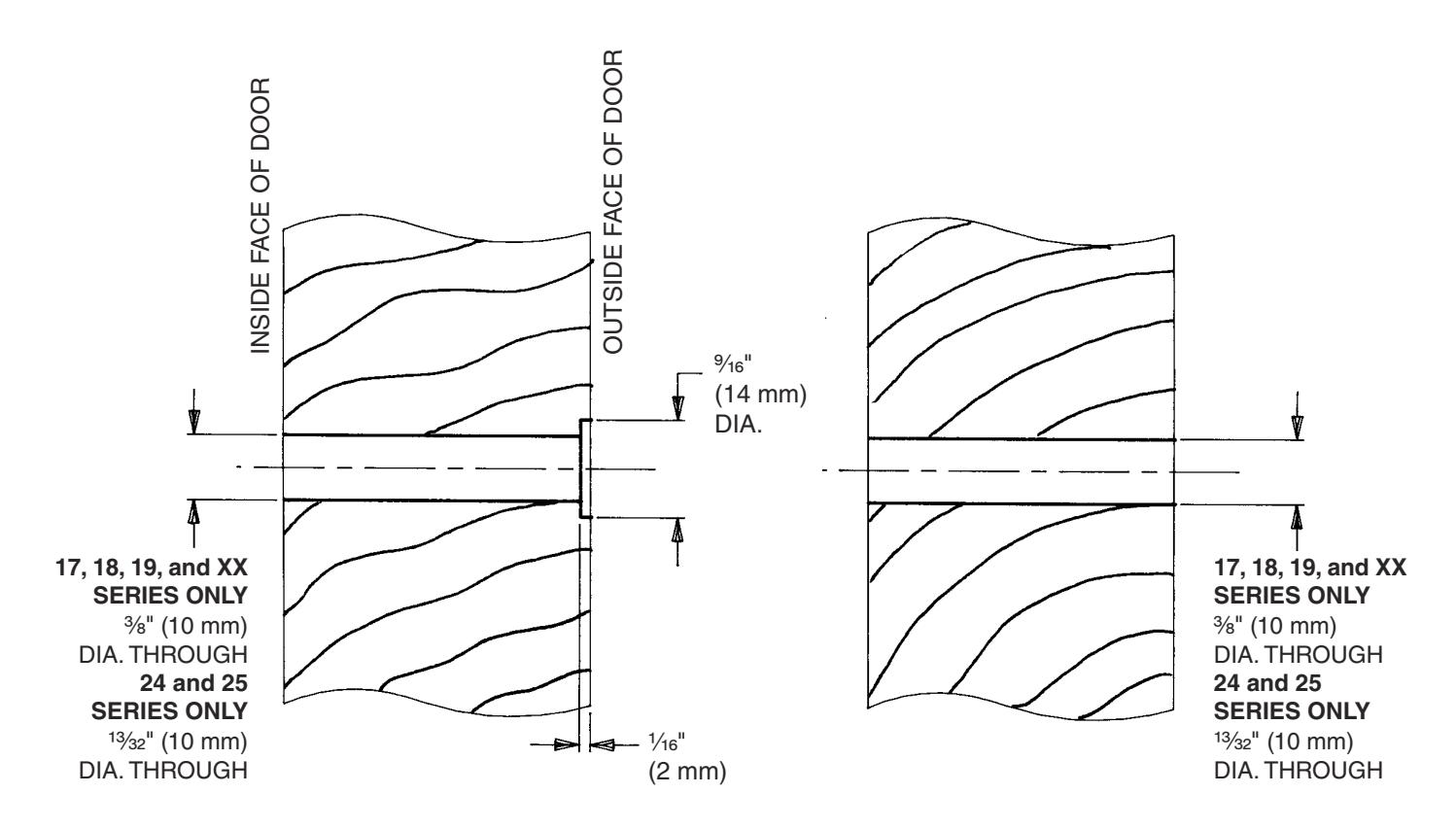

RECESSED SEXBOLT APPLICATION
SURFACE MOUNTED SEXBOLT APPLICATION
- • Typical recessed sexbolt applications: 18 or XX Series devices with standard trim F-18-R or F-XX-R devices with Apollo trim F-19-R devices with KIK, KIL, Centron or Trident trim (wide stile)
- • All other applications are surface mounted
- • NOTE: Sexbolt has a finished head, take caution on drive fit
- • For device and trim location and function, see appropriate device and trim templates
TEMPLATE
W-4014-a
