Falcon Sexbolt Preparation Metal Door Template 108588
Open the original PDF document
View PDF
| APPLICATION | DEVICE SERIES |

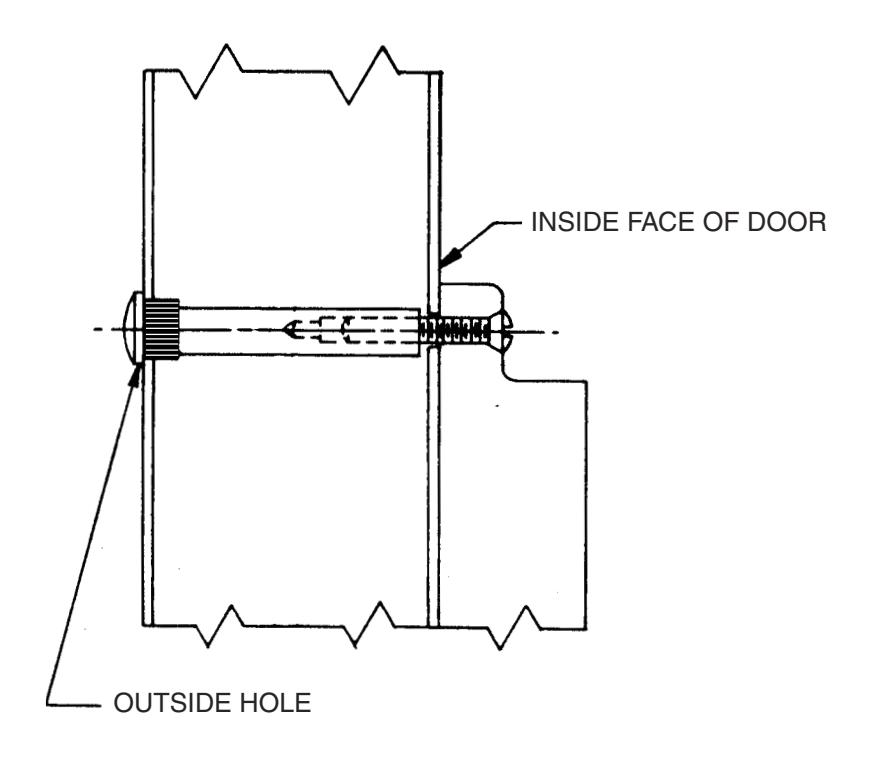

OUTSIDE HOLE
DIAMETER |
INSIDE HOLE
DIAMETER |
|---|---|---|---|
| Active Head Mounting | 17 Series | C" | >\cx" |
| 18 Series | C" | M\cx" | |
| 19 Series | C" | >\cx" | |
| XX Series | C" | M\cx" | |
| 24 Series | ZC\cx" | B\zn" | |
| 25 Series | ZC\cx" | B\zn" | |
| End Cap Mounting Bracket | 17, 18 and 19 Series | C" | >\cx" |
| 24 and 25 Series | ZC\cx" | B\zn" | |
| Inactive Head Mounting | XX Series | C" | M\cx" |
| Vertical Latches (Top and Bottom) | 17, 18 and 19 Series | C" | M\cx" |
| 24 and 25 Series | ZC\cx" | B\zn" | |
| Bottom Bolt Guide (V2 only) | 17, 18, 19 and XX Series | C" | M\cx" |
| 24 and 25 Series | ZC\cx" | B\zn" |
TEMPLATE
T-4014-a
