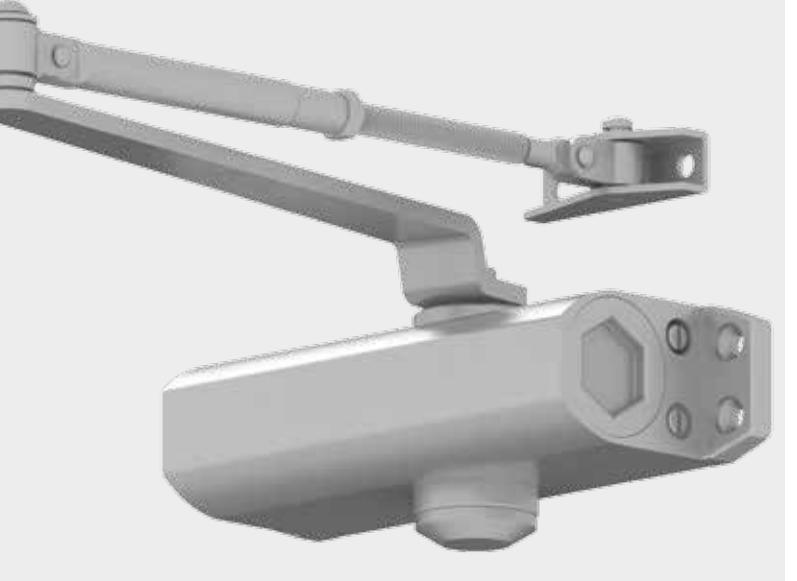

SC90A Series

Light-duty, Grade 3 door control

Overview

Designed for light-duty residential and interior applications, the SC90A Series closers deliver a smooth and reliable performance. A pre-set spring size provides easy installation. The closer has three mounting options and is non-handed for left- and right-swinging doors for versatility. A single-piece cast aluminum body minimizes leaks, the most common door control failure. The SC90A is another powerful choice for your light-duty application at a solid price.

Features and benefits:

§ Single piece cast aluminum body
§ Fixed sizes 1, 3, & 4
§ Separate adjustable general speed, latch speed and backcheck
§ Non-handed for left-or right-swinging doors
§ Heat treated pinion and steel piston
§ Comes standard with adjustable backcheck; optional no backcheck is available
§ SC93A/94A universal screw pack, now including SRTs screws
§ Meets ANSI A117.1
§ Listed ANSI/BHMA A156.4, Grade 3
§ The SC93A/94A cover is UL approved for use in fire rated assemblies
§ The SC93A/94A is UL listed and compliant to UL10C and UBC 7-2 (1997)
§ 10-year warranty

The right arms and accessories for every job

The non-handed design of the SC90A Series, paired with its mounting position versatility, means you can install this closer just about anywhere depending on the needs of the door opening. A host of arm types and accessories make it easy to fit the demands of a variety of applications.

SC91A arms and accessories: SC93A/94A arms and accessories:

Regular arm, SC91A-3077PA

Non-handed arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Regular arm, SC90-3077PA

Hold-open arm, SC91A-3049PA

Optional, non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a

Top jamb plate, SC90A-18

Required for top jamb mounting where head frame is less than 1 3⁄4" (44mm) or flush ceiling conditions exists.

parallel arm configuration

Parallel arm plate, SC90A-18PA

Required for parallel arm mounting where top rail is less than 45⁄8" (117 mm), measured from the stop. Plate requires 21 ⁄8" (54mm) minimum top rail measured from stop.

Pinion cap, SC91A

Available for replacement with SC91A.

Slim cover

Optional non-handed, slim plastic cover.

Pinion cap, SC90A

Available for replacement with SC93A/94A.

Available finishes

689 Aluminum

695 Dark bronze
