SC80A Series

FALCON ®

Installation Instructions

ALL PLATES

FAST	ENERS	DOOR / FRAME	DRILL SIZES
PLATE	1/4-20 machine	METAL	Drill: #7 Tap: 1/4-20
	#14 wood	WOOD	1/8"
	self-reaming, & tapping (SRT)	METAL	1/8"
CLOSER BODY	1/4-20 machine	PLATE	N/A

CAUTION

Improper installation or regulation may result in personal injury or property damage. Follow all instructions carefully. For questions, call Falcon at: 1-877-671-7011

ADVERTENCIA

Una installación o un ajuste incorrectos pueden resultar en daño personal o material. Siga bien todas las instrucciones. Para más informaciones, Ilama a Falcon al: 1-877-671-7011

DANGER

Une installation ou un réglage inadéquats peuvent entraîner des blessures ou des dommages. Veuillez suivre toutes les instructions avec soin. Pour plus de renseignements, composez le: 1-877-671-7011

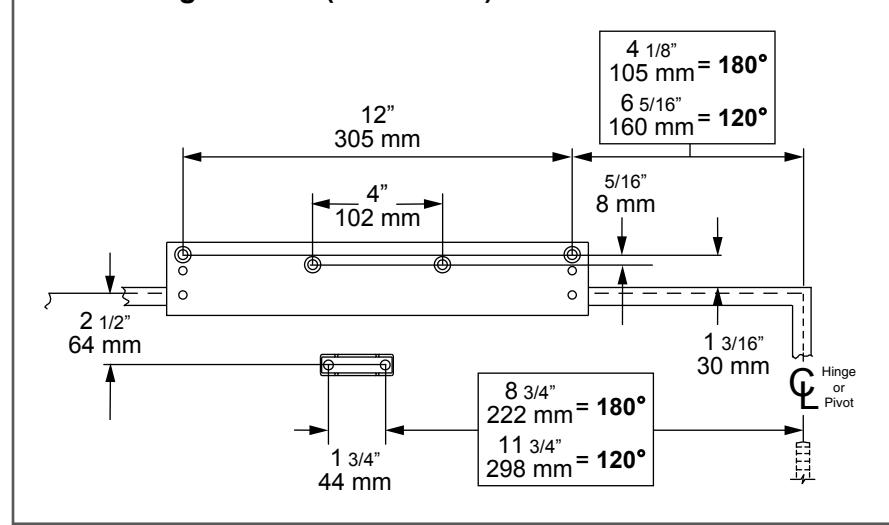

SC80A Regular Arm (TOP JAMB) DROP PLATE: PERMITS 180° MAXIMUM OPENING

SC80A-18 DROP PLATE

PUSH SIDE MOUNT ON: PUSH SIDE MOUNT ON: SC80A-18FC DROP PLATE

• 1. Use Standard instruction sheet for installation sequence and closer adjustments.
• 2. Backcheck faces away from the hinge edge.
• 3. Use shorter machine screws to attach cylinder to drop plate.

RIGHT HAND DOOR ILLUSTRATED. Same dimensions apply for Left Hand Door measured from hinge side.

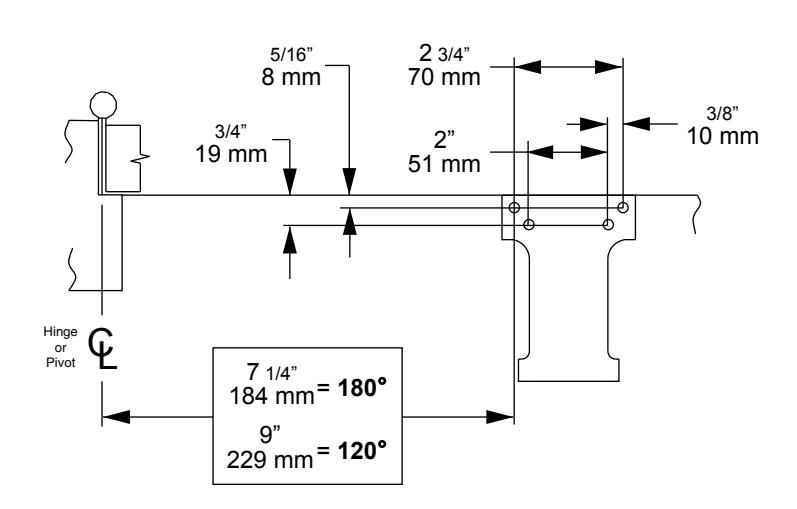

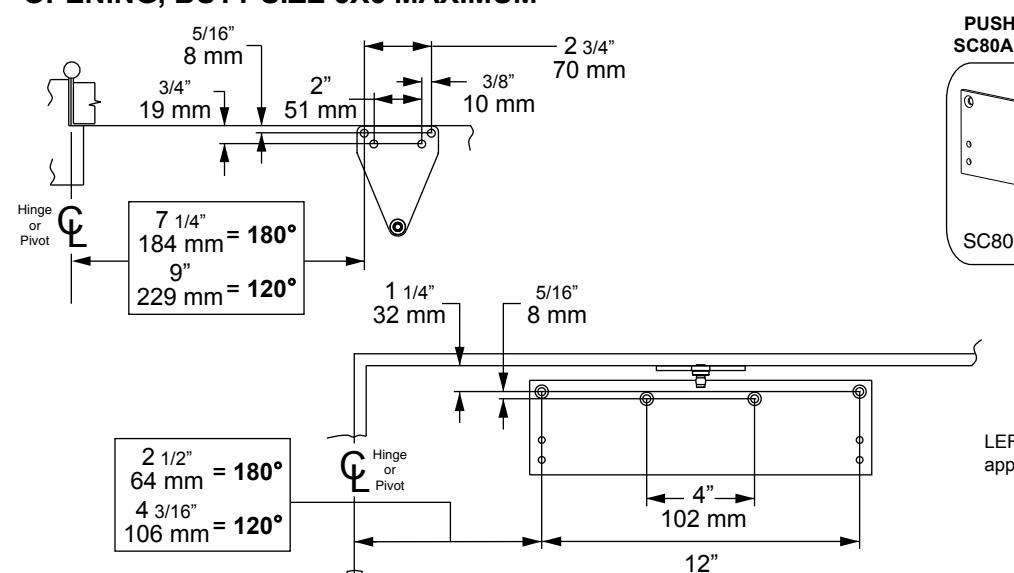

SC80A Regular Arm (PARALLEL ARM DOOR MOUNT) DROP PLATE: PERMITS 180° MAXIMUM OPENING. BUTT SIZE 5X5 MAXIMUM

305 mm

PUSH SIDE MOUNT ON: PUSH SIDE MOUNT ON: SC80A-18PA DROP PLATE SC80A-18PAFC DROP PLATE

SC80A-18PA SC80A-18PAFC

General Notes:

• 1. Use Standard instruction sheet for installation sequence and closer adjustments.
• 2. Backcheck faces toward the hinge edge.
• 3. Use shorter machine screws to attach cylinder to drop plate.

LEFT HAND DOOR ILLUSTRATED. Same dimensions apply for Right Hand Door measured from hinge side.

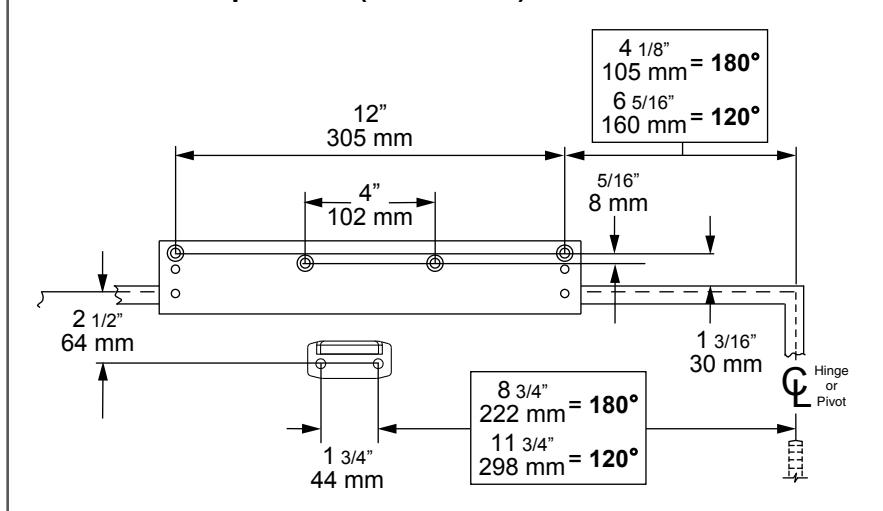

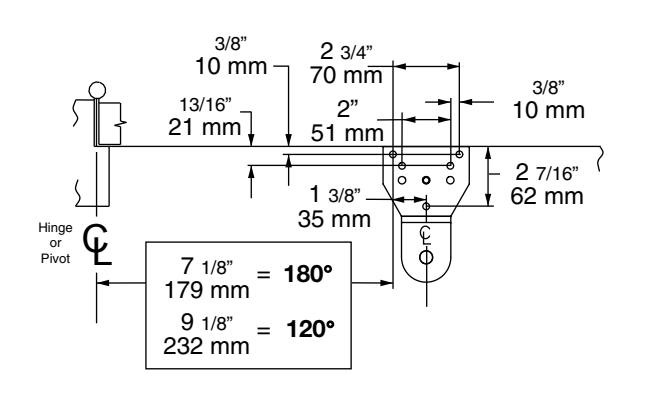

SC80A Hold-Open Arm (TOP JAMB) DROP PLATE: PERMITS 180° MAXIMUM OPENING

PUSH SIDE MOUNT ON: SC80A-18 DROP PLATE

PUSH SIDE MOUNT ON: SC80A-18FC DROP PLATE

General Notes:

• 1. Use Standard instruction sheet for installation sequence and closer adjustments.
• 2. Backcheck faces <u>away</u> from the hinge edge.
• 3. Use shorter machine screws to attach cylinder to drop plate.

RIGHT HAND DOOR ILLUSTRATED. Same dimensions apply for Left Hand Door measured from hinge side.

SEE FIRST PAGE FOR FASTENERS & CAUTION

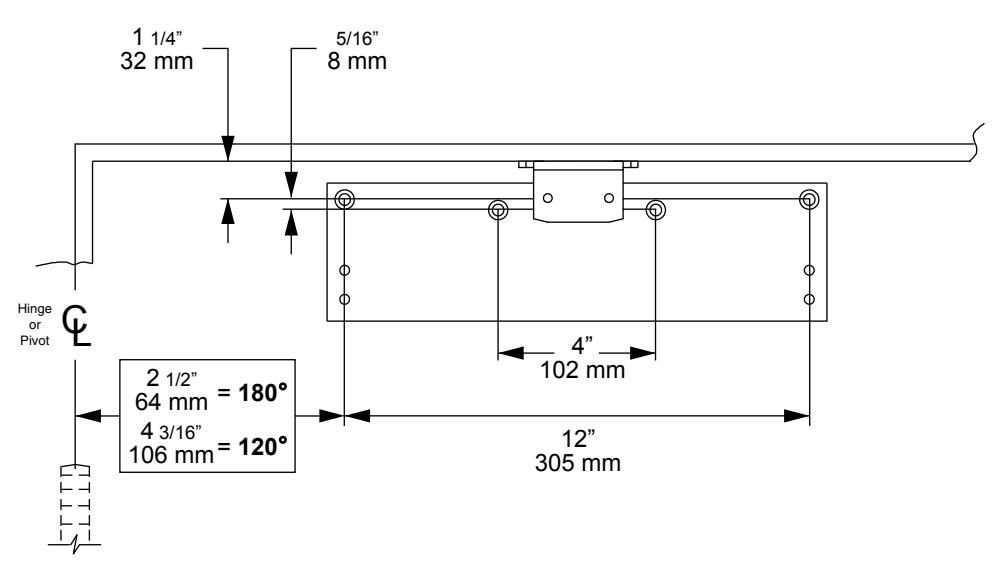

SC80A Hold-Open Arm (PARALLEL ARM DOOR MOUNT) DROP PLATE: PERMITS 180° MAXIMUM OPENING, BUTT SIZE 5X5 MAXIMUM

PUSH SIDE MOUNT ON: PUSH SIDE MOUNT ON: SC80A-18PA DROP PLATE SC80A-18PAFC DROP PLATE

General Notes:

• Use Standard instruction sheet for installation sequence and closer adjustments.
• 2. Backcheck faces toward the hinge edge.
• 3. Use shorter machine screws to attach cylinder to drop plate.

LEFT HAND DOOR ILLUSTRATED. Same dimensions apply for Right Hand Door measured from hinge side.

SEE FIRST PAGE FOR FASTENERS & CAUTION

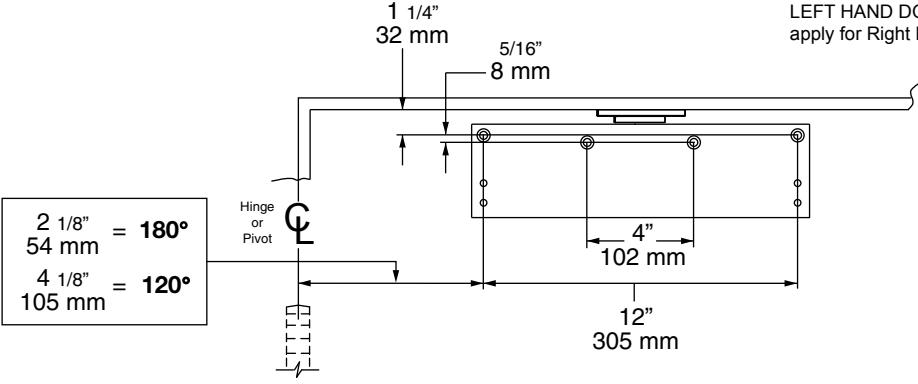

SC80A Heavy Duty Arm (PARALLEL ARM DOOR MOUNT) DROP PLATE: PERMITS 180° MAXIMUM OPENING, BUTT SIZE 5X5 MAXIMUM

PUSH SIDE MOUNT ON: PUSH SIDE MOUNT ON: SC80A-18PA DROP PLATE SC80A-18PAFC DROP PLATE

General Notes:

• Use Heavy Duty instruction sheet for installation sequence and closer adjustments.
• 2. Backcheck faces toward the hinge edge.
• 3. Use shorter machine screws to attach cylinder to drop plate.

LEFT HAND DOOR ILLUSTRATED. Same dimensions apply for Right Hand Door measured from hinge side.

SEE FIRST PAGE FOR FASTENERS & CAUTION

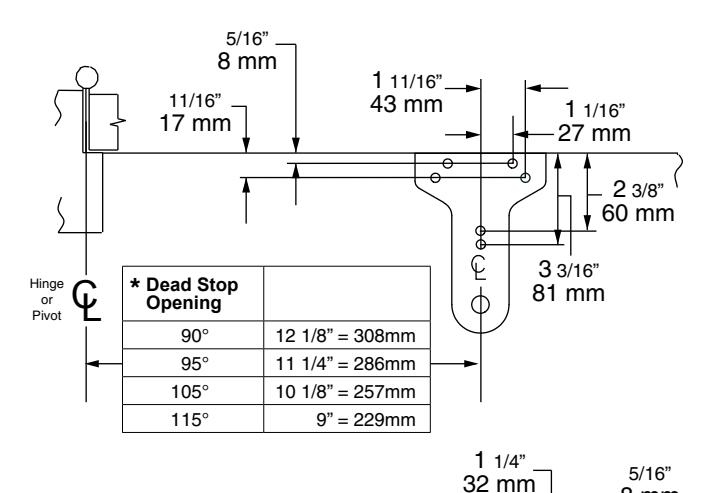

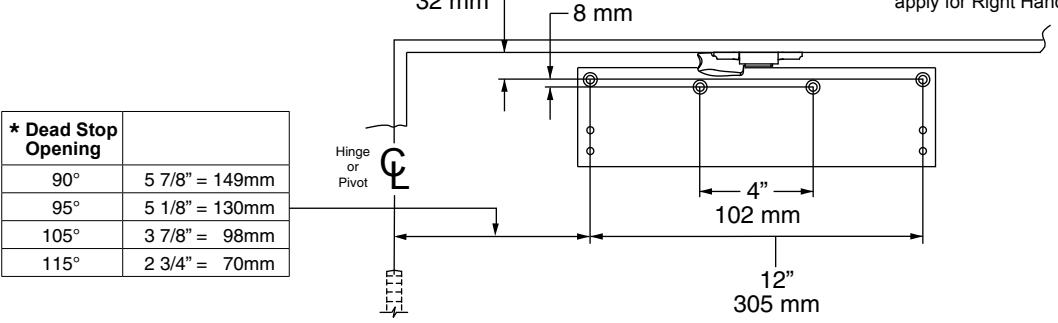

SC80A Spring-N-Stop (or w/ SNS Hold-Open) Arm (PARALLEL ARM DOOR MOUNT) DROP PLATE: PERMITS 115° MAXIMUM OPENING, BUTT SIZE 5x5 MAXIMUM

PUSH SIDE MOUNT ON: PUSH SIDE MOUNT ON: SC80A-18PA DROP PLATE SC80A-18PAFC DROP PLATE

General Notes:

• Use Spring-N-Stop instruction sheet for installation sequence and closer adjustments.
• 2. Backcheck faces toward the hinge edge.
• ★ 3. Hold-open point is 5° less than dead stop opening.
  • Use shorter machine screws to attach cylinder to drop plate.

LEFT HAND DOOR ILLUSTRATED. Same dimensions apply for Right Hand Door measured from hinge side.

SEE FIRST PAGE FOR FASTENERS & CAUTION

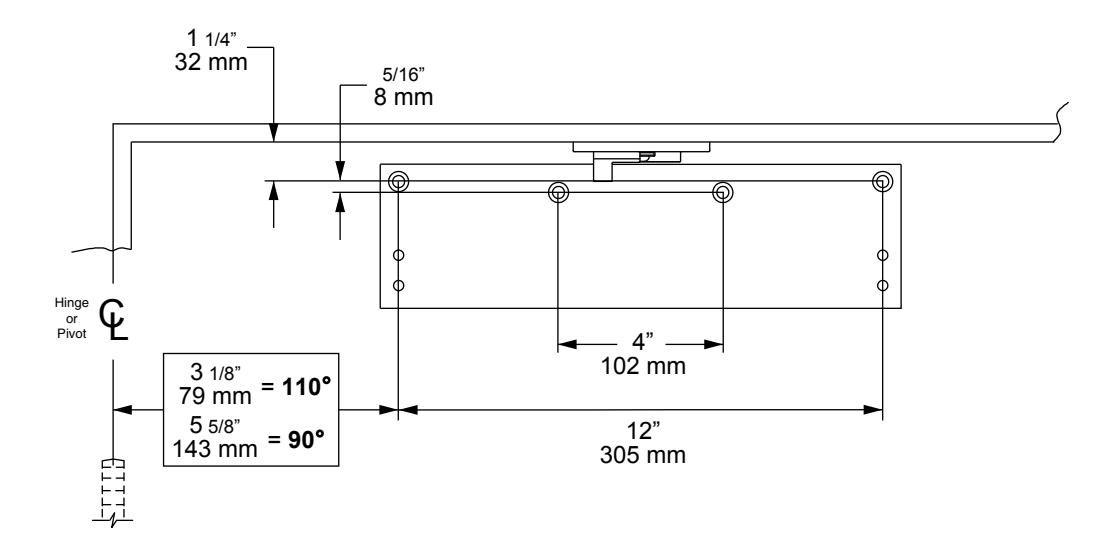

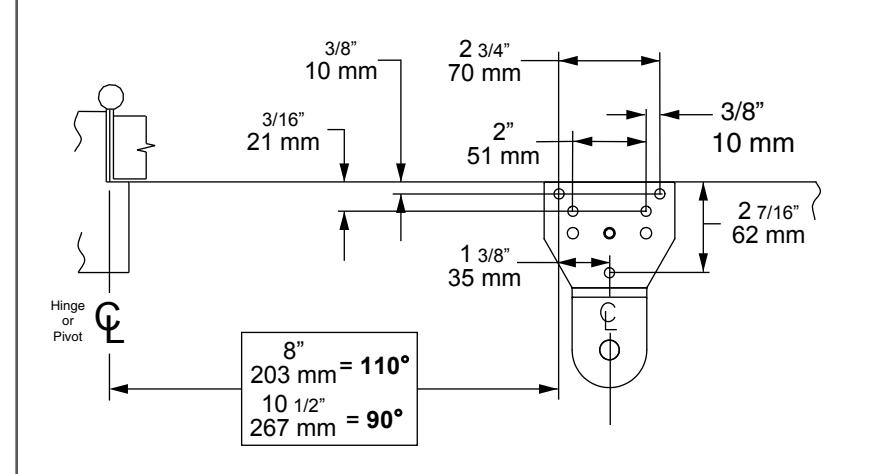

SC80A Dead Stop (or with DS Hold-Open) Arm (PARALLEL ARM DOOR MOUNT) DROP PLATE PERMITS 110° MAXIMUM OPENING, BUTT SIZE 5x5 MAXIMUM

PUSH SIDE MOUNT ON: PUSH SIDE MOUNT ON: SC80A-18PA DROP PLATE SC80A-18PAFC DROP PLATE

General Notes:

• Use Dead Stop & Dead Stop Hold-Open instruction sheet for installation sequence and closer adjustments.
• 2. Backcheck faces toward the hinge edge.
• Hold-open point is 4° less than dead stop point.
• 4. Use shorter machine screws to attach cylinder to drop plate.

LEFT HAND DOOR ILLUSTRATED. Same dimensions apply for Right Hand Door measured from hinge side.

SEE FIRST PAGE FOR FASTENERS & CAUTION

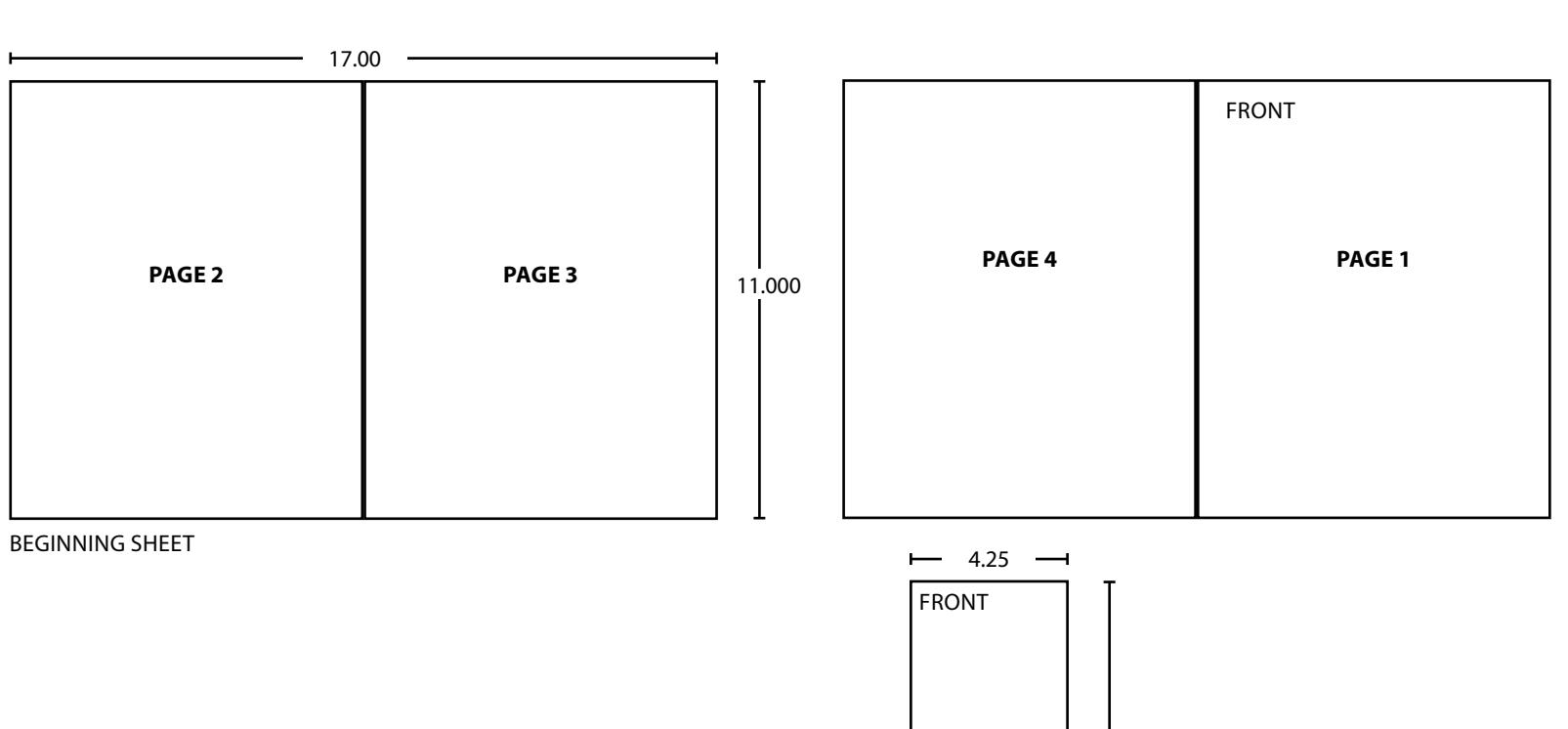

	FRONT
		11	.00
ļ	FOLDED SHEET		L

Additional Notes:
1. None
